Installation Procedure

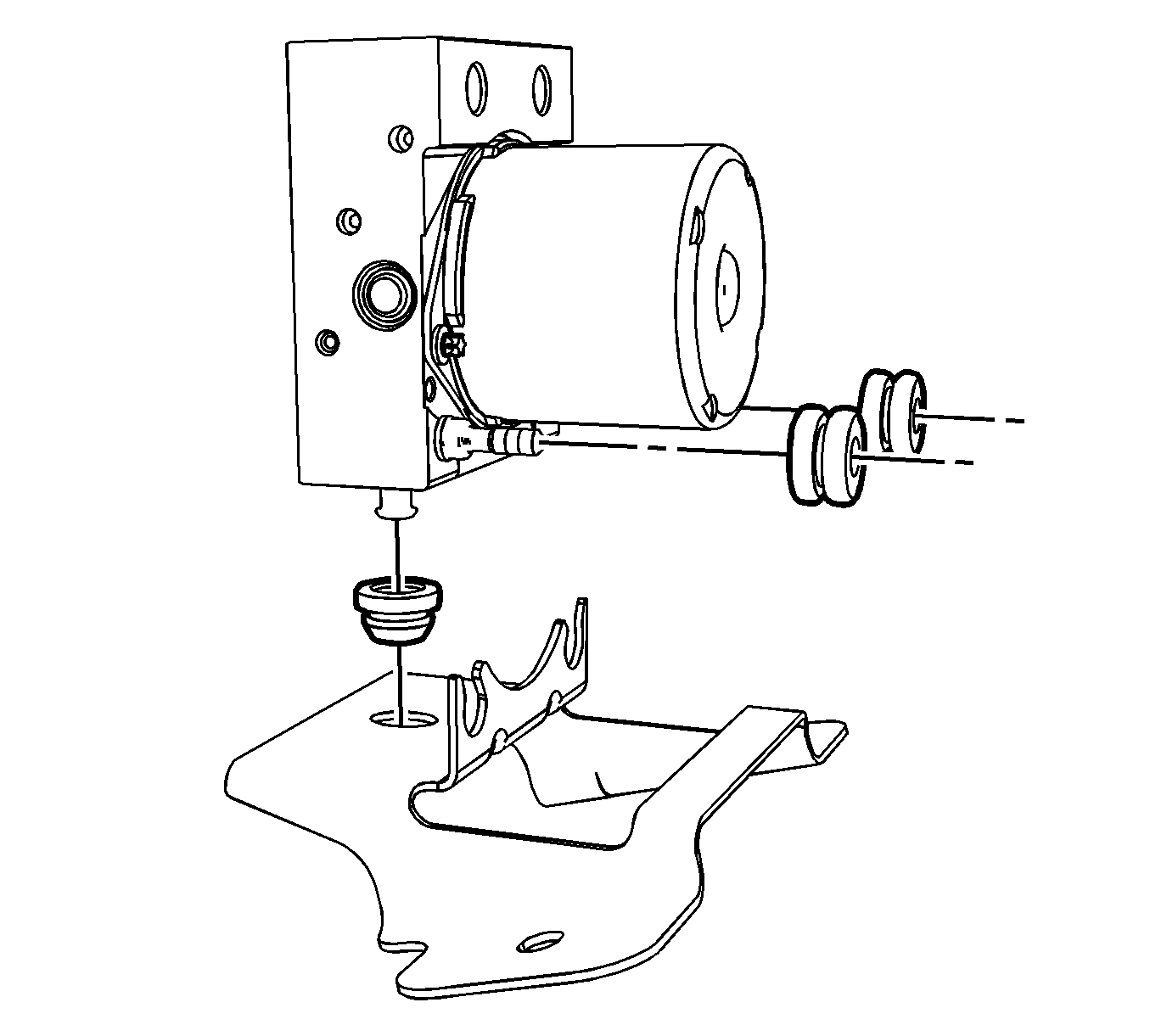

    Fig 1: BPMV Insulators
    GM1866321Courtesy of GENERAL MOTORS COMPANY
  1. Install the 2 BPMV insulators to the BPMV.

    Denatured alcohol may be used as an assembly aid to install the insulators.

  2. Install the lower BPMV insulator to the bracket.

    Denatured alcohol may be used as an assembly aid to install the insulator.

  3. Carefully install the BPMV to the bracket.

    Denatured alcohol may be used as an assembly aid on the insulators to install the BPMV.

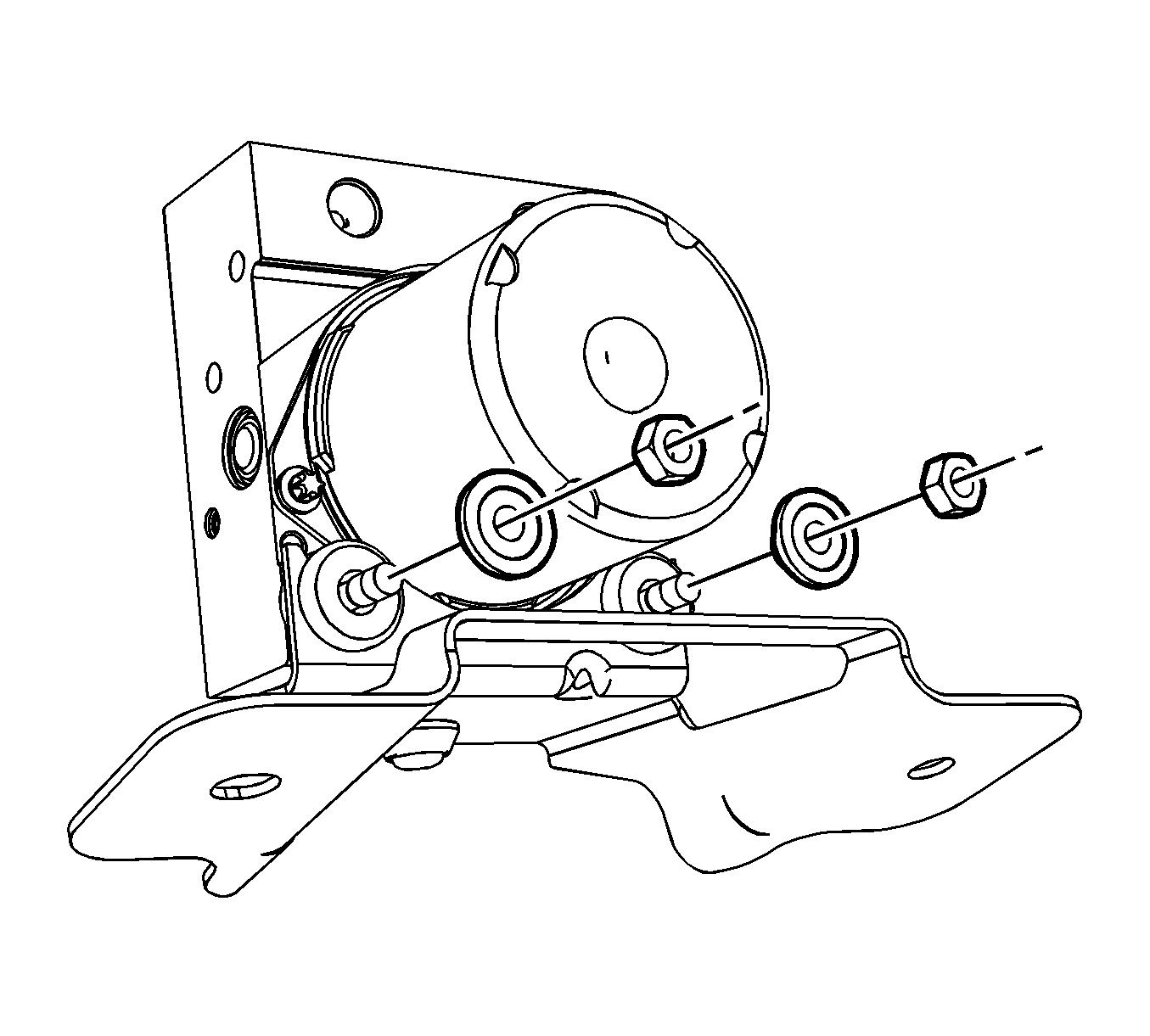

    4. Fig 2: BPMV Insulator Nuts & Washers
    GM1866319Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the 2 BPMV insulator washers and the 2 nuts.

    Tighten

    Tighten the nuts to 8 N.m (71 lb in).

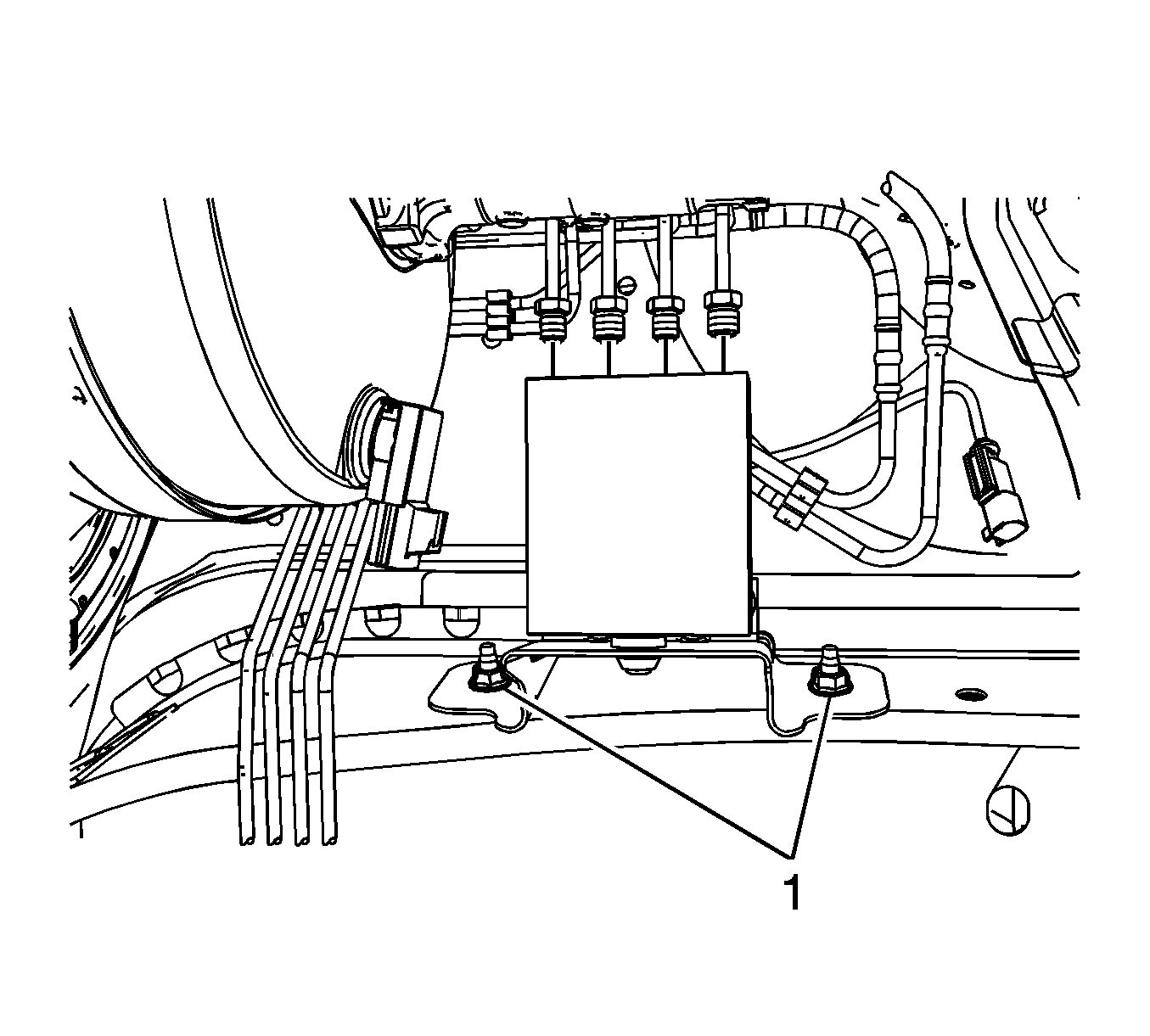

    5. Fig 3: BPMV Bracket Nuts
    GM1866318Courtesy of GENERAL MOTORS COMPANY
  5. Install the BPMV and bracket assembly to the frame rail.
  6. Install the 2 BPMV bracket nuts (1).

    Tighten

    Tighten the nuts to 20 N.m (15 lb ft).

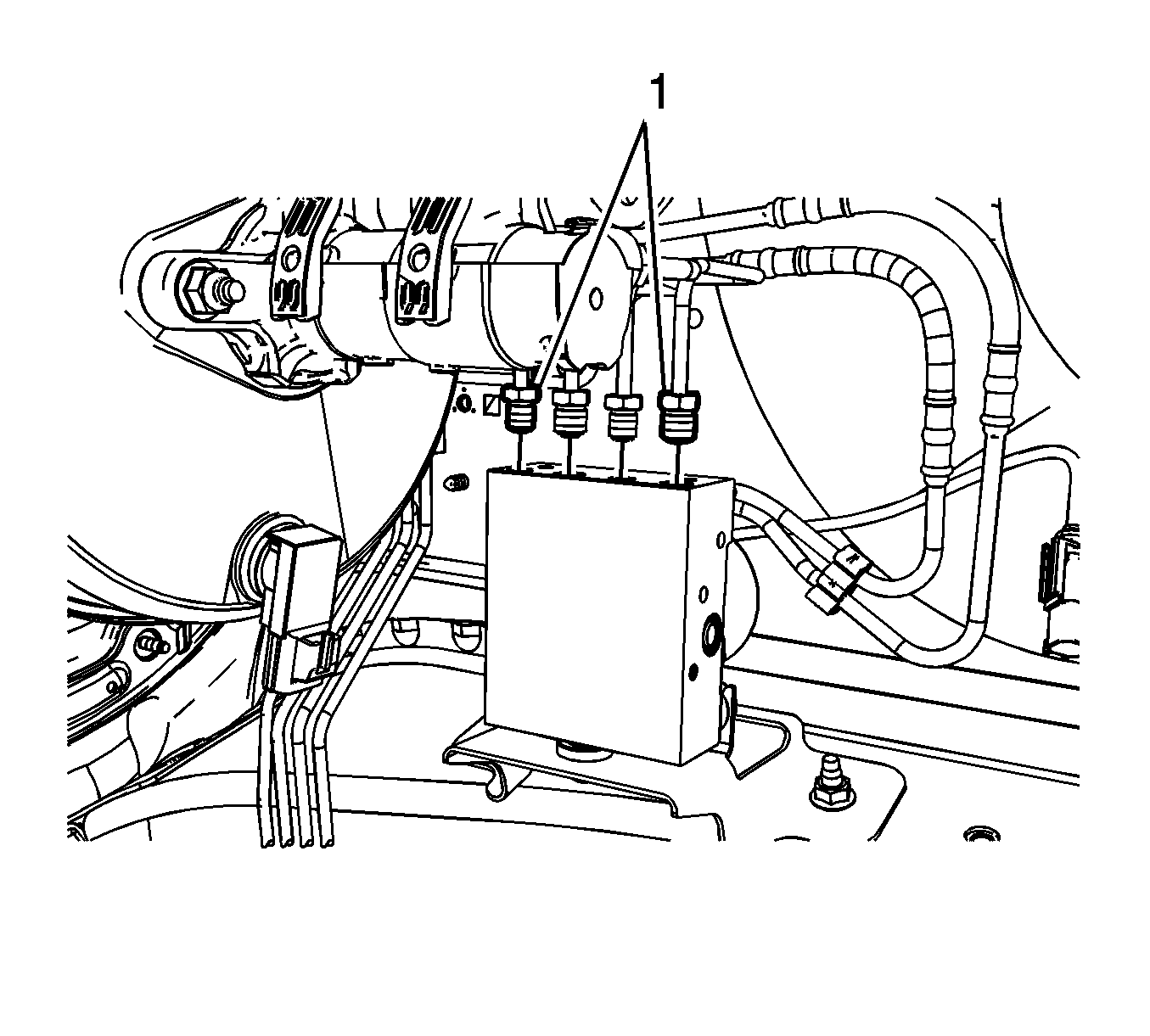

    7. Fig 4: BPMV Outlet Port Rear Brake Pipe Fittings
    GM1866316Courtesy of GENERAL MOTORS COMPANY
  7. Connect the BPMV outlet port rear brake pipe fittings (1).

    Tighten

    Tighten the fittings to 17 N.m (13 lb ft).

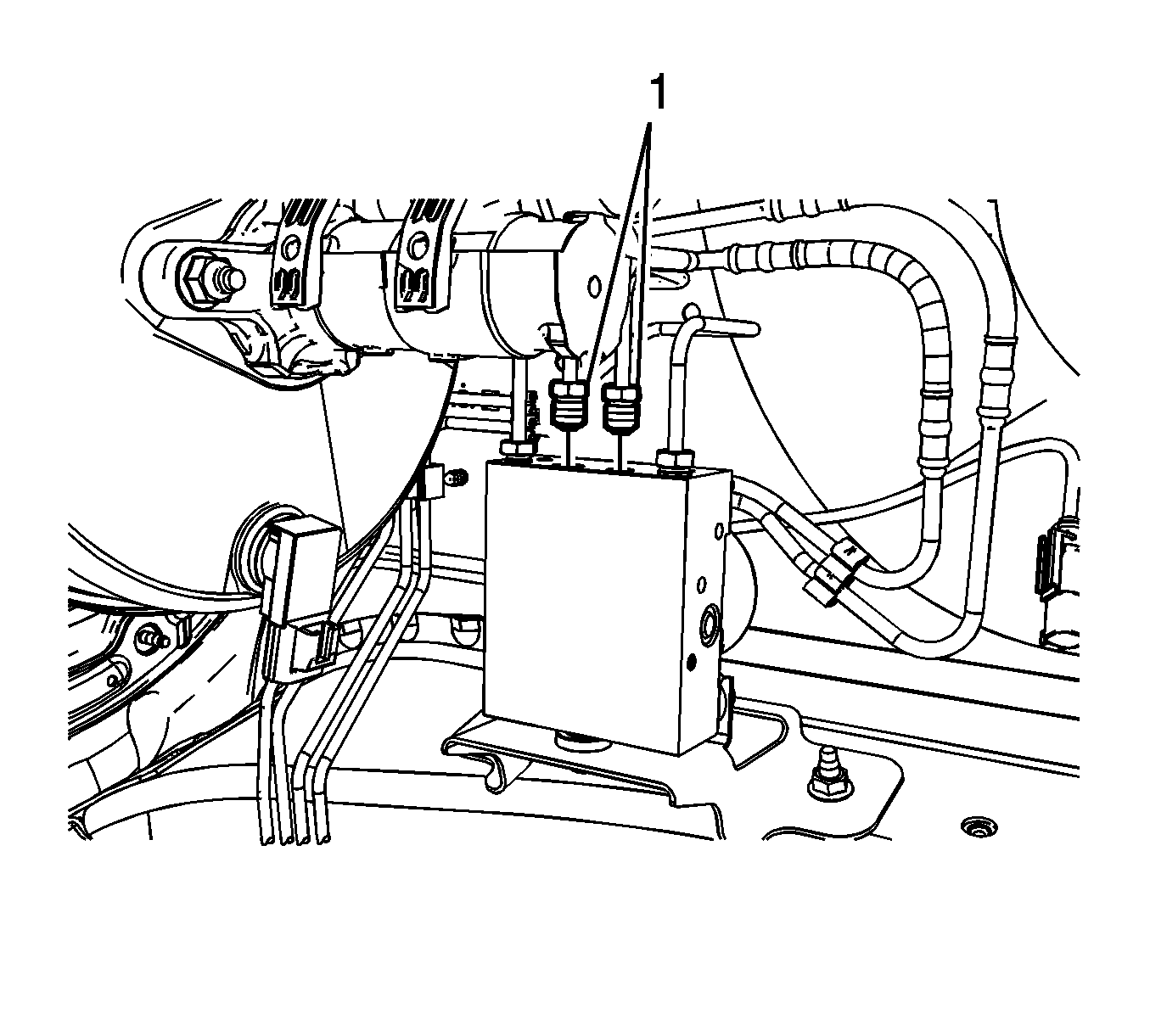

    8. Fig 5: BPMV Outlet Port Front Brake Pipe Fittings
    GM1866312Courtesy of GENERAL MOTORS COMPANY
  8. Connect the BPMV outlet port front brake pipe fittings (1).

    Tighten

    Tighten the fittings to 17 N.m (13 lb ft).

    9. Fig 6: Master Cylinder Inlet Brake Pipe Fittings
    GM1866311Courtesy of GENERAL MOTORS COMPANY
  9. Connect the master cylinder inlet brake pipe fittings (1).

    Tighten

    Tighten the fittings to 25 N.m (18 lb ft).

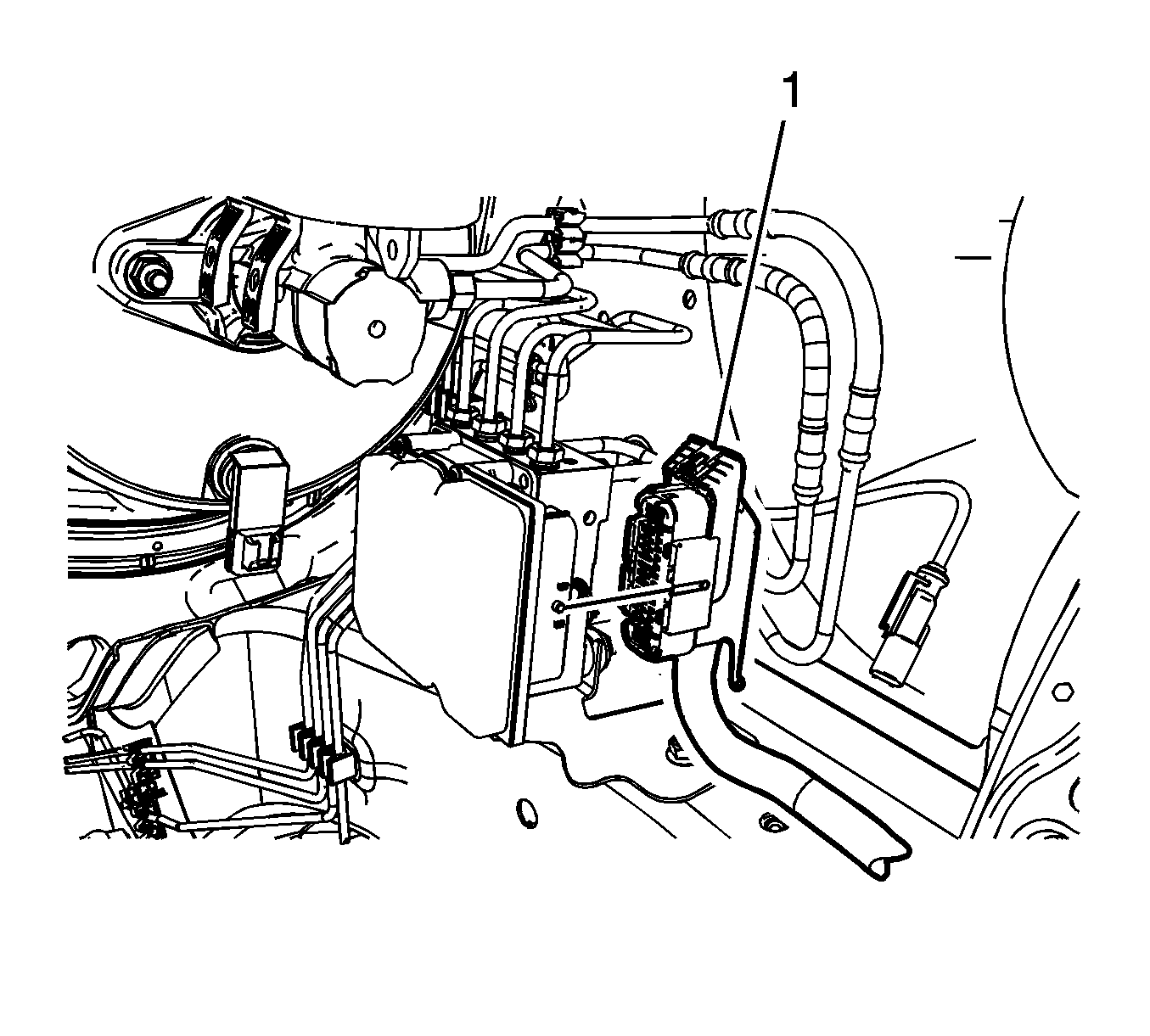

    10. Fig 7: Locating Electronic Brake Control Module Electrical Connector
    GM1866310Courtesy of GENERAL MOTORS COMPANY
  10. Connect the EBCM electrical connector (1).
  11. A new BPMV comes with both the primary and secondary circuits pre-filled with brake fluid. As long as the ignition key has not been cycled, only a base brake bleed is necessary.

    Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure) .

  12. Perform the Diagnostic System Check - Vehicle .
  13. Observe the brake pedal feel after performing the diagnostic system check. If the pedal now feels spongy, air may have been in, or may have been introduced into the primary circuit.

    If the pedal feels spongy, perform the Antilock Brake System Automated Bleed .

  14. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
