Installation Procedure

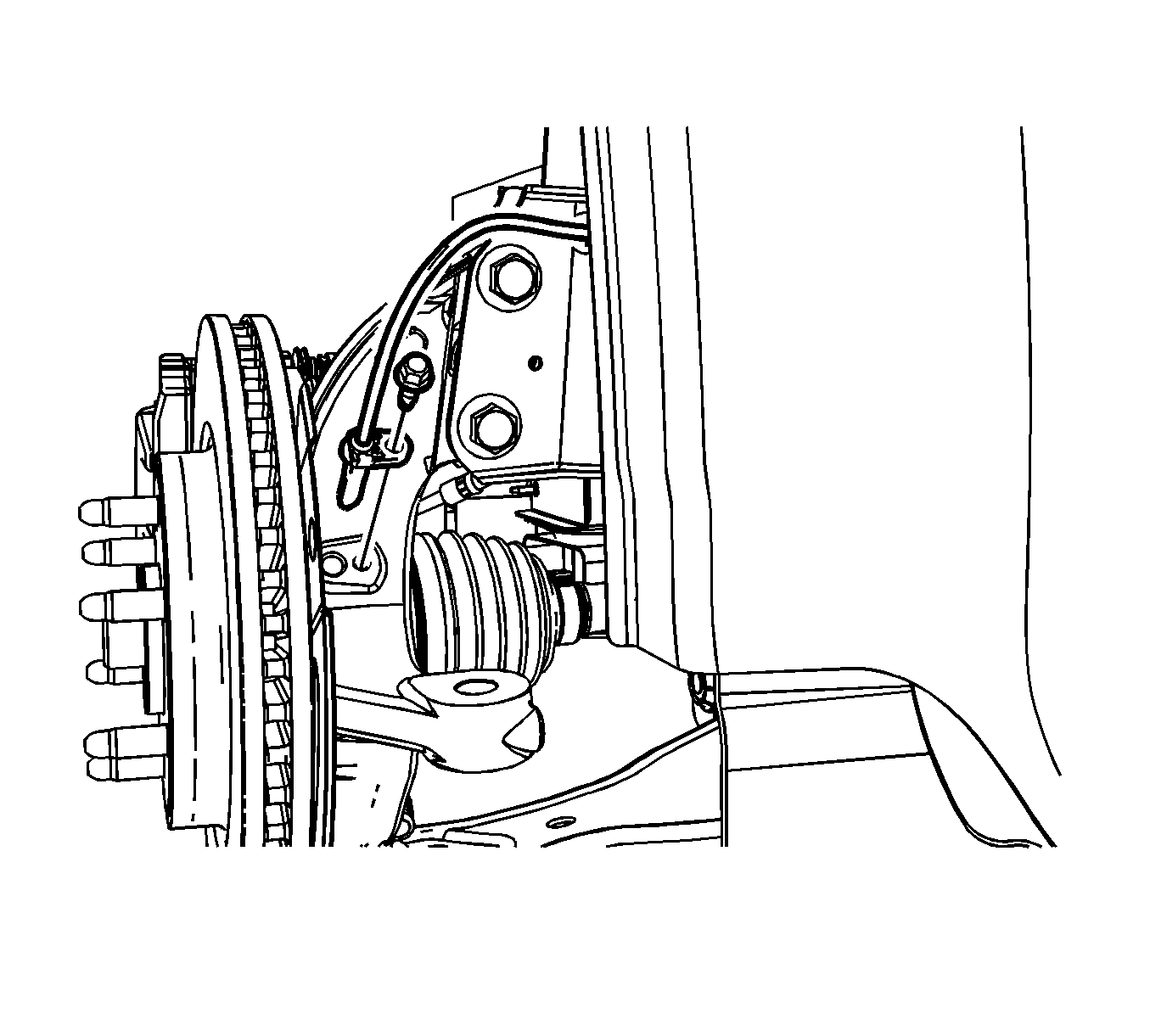

    Fig 1: Wheel Speed Sensor Bolt
    GM1861961Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor to the steering knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

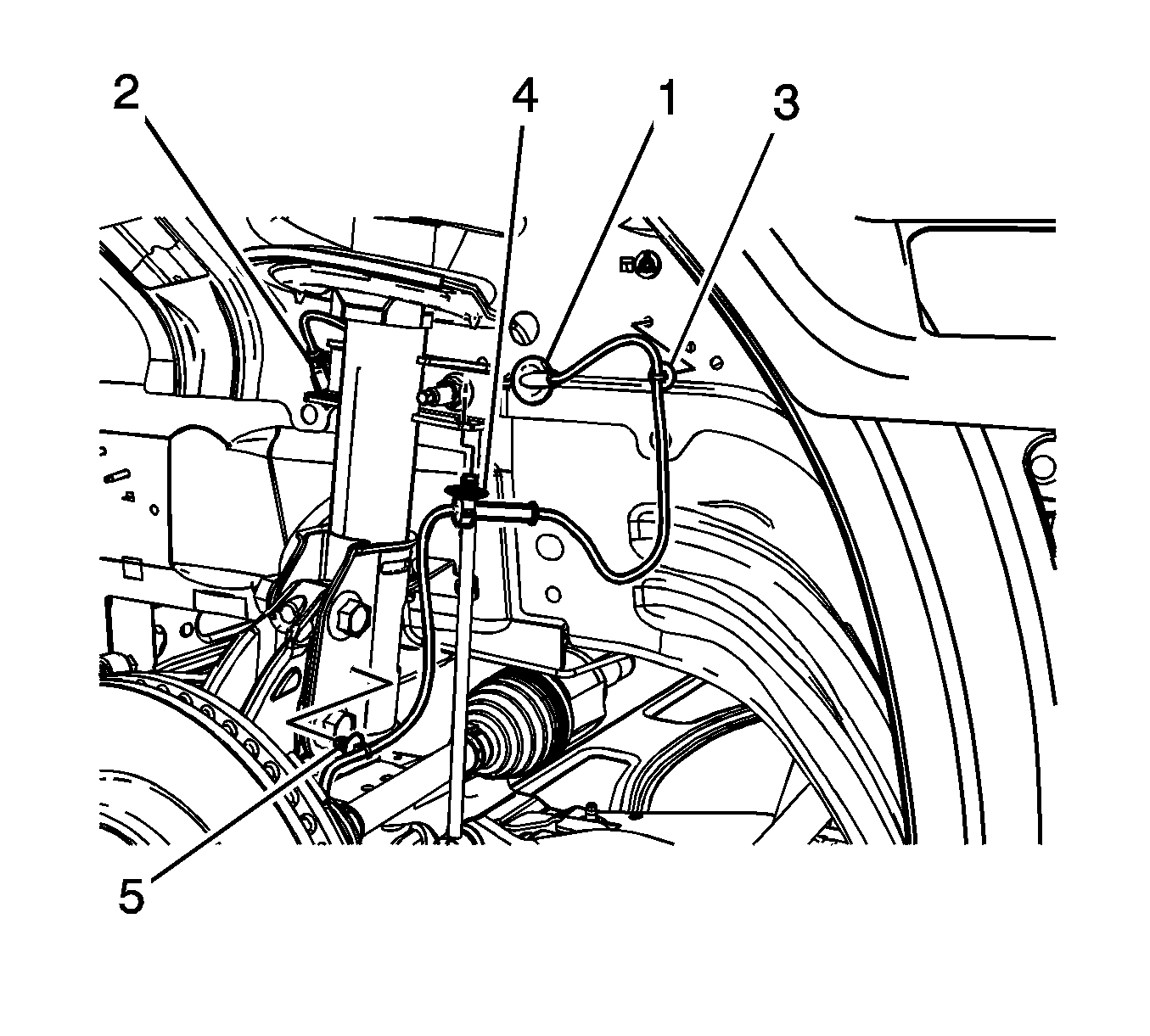

    3. Fig 2: Wheel Speed Sensor Wire, Wire Grommet, Connector & Harness Routing Clips
    GM1861960Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor wire harness routing clips (4) and (5) to the suspension strut.
  4. Insert the wheel speed sensor wire electrical connector (2) through the wheel house hole.
  5. Seat the wheel speed sensor wire harness grommet (1) to the wheel house.

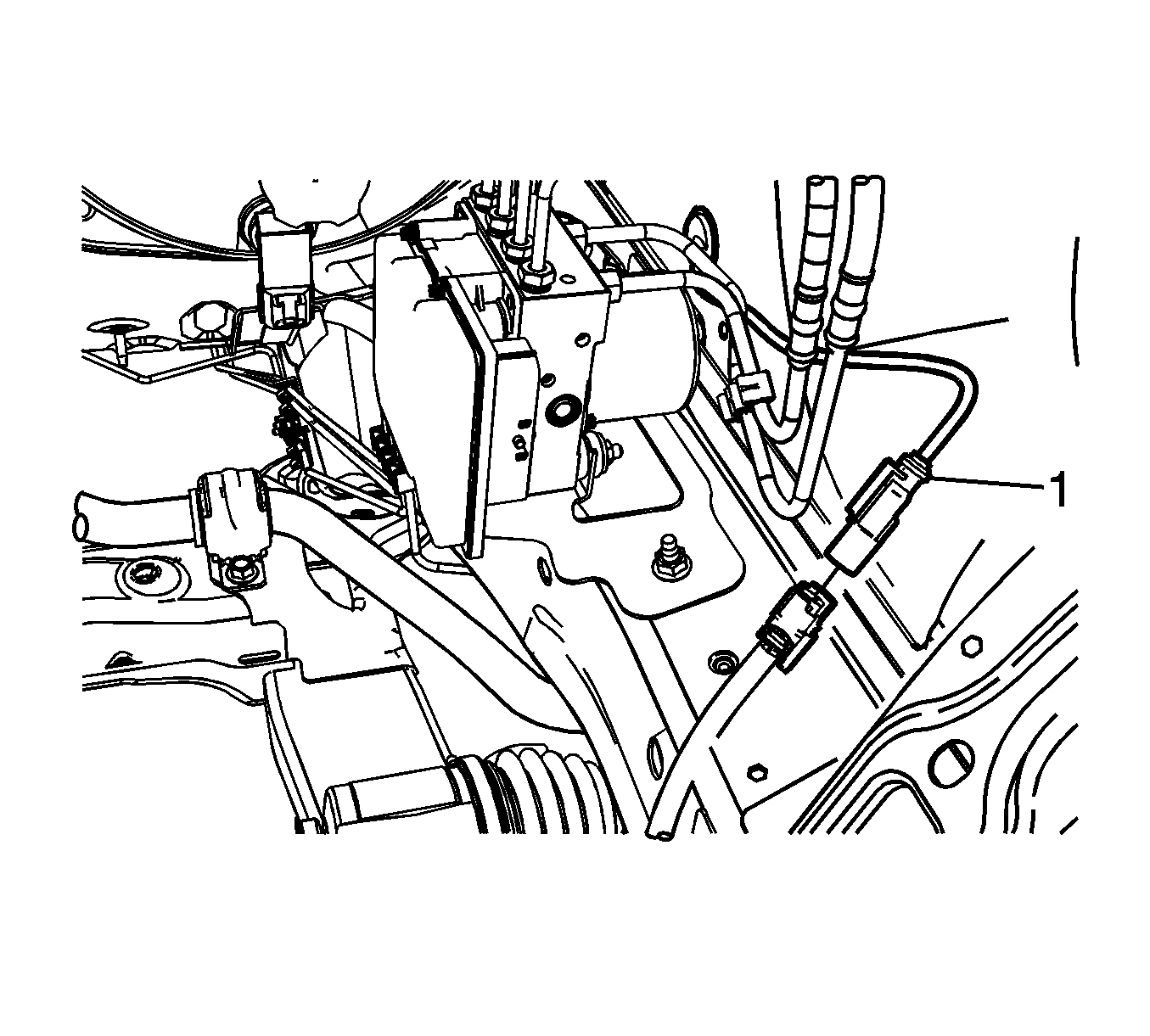

    6. Fig 3: Wheel Speed Sensor Electrical Connector
    GM1861959Courtesy of GENERAL MOTORS COMPANY
  6. Connect the wheel speed sensor electrical connector (1).
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. If replacing the right front wheel speed sensor, connect the battery positive junction block cables. Refer to Battery Positive Junction Block Cable Replacement .
  9. If replacing the left front wheel speed sensor, install the air cleaner element. Refer to Air Cleaner Element Replacement .
  10. Perform the Diagnostic System Check - Vehicle .
