Installation Procedure

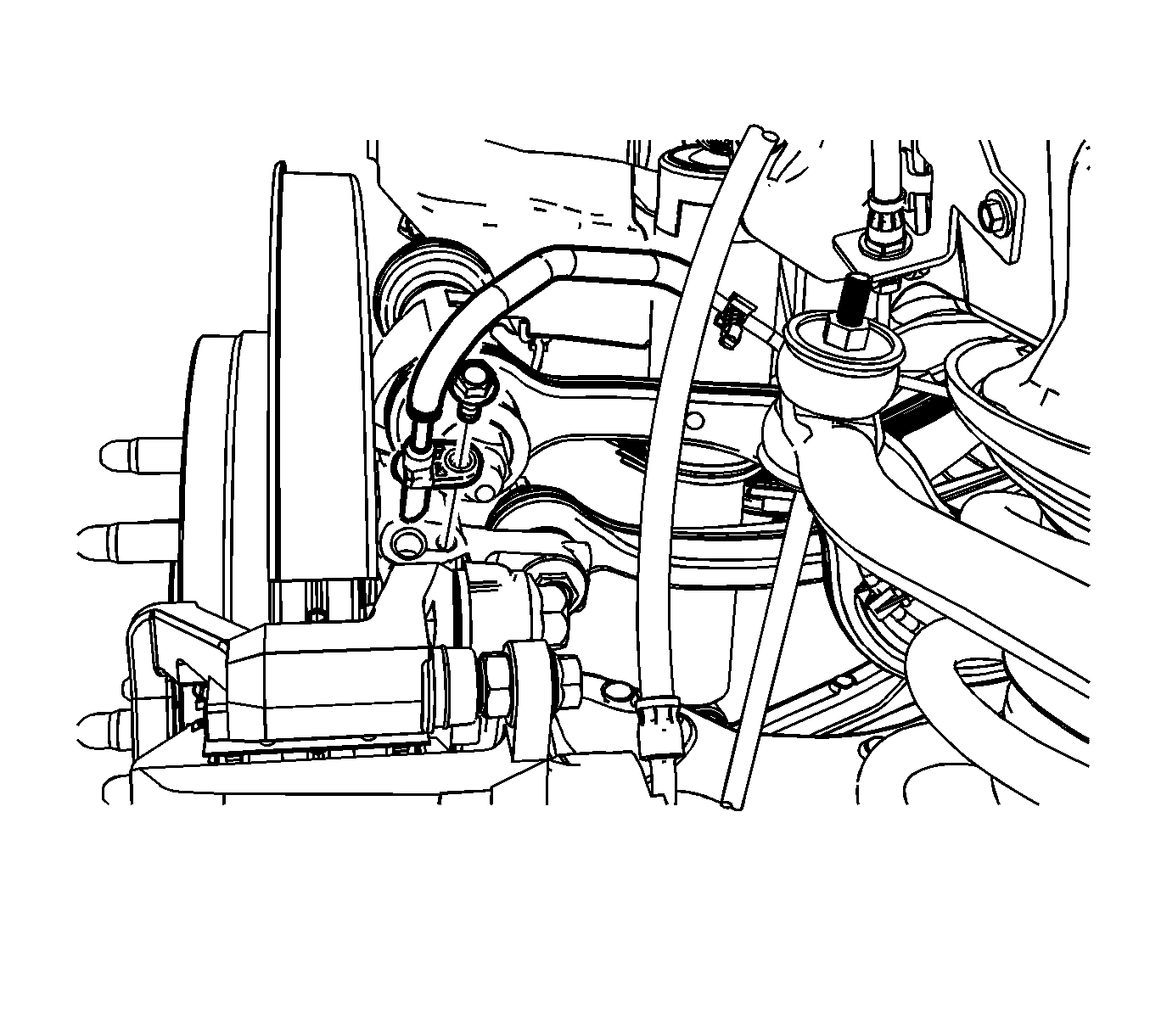

    Fig 1: Wheel Speed Sensor Bolt
    GM1861969Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor to the wheel knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

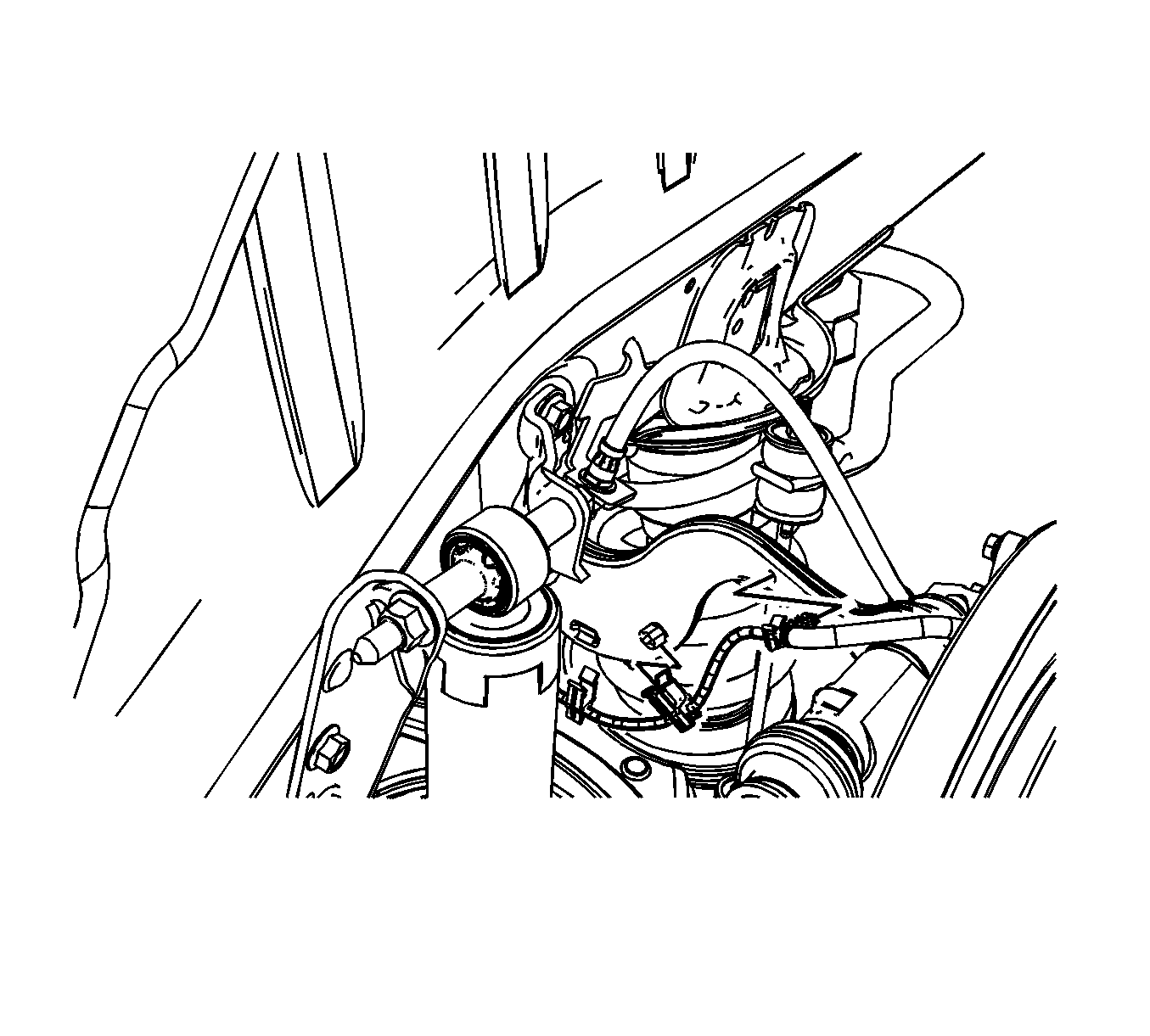

    3. Fig 2: Wheel Speed Sensor Wire Harness Routing Clip
    GM1861966Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor wire harness routing clips to the upper suspension link.

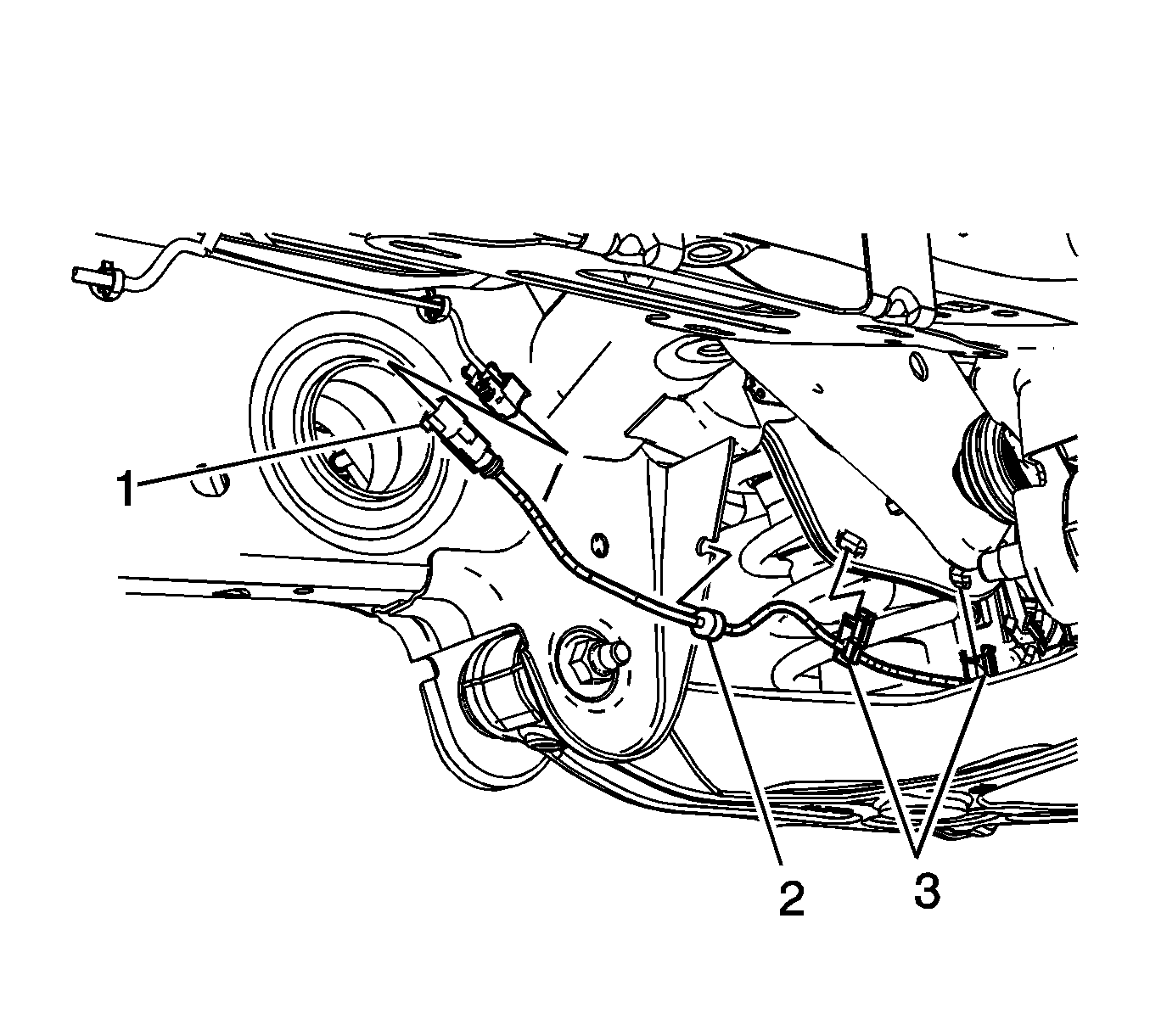

    4. Fig 3: Wheel Speed Sensor Electrical Connector
    GM1861964Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor wire harness routing clips (3) to the upper suspension link.
  5. Install the wheel speed sensor wire harness grommet (2) to the lower control arm bracket.
  6. Connect the wheel speed sensor electrical connector (1).
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
