Accessory AC and DC Power Control Module Replacement

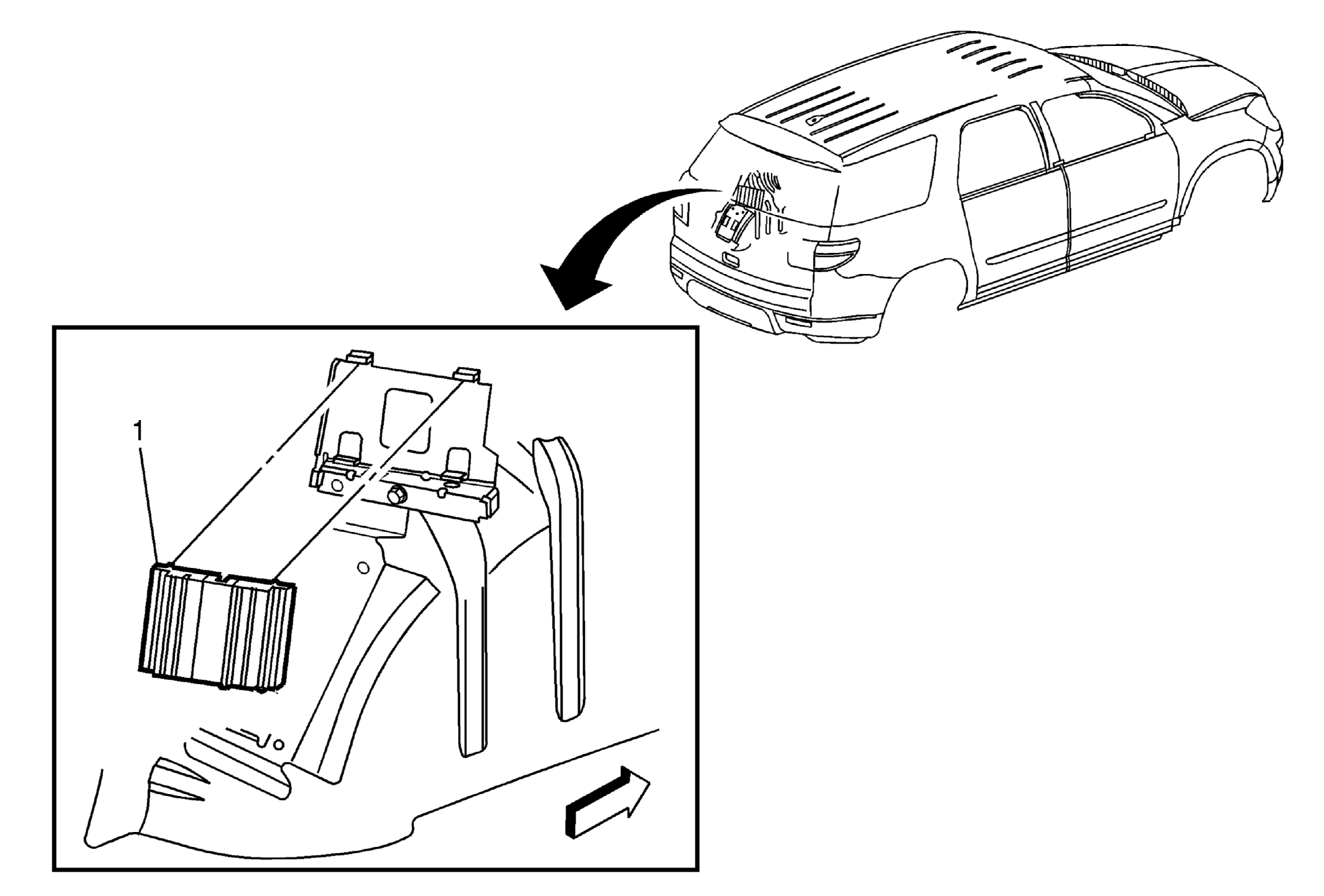

Fig 1: Accessory AC And DC Power Control Module
GM2730490Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
1 Accessory AC/DC Power Control Module Assembly

Procedure

  1. Disconnect the electrical connections.
  2. Remove the jack assembly.
