Installation Procedure

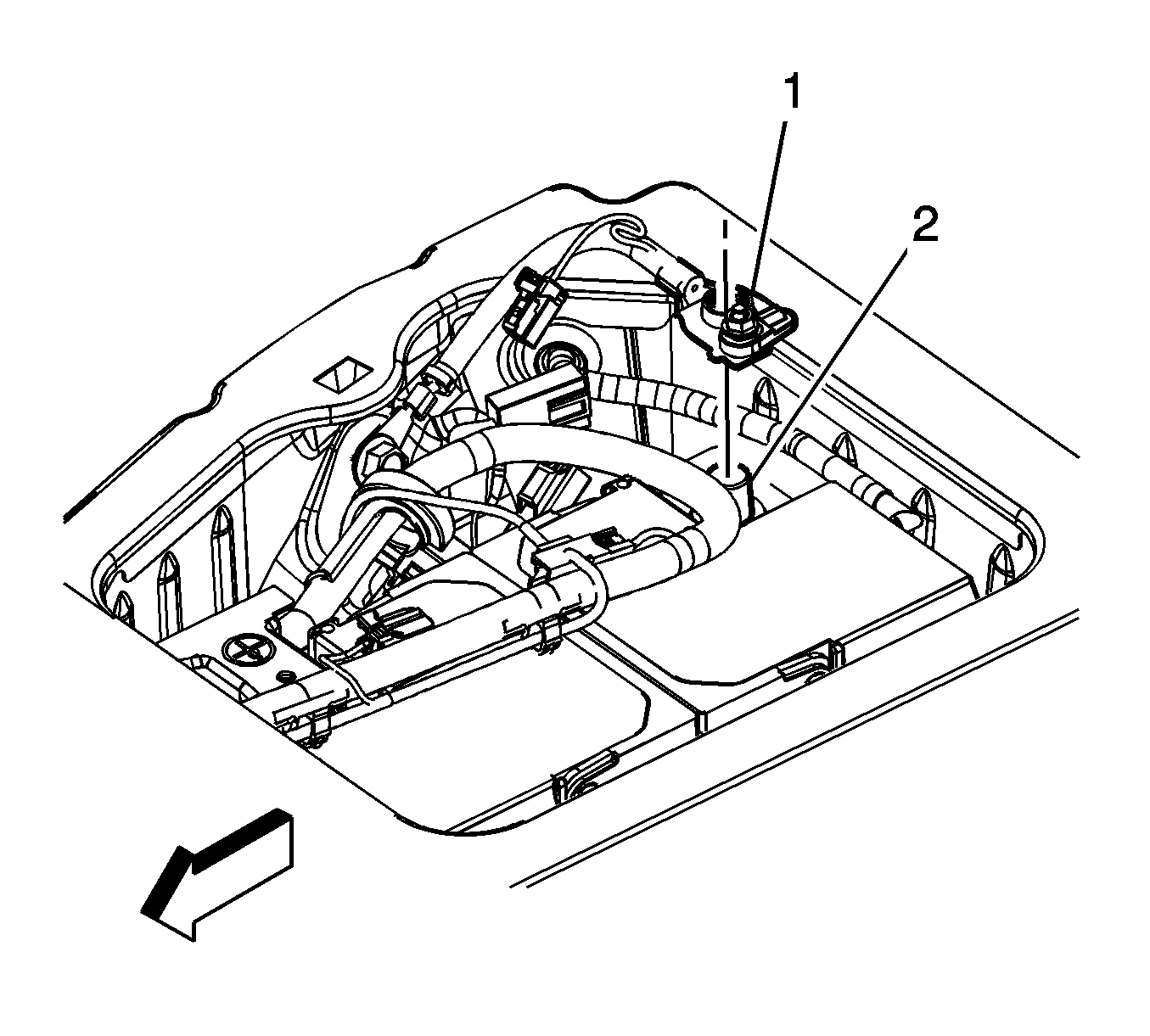

    Fig 1: Negative Battery Cable Terminal & Nut
    GM1860912Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the negative battery cable clamp onto the battery negative post (2) and tighten the nut (1) to 9 N.m (80 lb in).

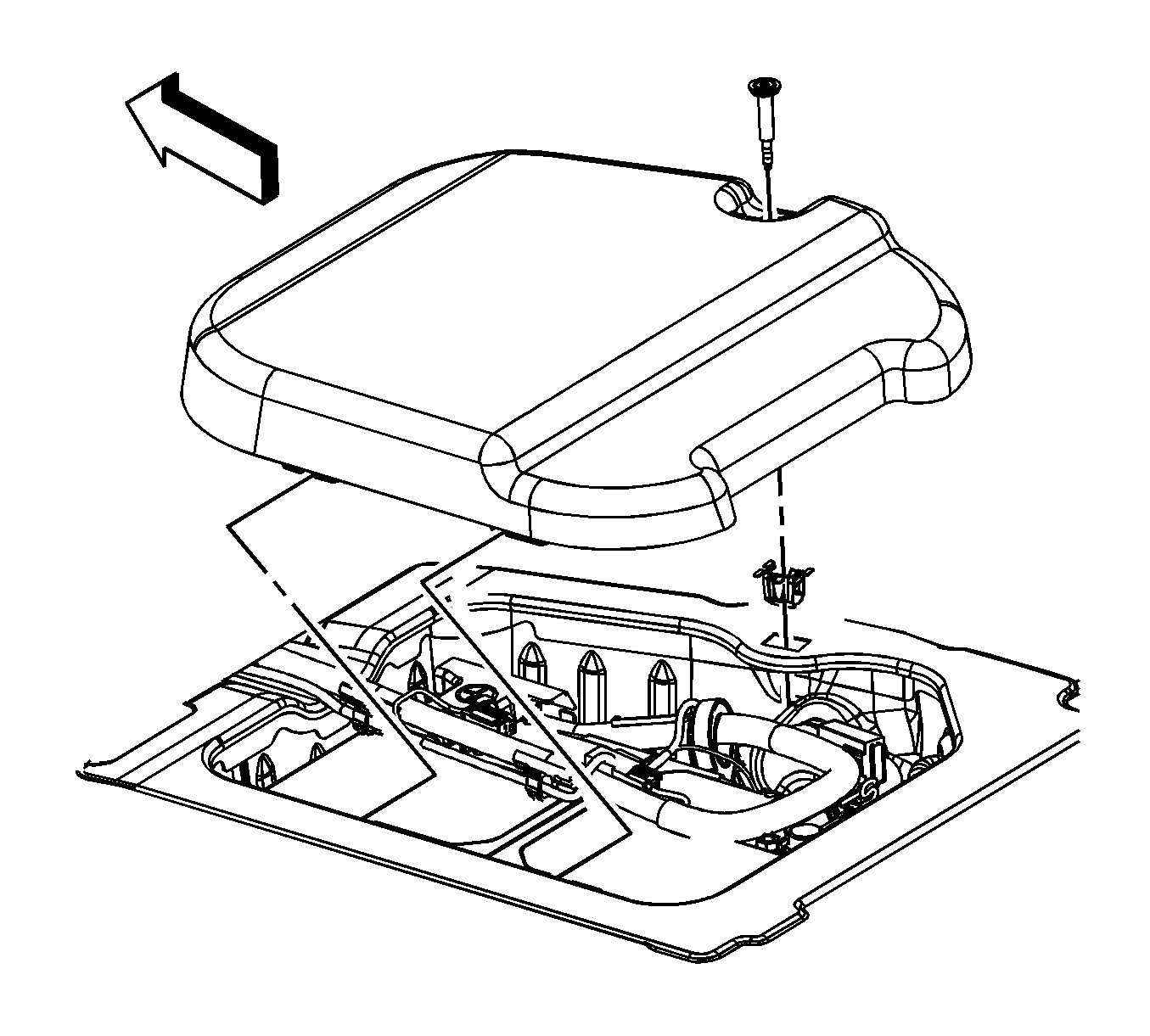

    2. Fig 2: Battery Cover Screw & Cover
    GM1860911Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery cover and tighten the fastener to 1.6 N.m (14 lb in).
  3. Install the rear seat front trim covers.
  4. Reset all of the customers radio station presets.
  5. Install the middle row floor mat, if equipped.
