Installation Procedure

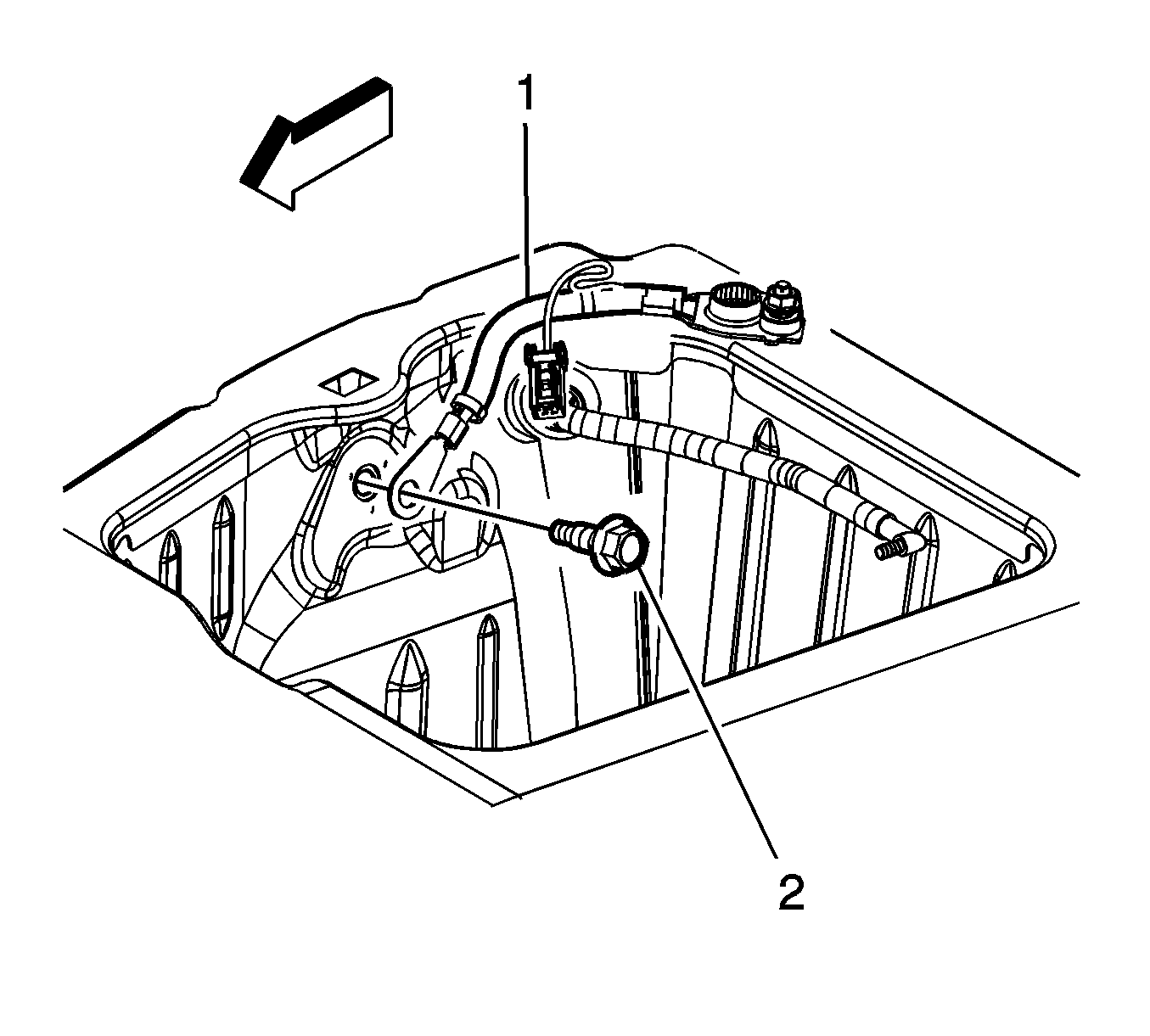

    Fig 1: Negative Battery Cable Ground Bolt
    GM1860989Courtesy of GENERAL MOTORS COMPANY
  1. Position the negative battery cable to the battery box. (battery shown removed for clarity).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the negative battery cable ground bolt (2).

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

    3. Fig 2: Body Wiring Harness Connector & Negative Battery Cable Connector
    GM1860988Courtesy of GENERAL MOTORS COMPANY
  3. Connect the body wiring harness electrical connector (4) to the negative battery cable electrical connector (1).
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
