Installation Procedure

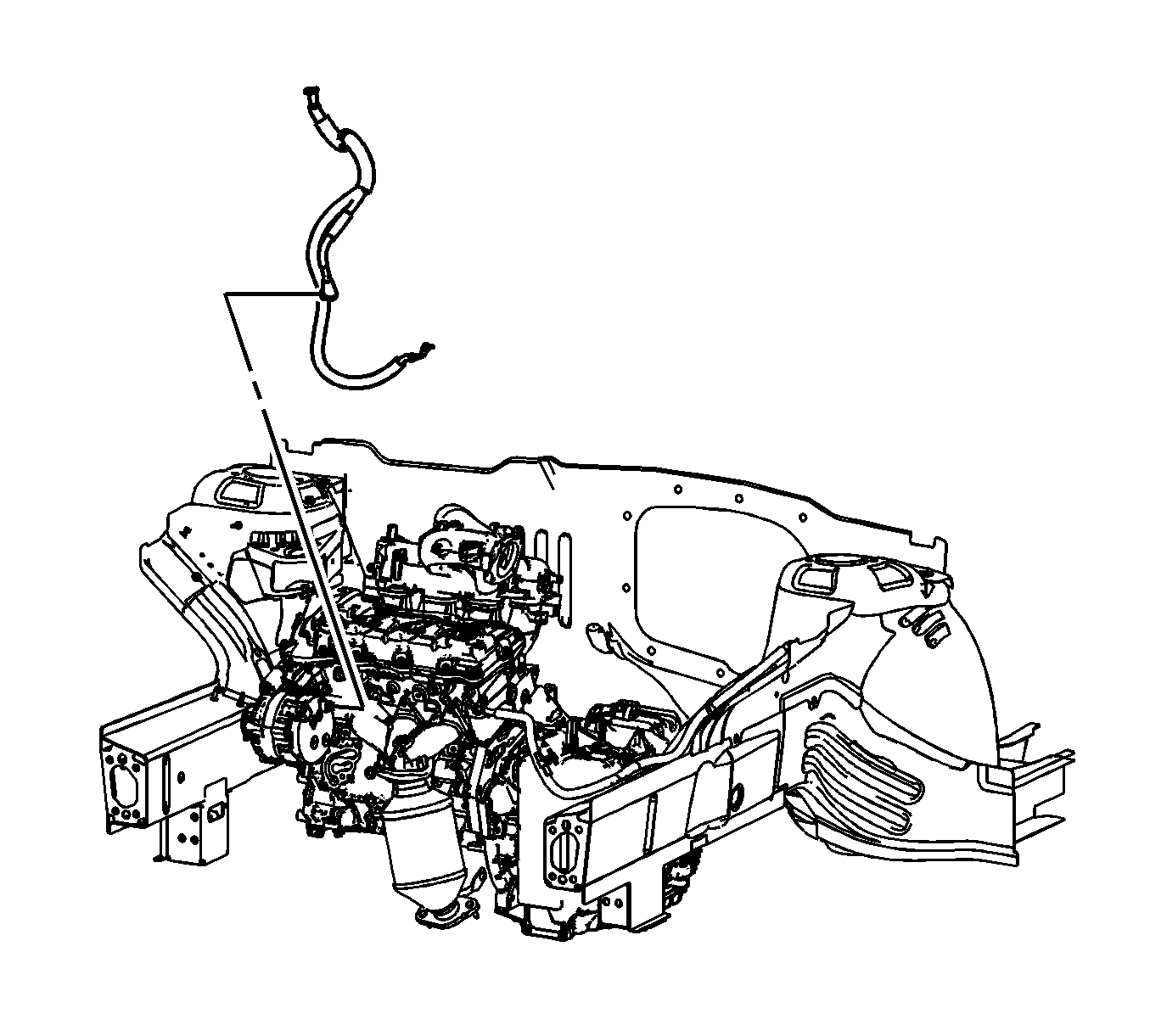

    Fig 1: Battery Positive Junction Block Cable
    GM1861224Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery positive junction block cable to the vehicle.

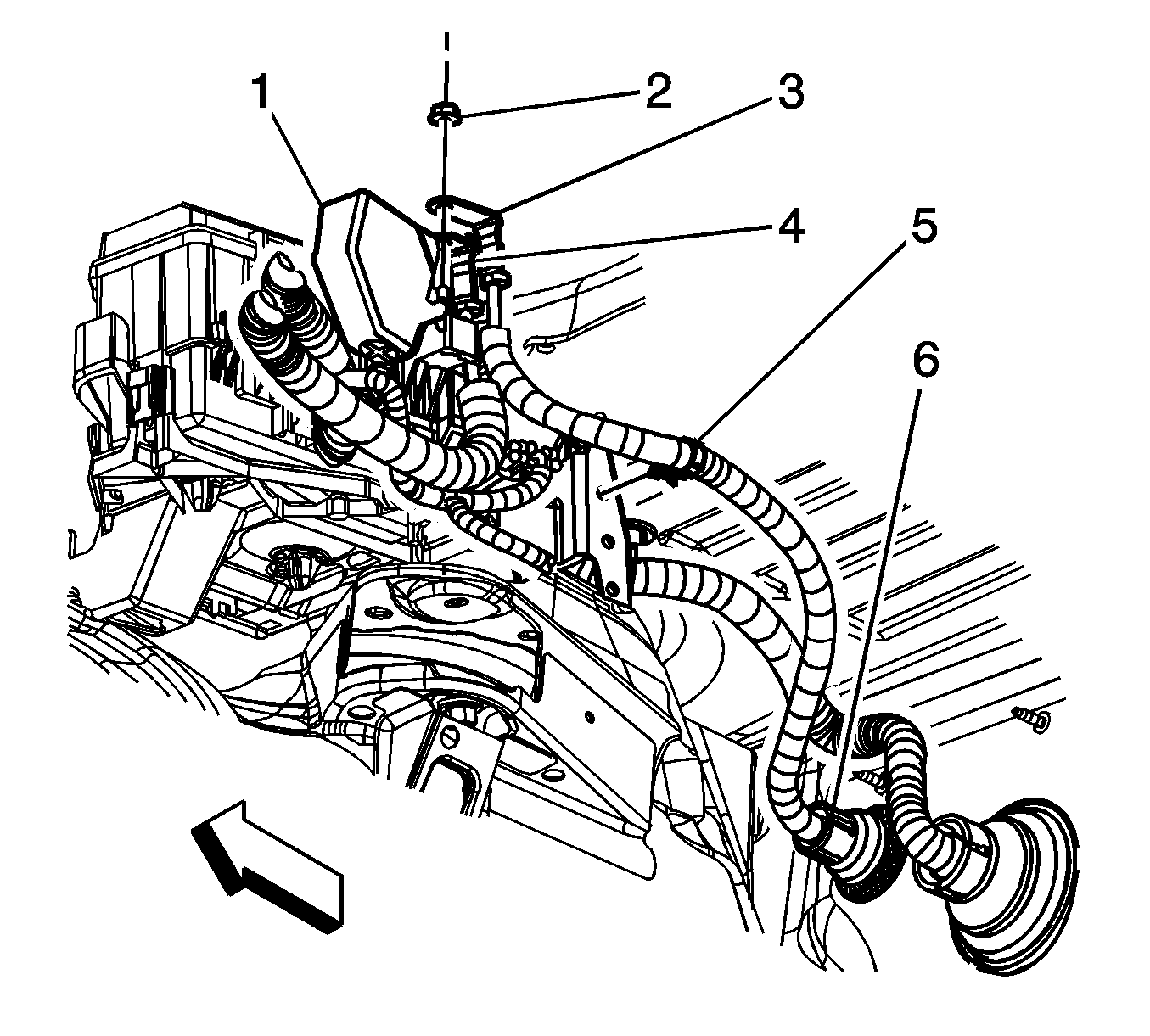

    2. Fig 2: Accessory Wiring Junction Block Cover & Nut
    GM1861038Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive junction block cable terminal (4) to the stud.
  3. Install the positive battery cable terminal (3) to the junction block stud.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the accessory wiring junction block nut (2).

    Tighten

    Tighten the nut to 22 N.m (16 lb ft).

  5. Close the accessory wiring junction block cover (1).

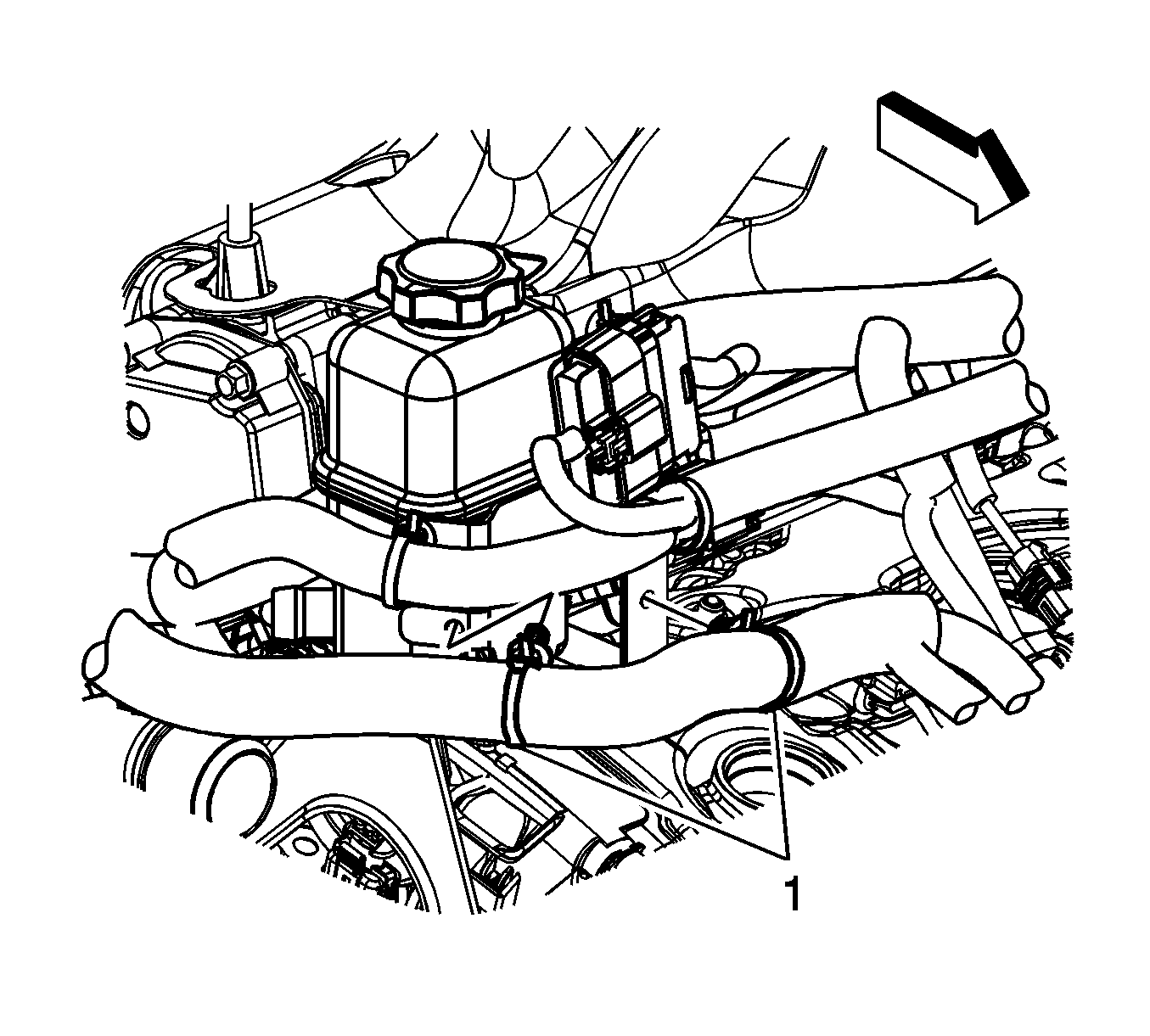

    6. Fig 3: Battery Positive Junction Block Cable Clips
    GM1861223Courtesy of GENERAL MOTORS COMPANY
  6. Install the battery positive junction block cable clips (1) to the power steering reservoir bracket.

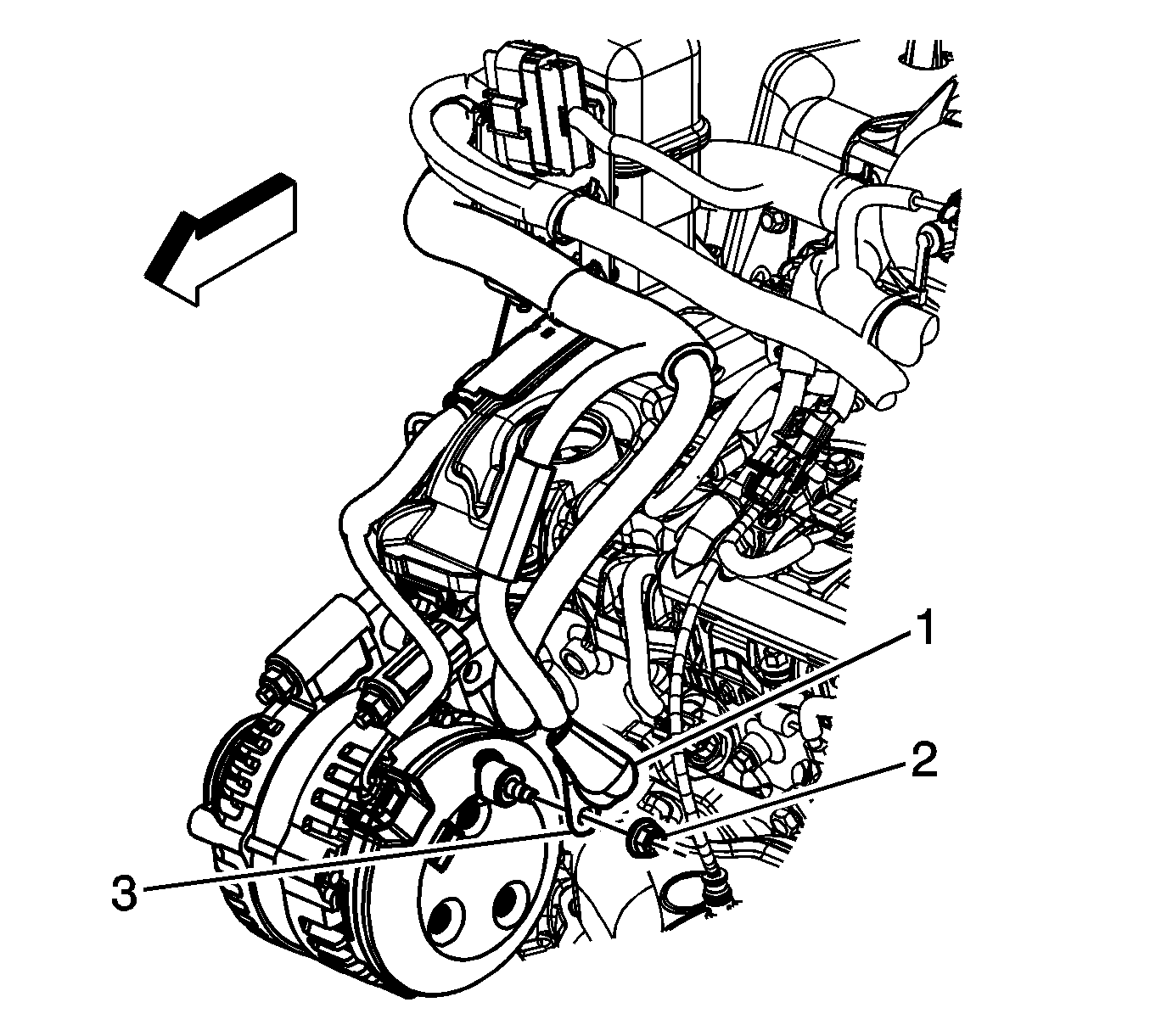

    7. Fig 4: Battery Positive Junction Block Cable Boot & Cable Terminal
    GM1861163Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery positive junction block cable terminal (3) to the generator stud.
  8. Install the battery positive junction block cable to generator nut (3).

    Tighten

    Tighten the nut to 22 N.m (16 lb ft).

  9. Position the battery positive junction block cable boot (1).
  10. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
    11. Fig 5: Battery Positive Junction Block Cable Clip & Cable Terminal
    GM1861148Courtesy of GENERAL MOTORS COMPANY
  11. Install the battery positive junction block cable terminal (2) to the starter.
  12. Install the starter solenoid BAT terminal nut (3).

    Tighten

    Tighten the nut to 25 N.m (18 lb ft).

  13. Install the battery positive junction block cable clip (1) to the engine block.

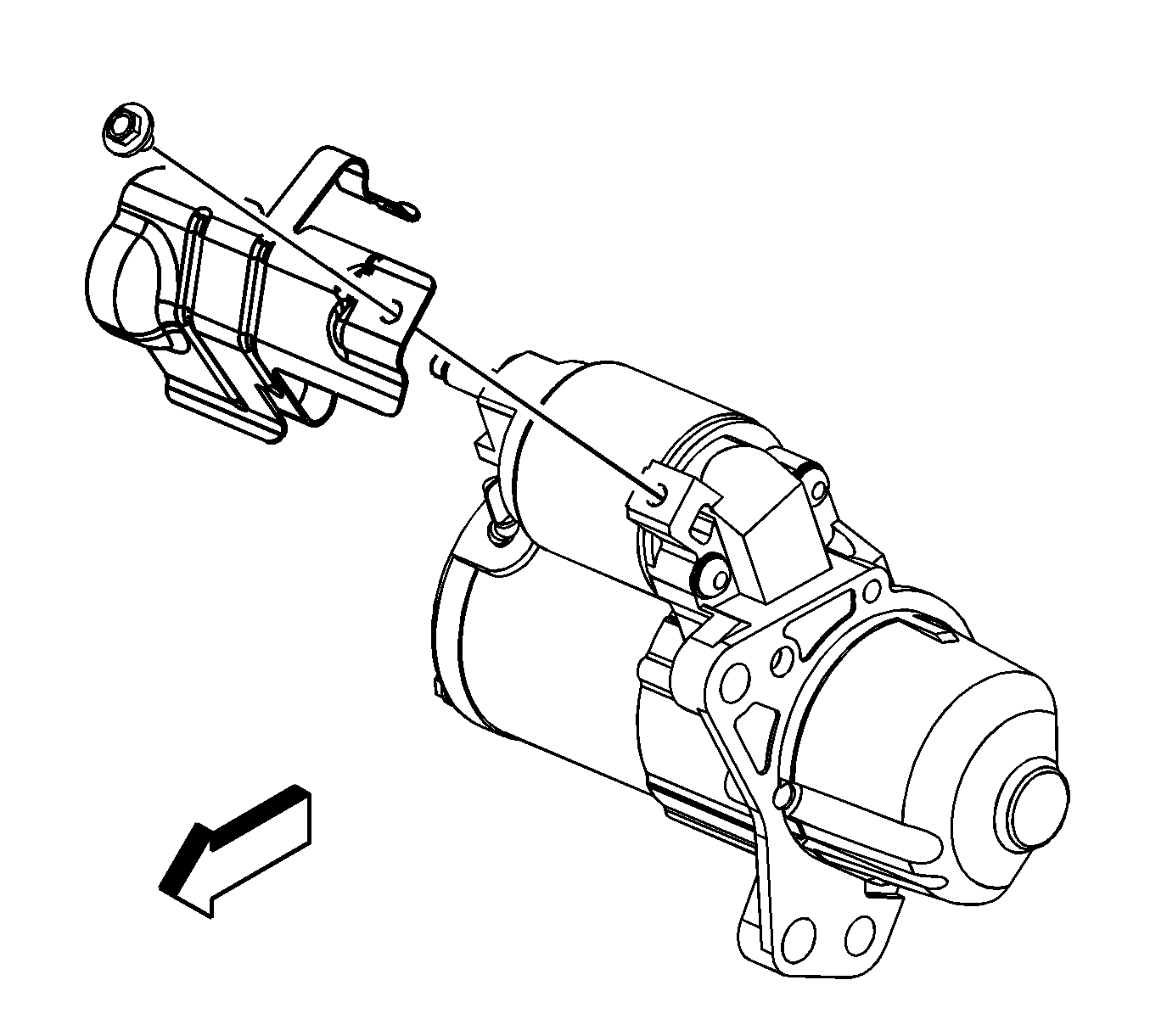

    14. Fig 6: Starter Heat Shield Bolt & Shield
    GM1861146Courtesy of GENERAL MOTORS COMPANY
  14. Install the starter heat shield and bolt.

    Tighten

    Tighten the bolt to 7 N.m (62 lb in).

  15. Install the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side .
  16. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  17. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
