Installation Procedure

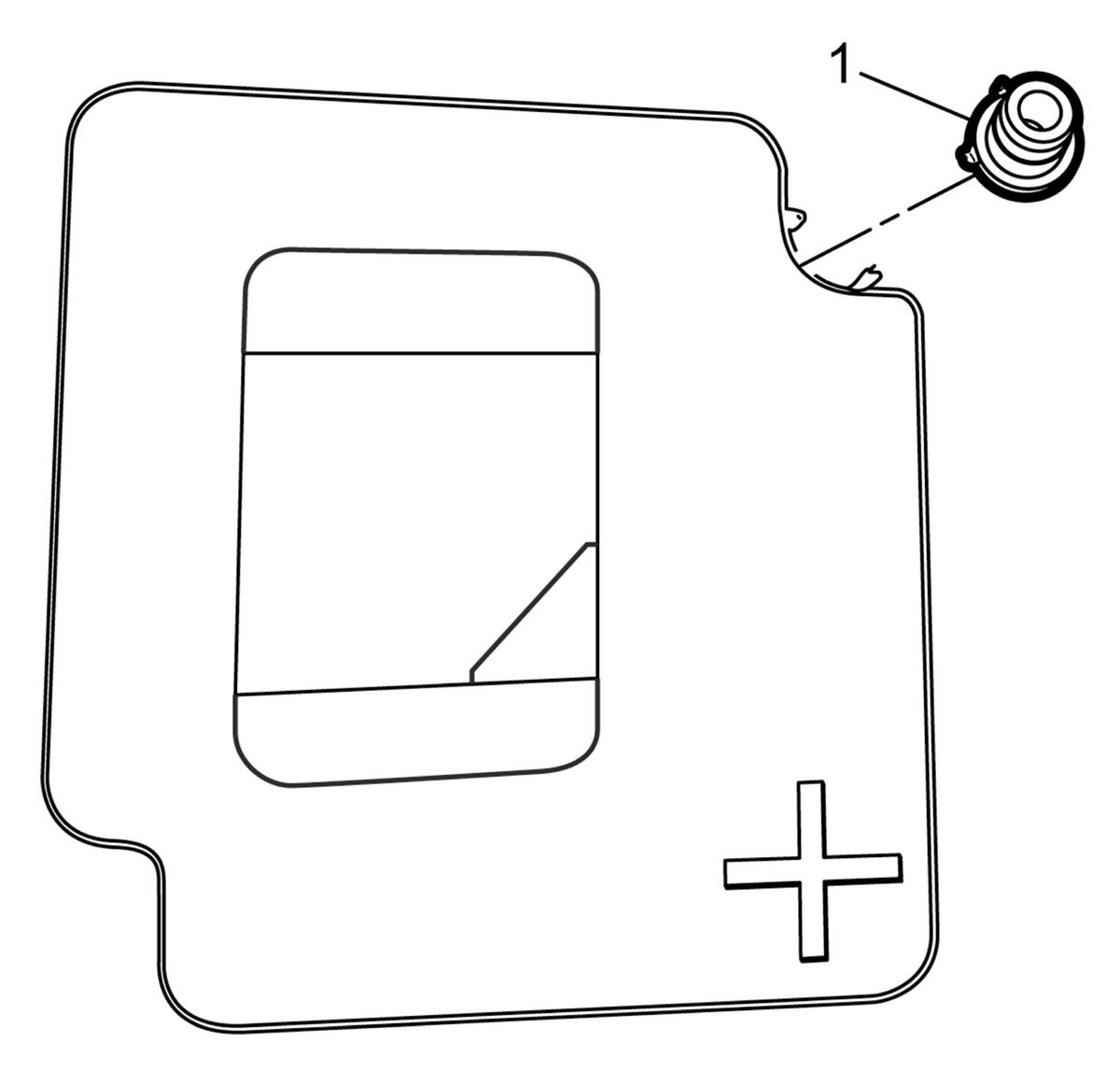

Fig 1: Vent Plug

Courtesy of GENERAL MOTORS COMPANY

If you are replacing the battery with a serviced NEW battery, detach the vent plug (1), that comes with the positive post cover.

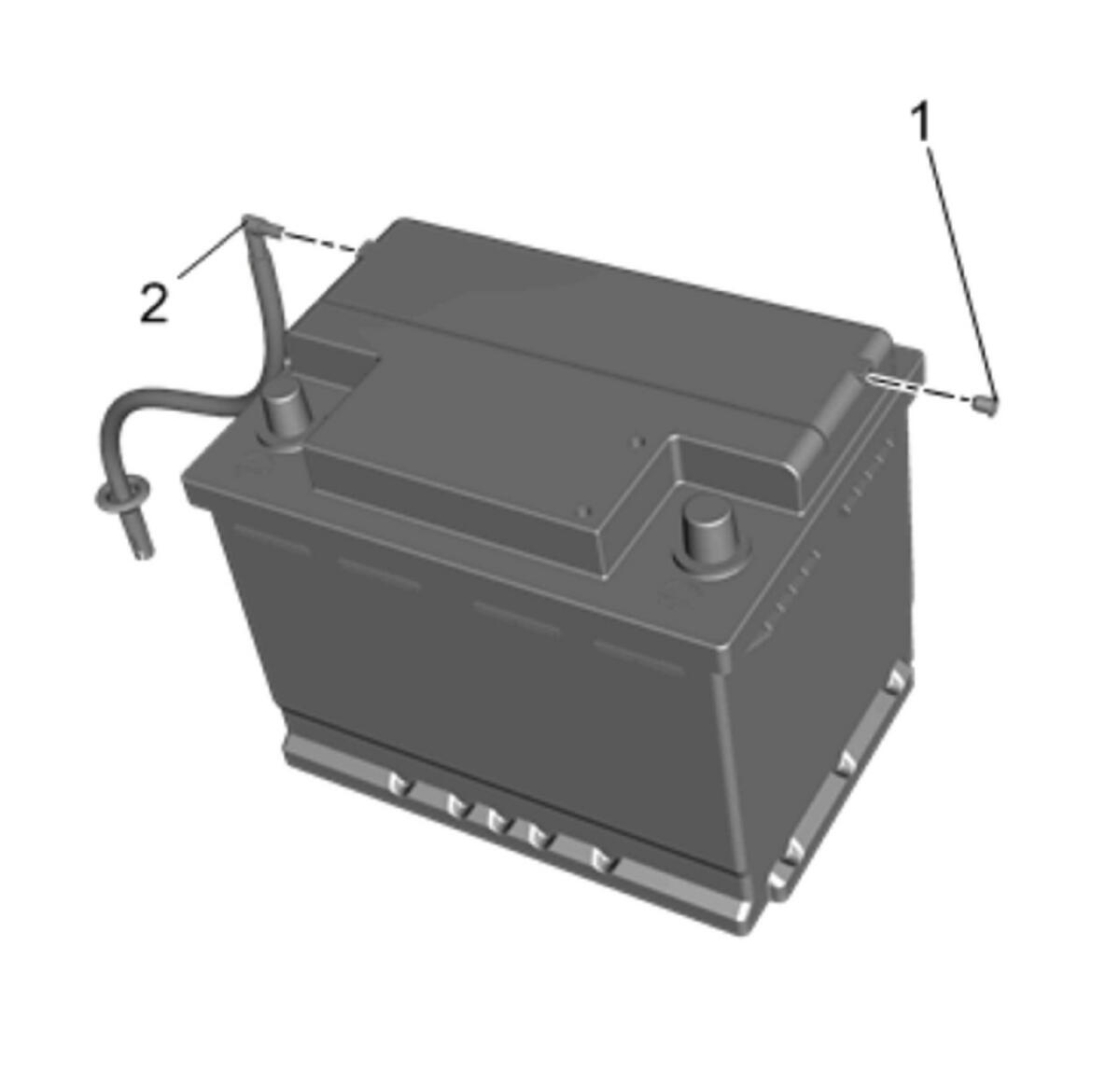

Fig 2: Vent Plug And Battery Vent Hose

Courtesy of GENERAL MOTORS COMPANY

Install the vent plug (1), opposite side of the battery vent hose (2).

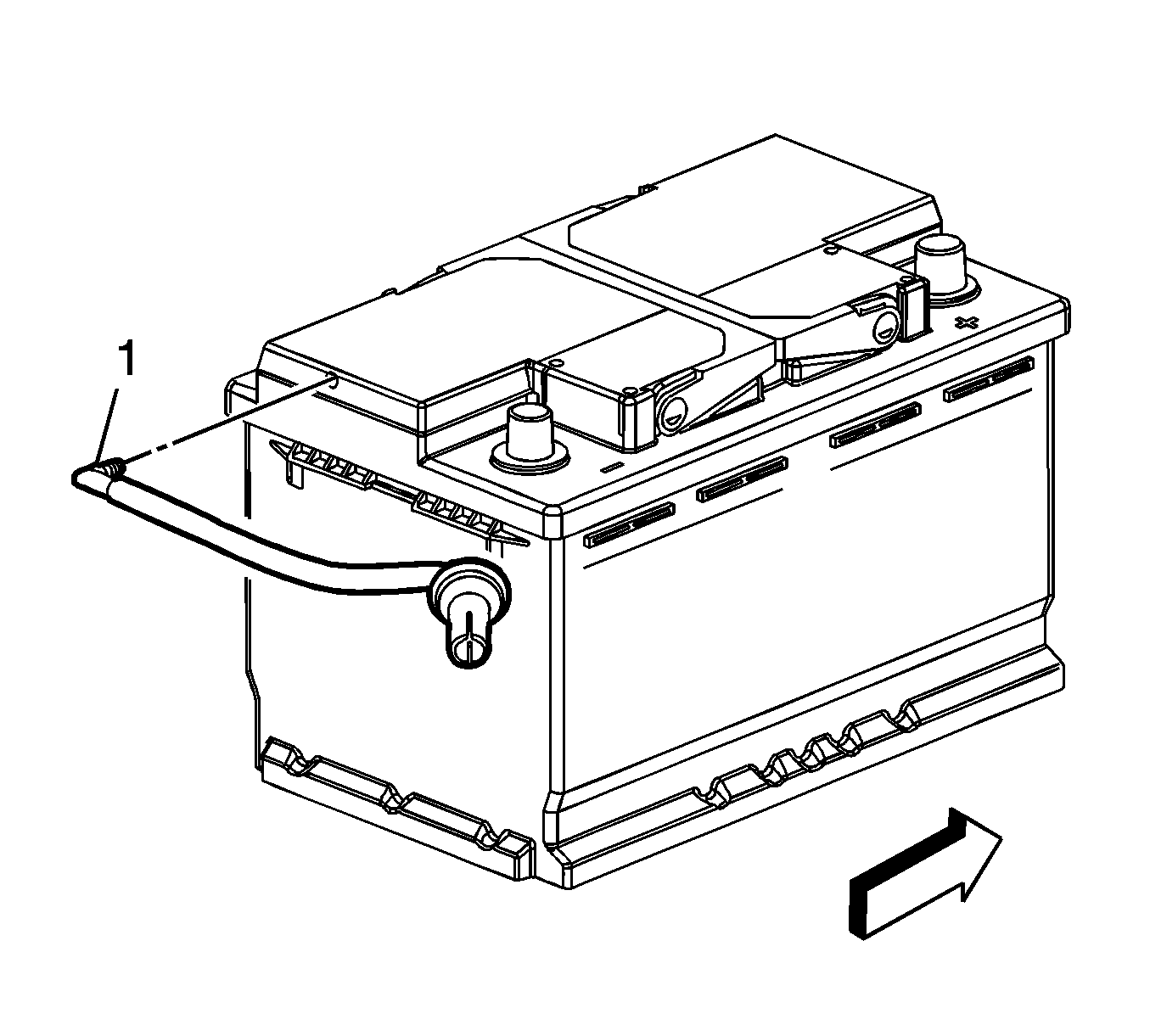

Fig 3: Battery Vent Hose

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Replacement batteries may require the vent plug in the battery vent hole to be moved from one end of the battery to the other to permit vent tube installation per original design.

Install the battery vent hose (1) to the battery.

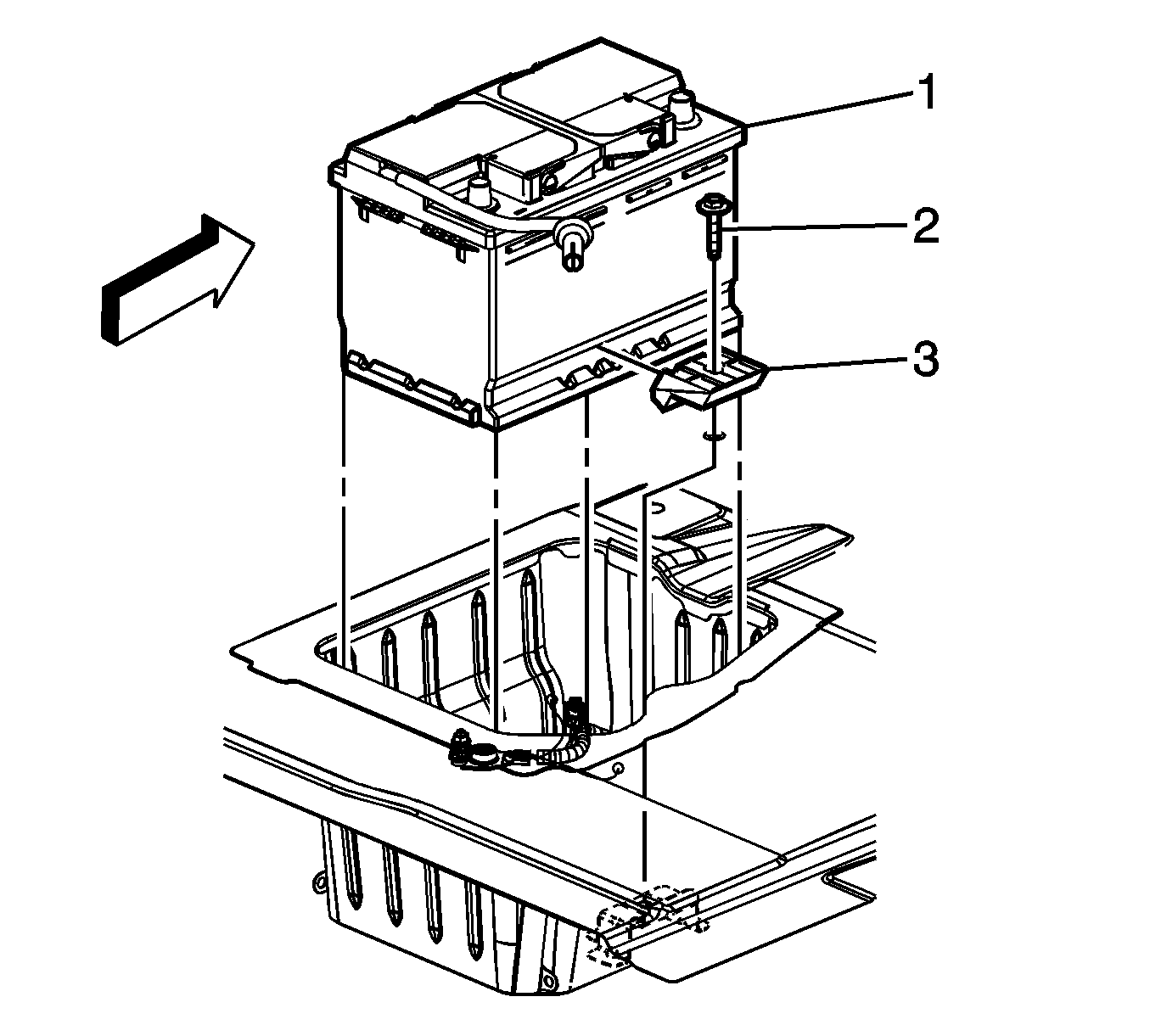

Fig 4: Battery, Battery Hold Down & Bolt

Courtesy of GENERAL MOTORS COMPANY

Install the battery (1) into the battery box.
Install the battery hold down (3).

CAUTION:

Refer to Fastener Caution .

Install the battery hold down bolt (2) and tighten to 25 N.m (18 lb ft).

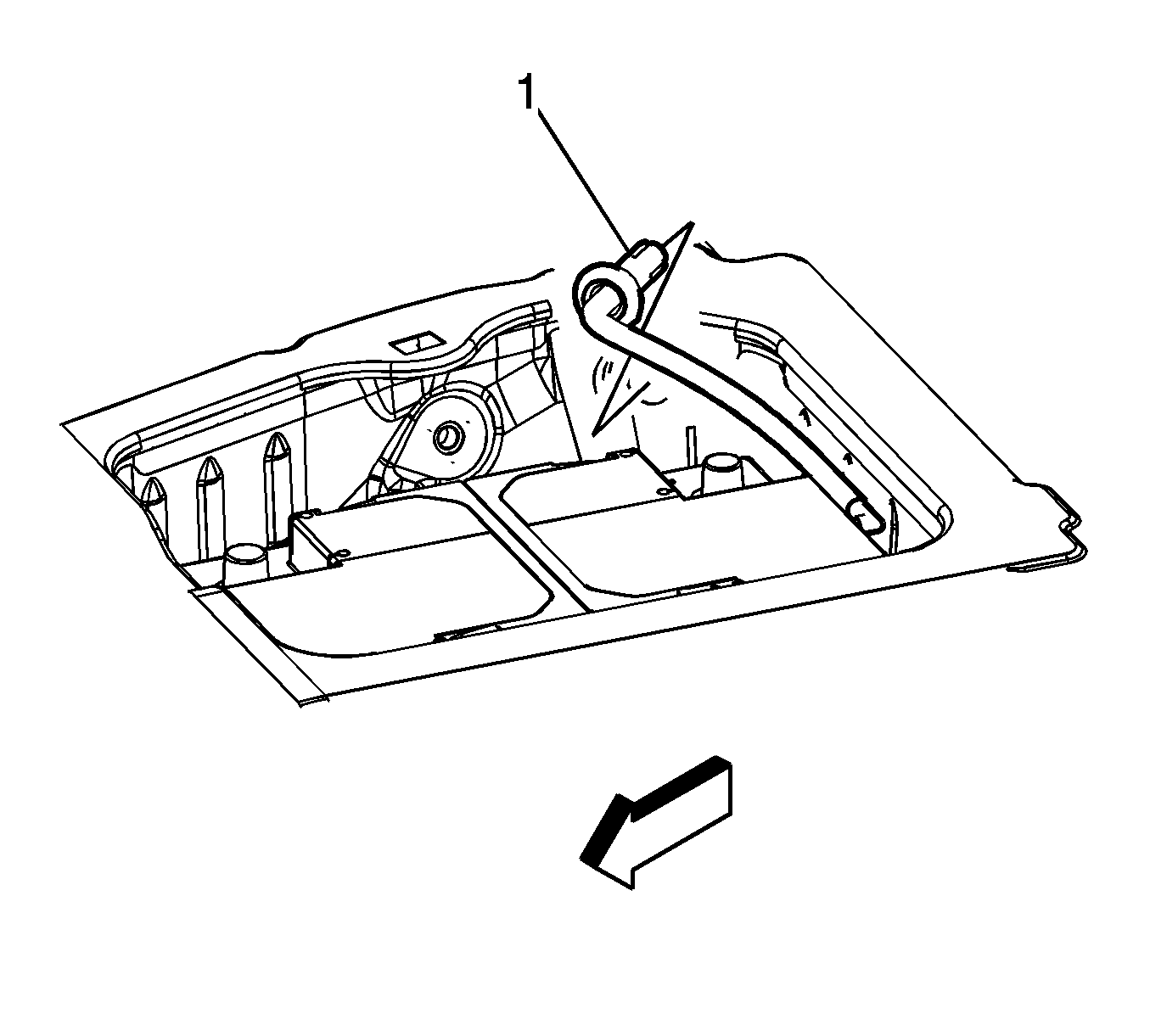

Fig 5: Battery Vent Hose Grommet

Courtesy of GENERAL MOTORS COMPANY

Install the battery vent hose grommet (1) to the battery box.

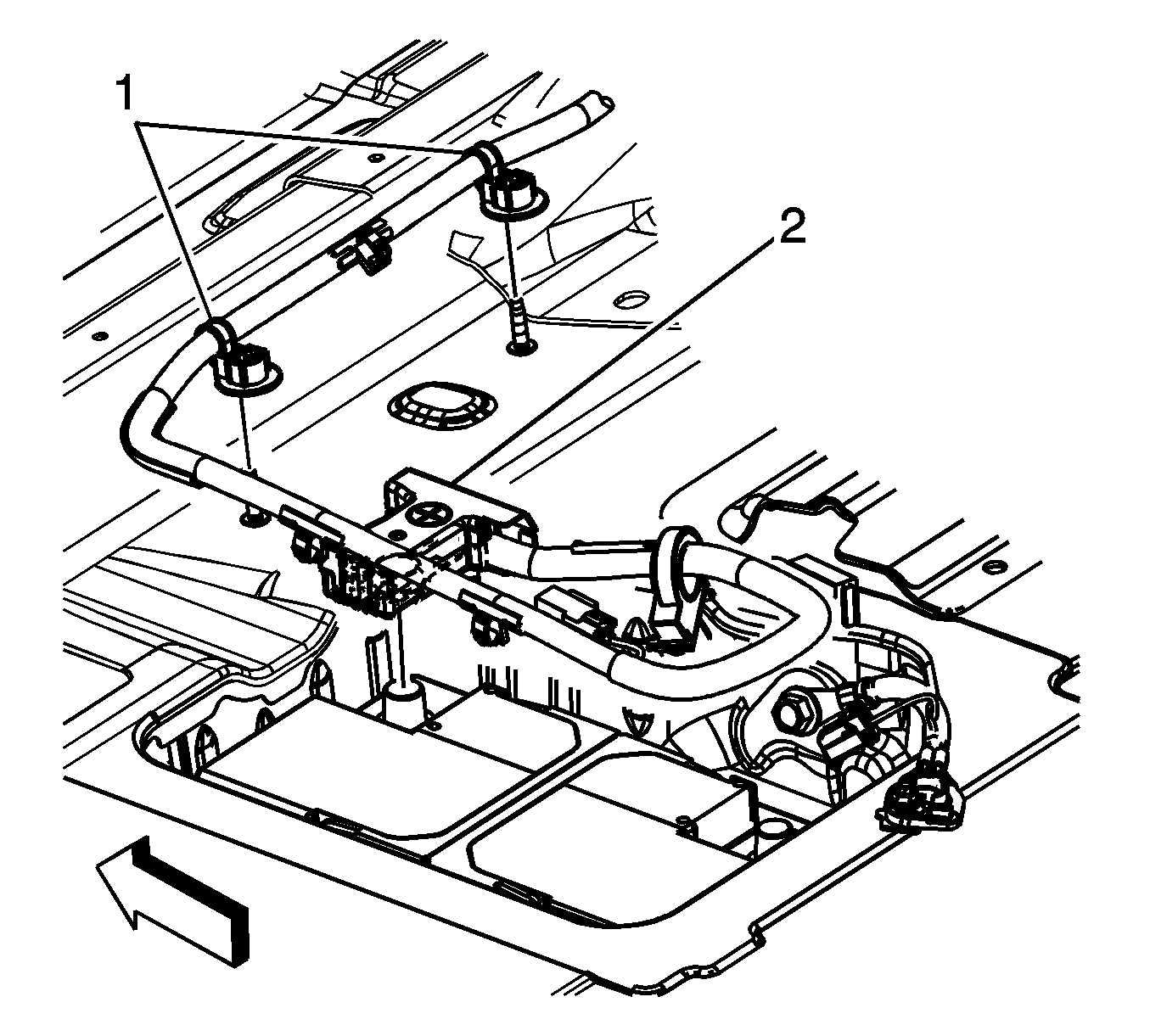

Fig 6: Positive Battery Cable Clips & Positive Battery Cable Cover

Courtesy of GENERAL MOTORS COMPANY

Position the positive battery cable, and Install the cable terminal to the battery positive terminal.
Tighten the positive battery cable terminal nut and tighten to 9 N.m (80 lb in).
Close the positive battery cable cover (2).

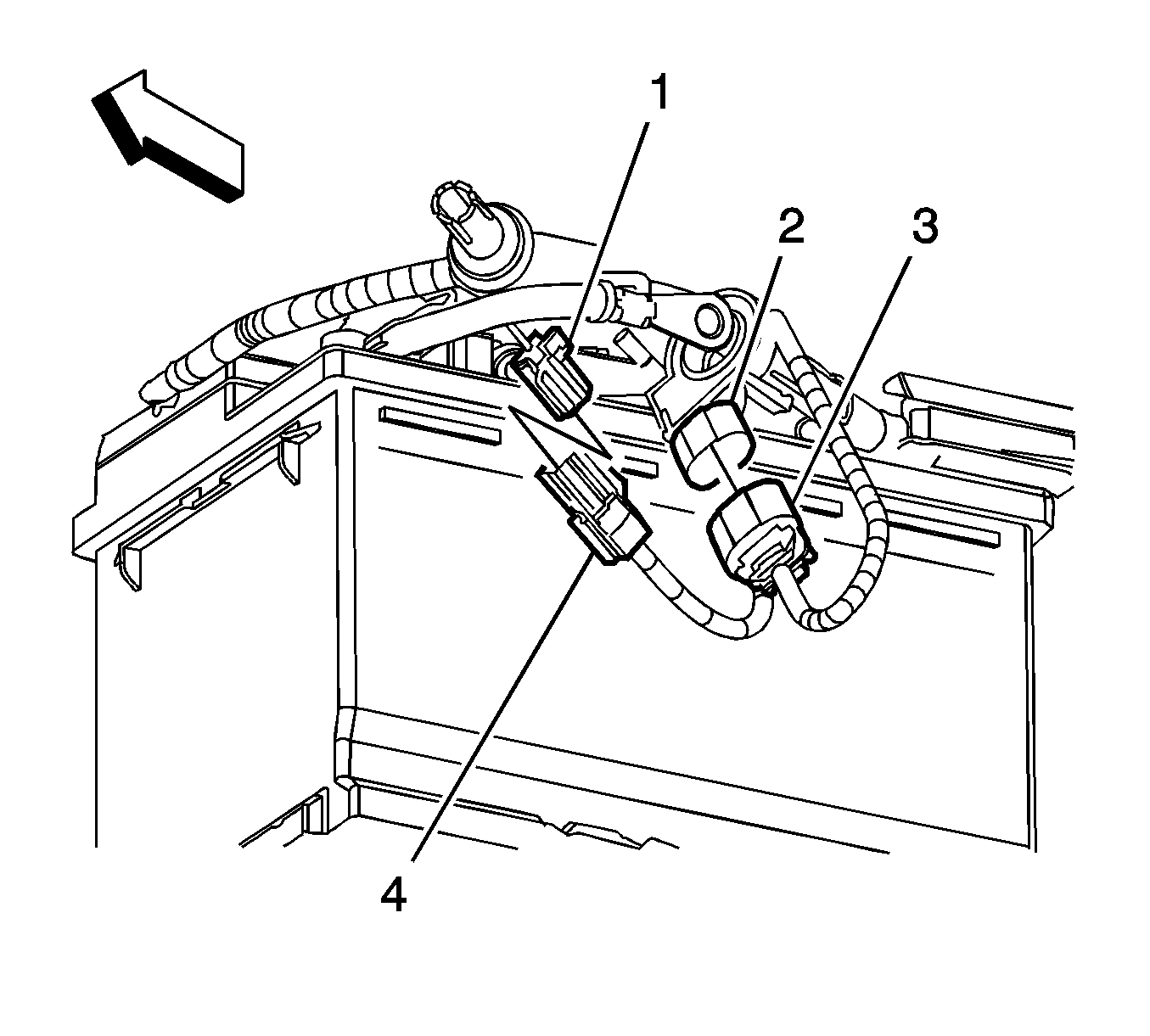

Fig 7: Body Wiring Harness, Electrical Connector & Positive Battery Cable Clips

Courtesy of GENERAL MOTORS COMPANY

Connect the body wiring harness electrical connector (2) to the positive battery cable electrical connector (3).

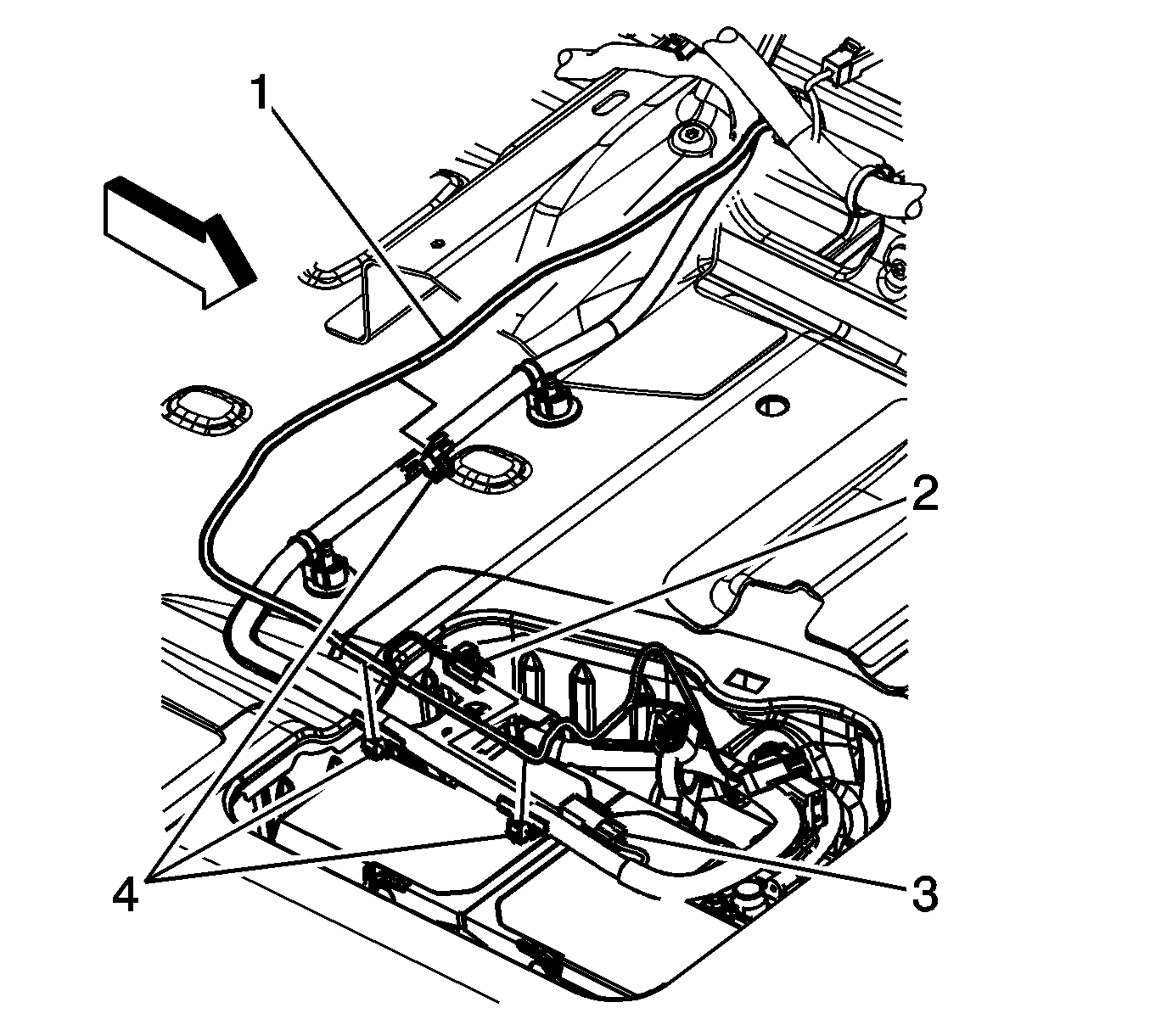

Fig 8: Body Wiring Harness Connector & Negative Battery Cable Connector

Courtesy of GENERAL MOTORS COMPANY

Connect the body wiring harness electrical connector (4) to the negative battery cable electrical connector (1).
Connect the body wiring harness electrical connector (3) to the battery current sensor (2).
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
