Installation Procedure

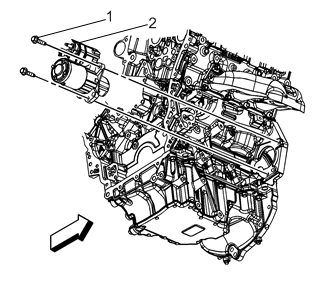

    Fig 1: Starter Bolts And Starter
    GM4360625Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the starter (2) and starter bolts (1).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

    2. Fig 2: Engine Wiring Harness Electrical Connector
    GM1860484Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor (3).
  3. Connect the engine wiring harness electrical connector (1) to the starter.

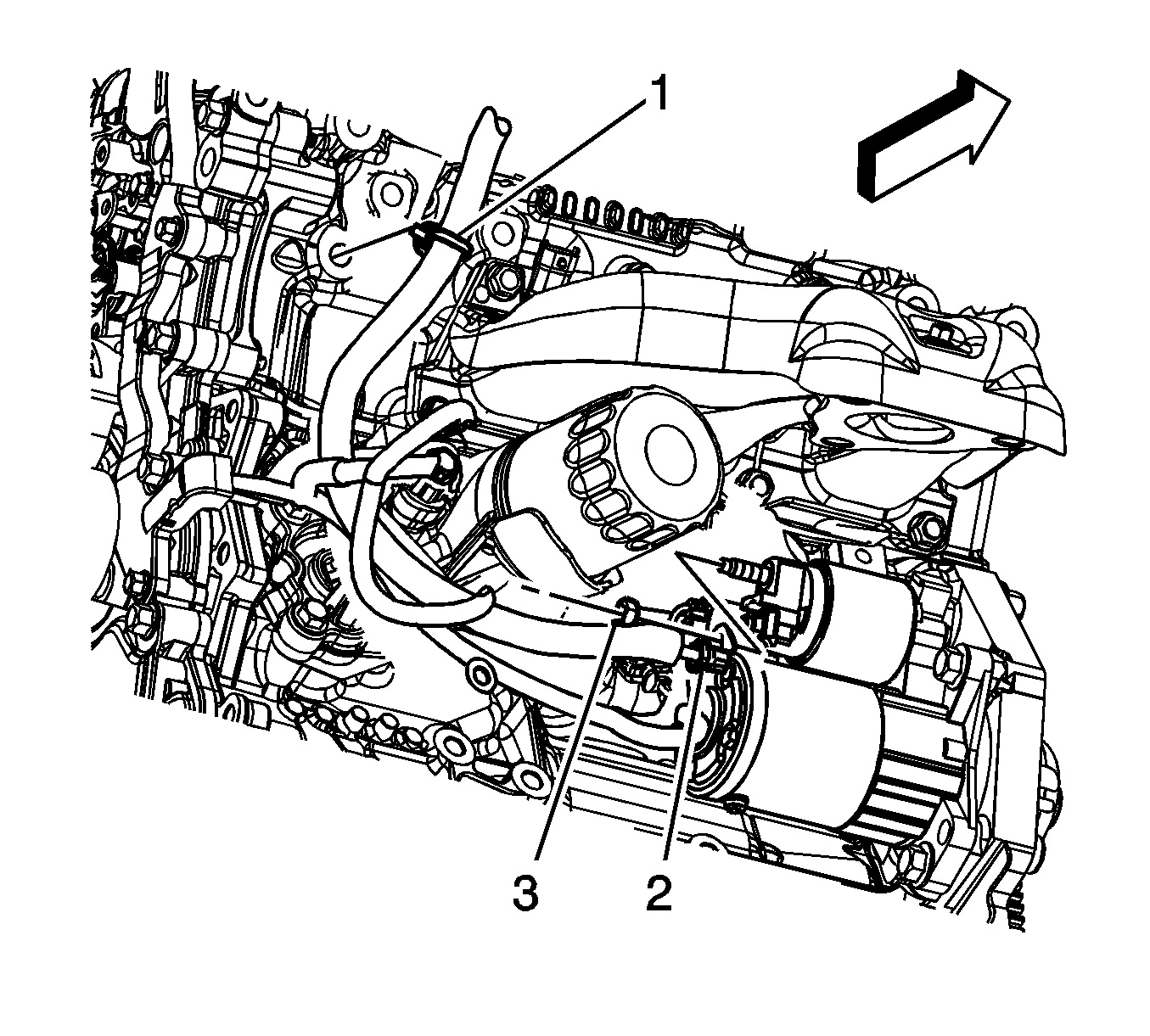

    4. Fig 3: Battery Positive Junction Block Cable Clip & Cable Terminal
    GM1861148Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery positive junction block cable terminal (2) to the starter.
  5. Install the starter solenoid BAT terminal nut (3).

    Tighten

    Tighten the nut to 25 N.m (18 lb ft).

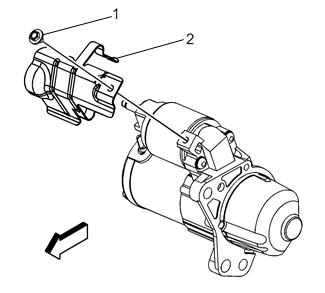

    6. Fig 4: Starter Heat Shield Bolt And Shield
    GM4360592Courtesy of GENERAL MOTORS COMPANY
  6. Install the starter heat shield (2) and bolt (1).

    Tighten

    Tighten the bolt to 7 N.m (62 lb in).

  7. Install the left catalytic convertor. Catalytic Converter Replacement - Left Side
  8. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
