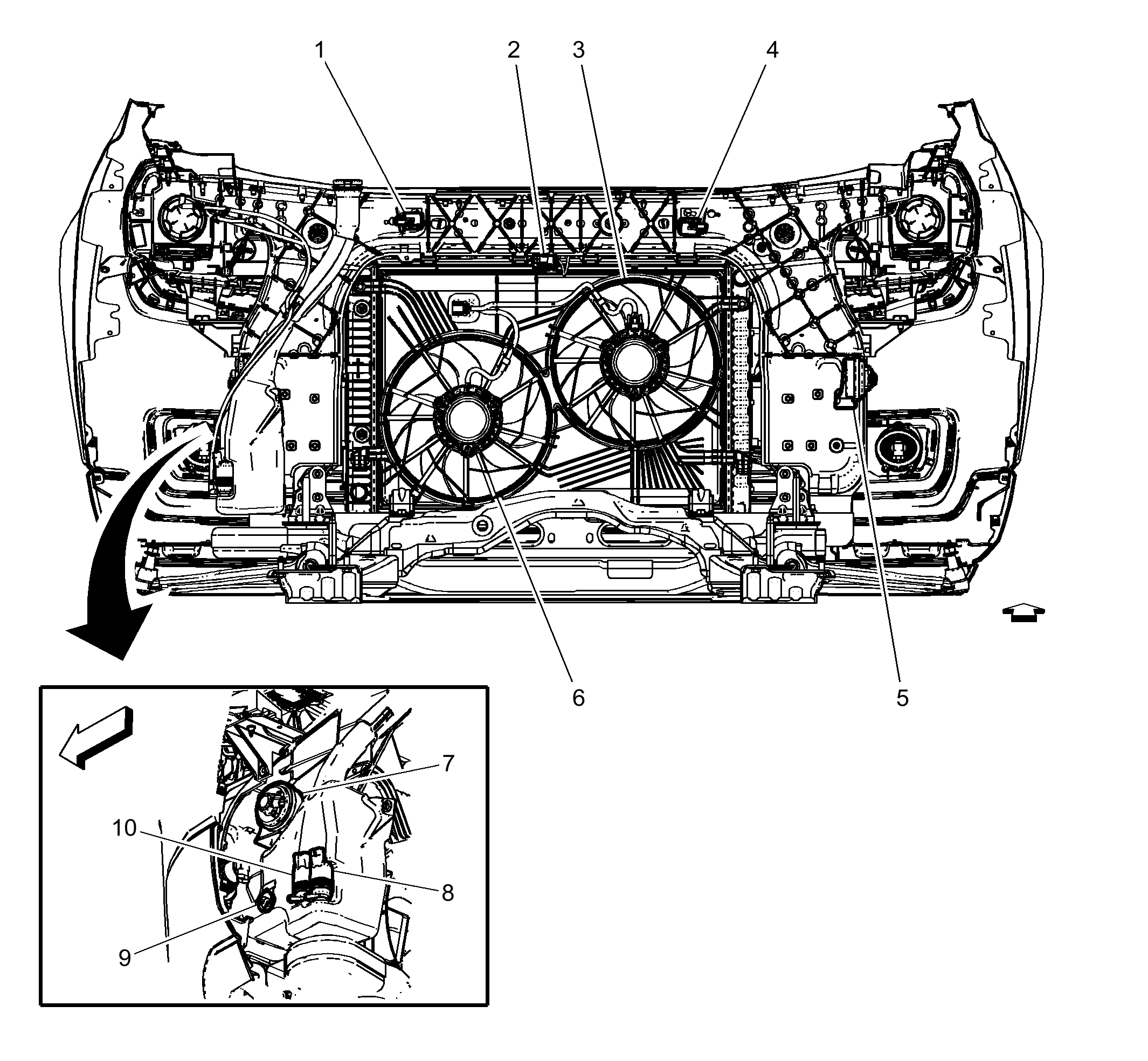

Front of Engine Compartment - Components
Front of Engine Compartment - Components
| Items |
|---|
| 1. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 2. B55 Hood Ajar Switch (BTV) B55 Engine Hood Switch |
| 3. G10R Cooling Fan Motor - Right |
| 4. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 5. P12A Horn - High Note P12A Horn - High Note |
| 6. G10L Cooling Fan Motor - Left |
| 7. P12B Horn - Low Note P12B Horn - Low Note |
| 8. G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 9. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| 10. G19 Rear Window Washer Pump |
