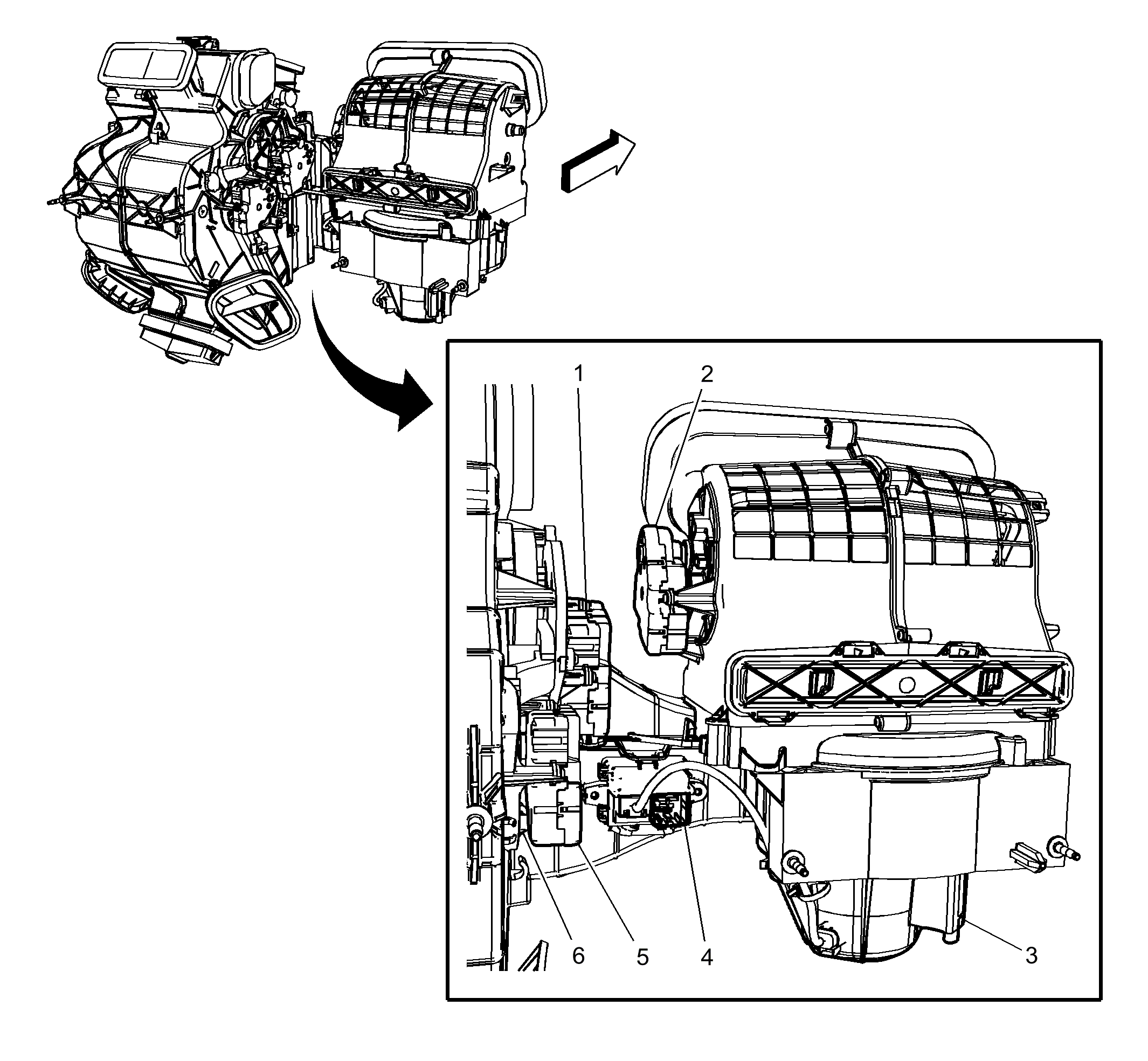

HVAC Module Components - (C67)
HVAC Module Components - (C67)
| Items |
| 1: M37 Mode Door Actuator |
| 2: M46 Air Recirculation Door Actuator |
| 3: M8 Blower Motor |
| 4: K8 Blower Motor Control Module |
| 5: M6 Air Temperature Door Actuator (C67) |
| 6: B39 A/C Evaporator Temperature Sensor |
Courtesy of GENERAL MOTORS COMPANY
