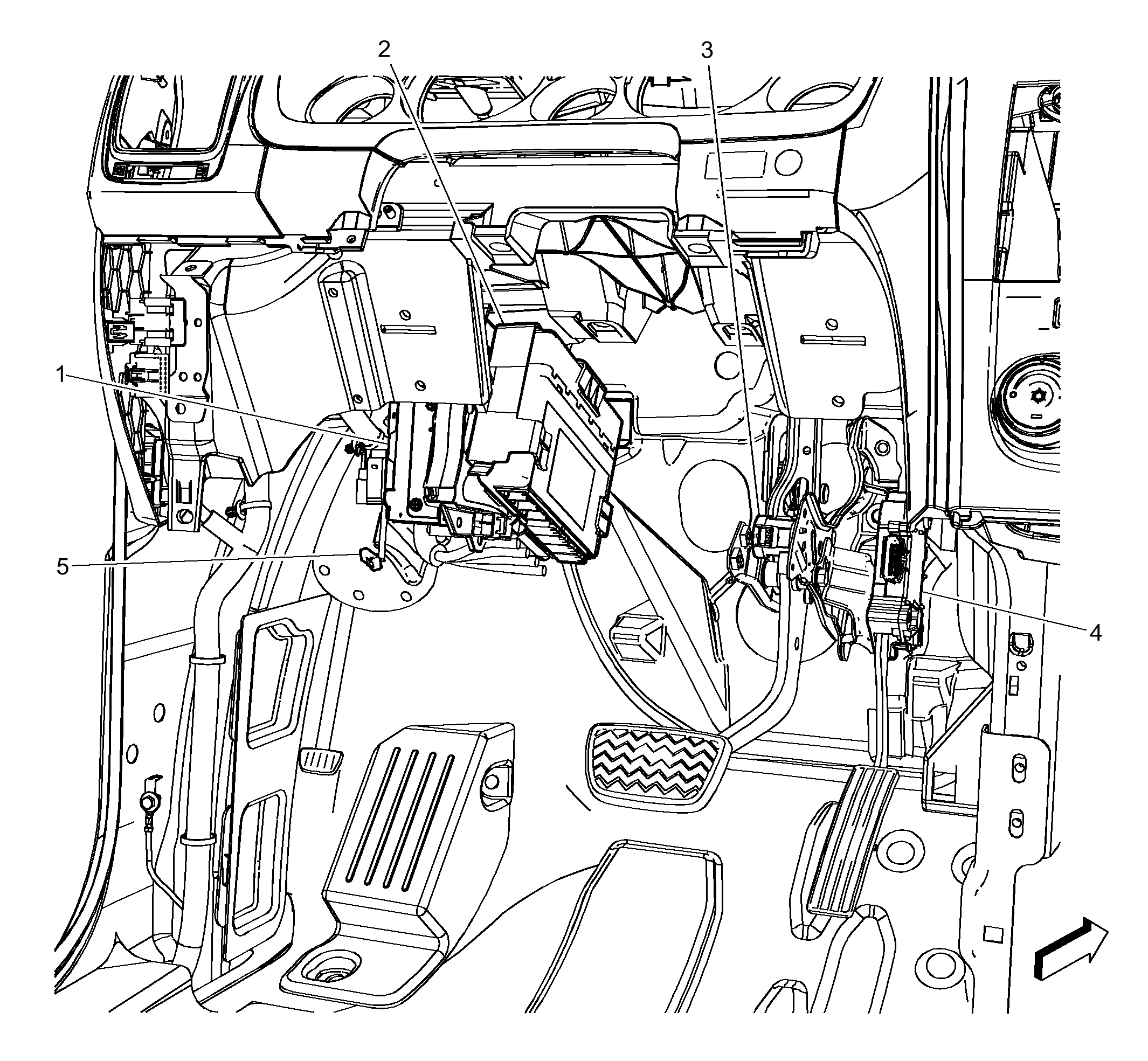

Instrument Panel - Left Side Lower
Instrument Panel - Left Side Lower
| Items |
|---|
| 1: T3 Audio Amplifier (UQA or UQS) T3 Audio Amplifier X1T3 Audio Amplifier X2T3 Audio Amplifier X3 |
| 2: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 3: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 4: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 5: B80 Park Brake Switch B80 Park Brake Switch |
