Instrument Panel - Upper

Instrument Panel - Upper

Items
1: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
2: X83 Auxiliary Audio Input (USR)
3: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
4: P19B Speaker - Center Instrument Panel (UQA or UQS) P19B Speaker - Center Instrument Panel

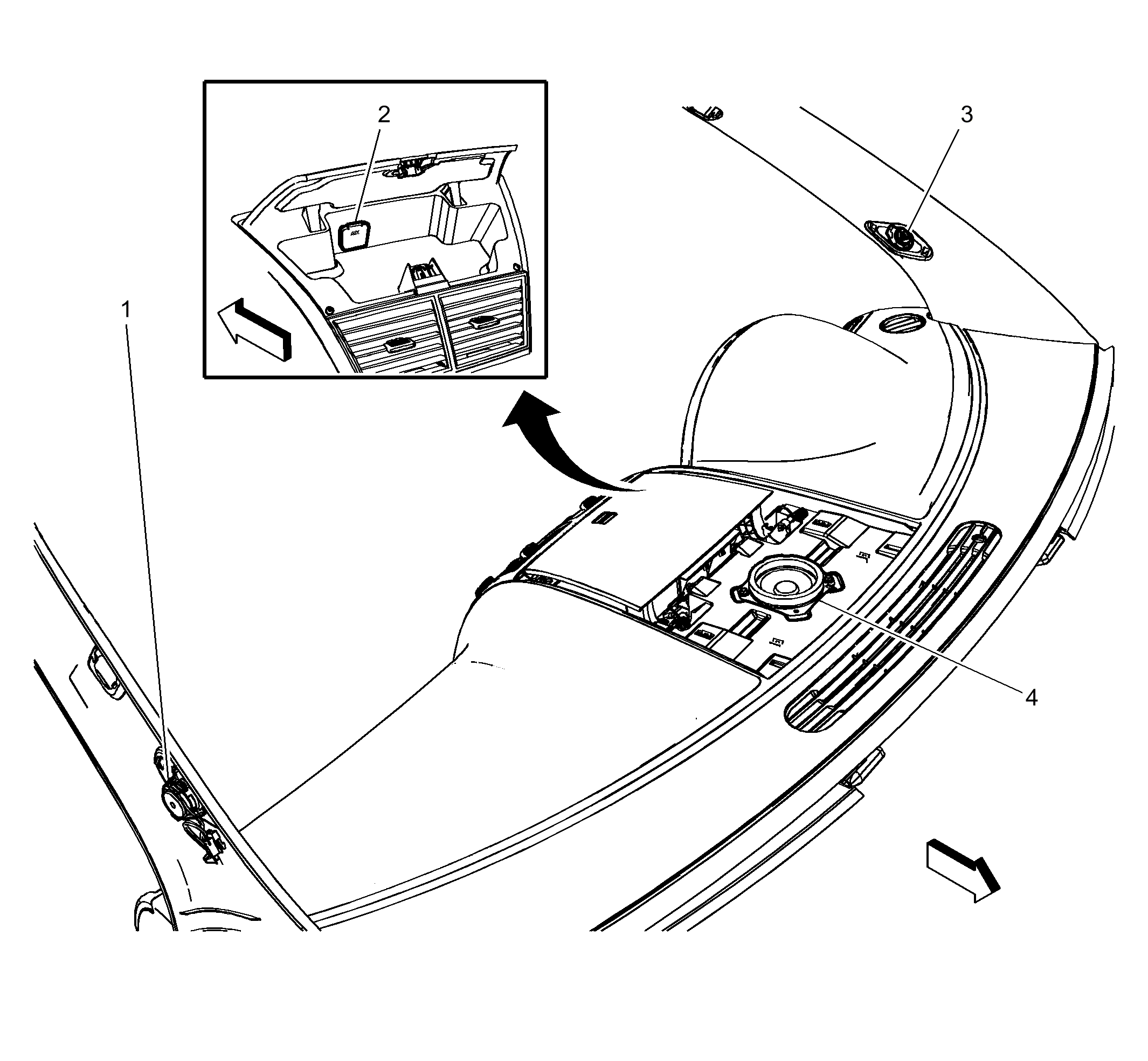

Fig 1: Instrument Panel - Upper
GM2719128Courtesy of GENERAL MOTORS COMPANY
