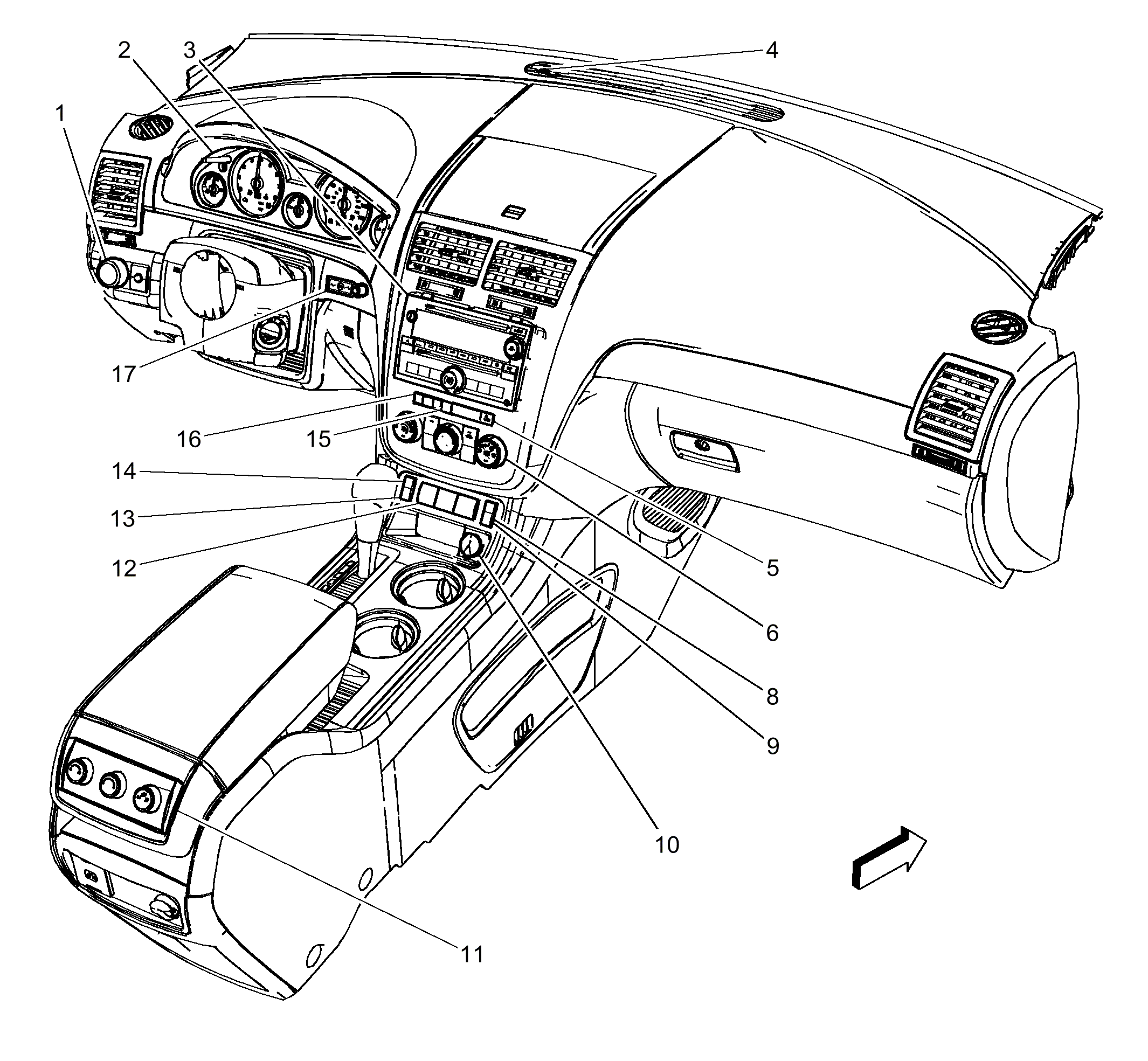

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1: S30 Headlamp Switch S30 Headlamp Switch |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio X4 |
| 4: B10 Ambient Light Sensor (C67) B10 Ambient Light Sensor |
| 5: P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator |
| 6: K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2 (C67)K33 HVAC Control Module X2 (CJ2)K33 HVAC Control Module X4 |
| 7: S32P Seat Heating Switch - Passenger (KA1) S32P Seat Heating Switch - Passenger |
| 8: S31P Seat Heating and Cooling Switch - Passenger (KB6) |
| 9: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 10: A34 HVAC Controls - Auxiliary |
| 11: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 12: S31D Seat Heating and Cooling Switch - Driver (KB6) |
| 13: S32D Seat Heating Switch - Driver (KA1) S32D Seat Heating Switch - Driver (KA1) |
| 14: S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 15: S16 Driver Information Center Switch (UH9) S16 Driver Information Center Switch |
| 16: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch |
