Steering Wheel Components

Steering Wheel Components

Items
1: S33 Horn Switch S33 Horn Switch X1S33 Horn Switch X2
2: S70R Steering Wheel Controls Switch - Right (UK3) S70R Steering Wheel Controls Switch - Right
3: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left

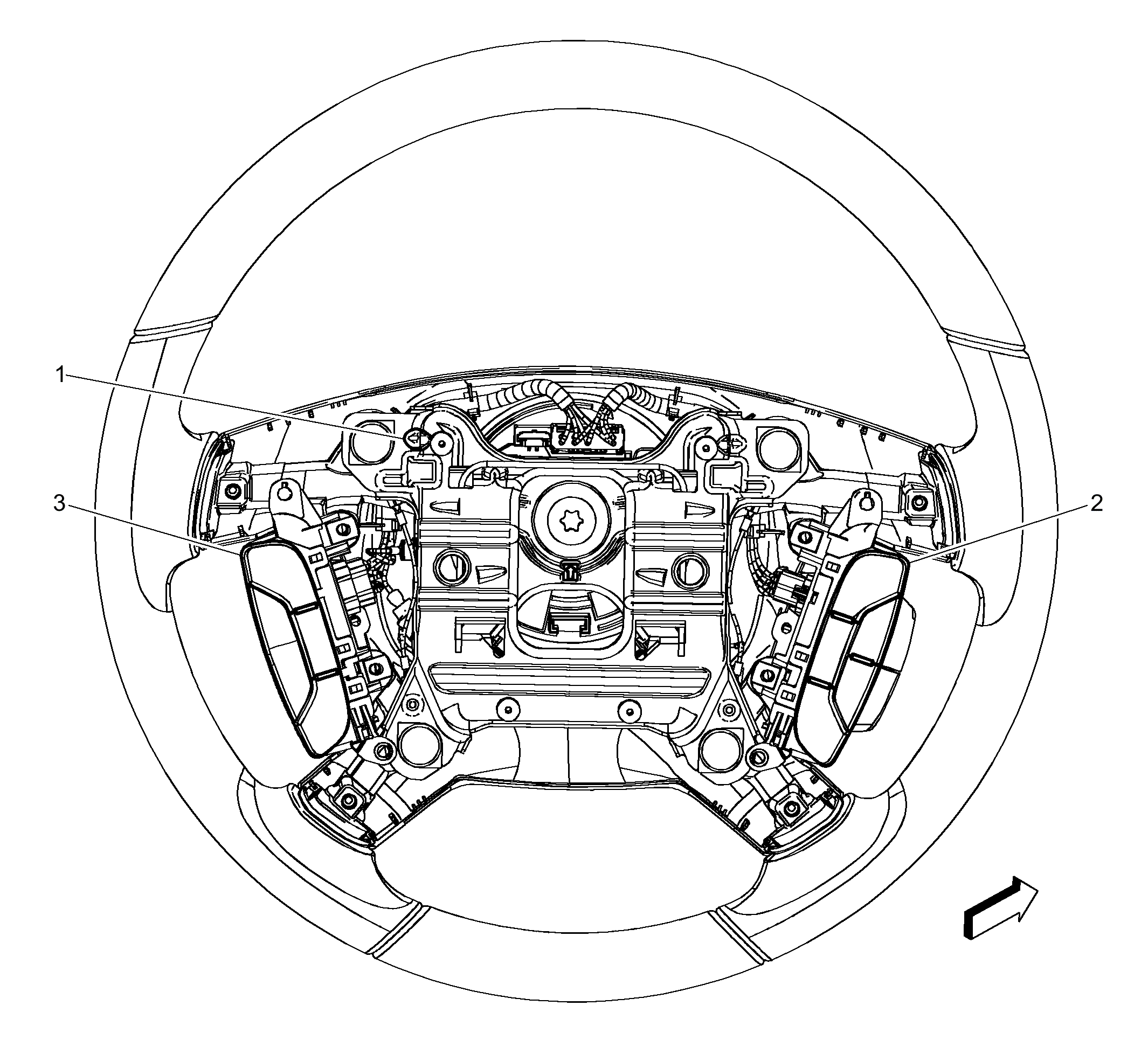

Fig 1: Steering Wheel Components
GM1863200Courtesy of GENERAL MOTORS COMPANY
