Automatic Transmission Electronic Components

Automatic Transmission Electronic Components

Items
1. Q8 Control Solenoid Valve Assembly
2. B15 Transmission Internal Mode Switch
3. B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor

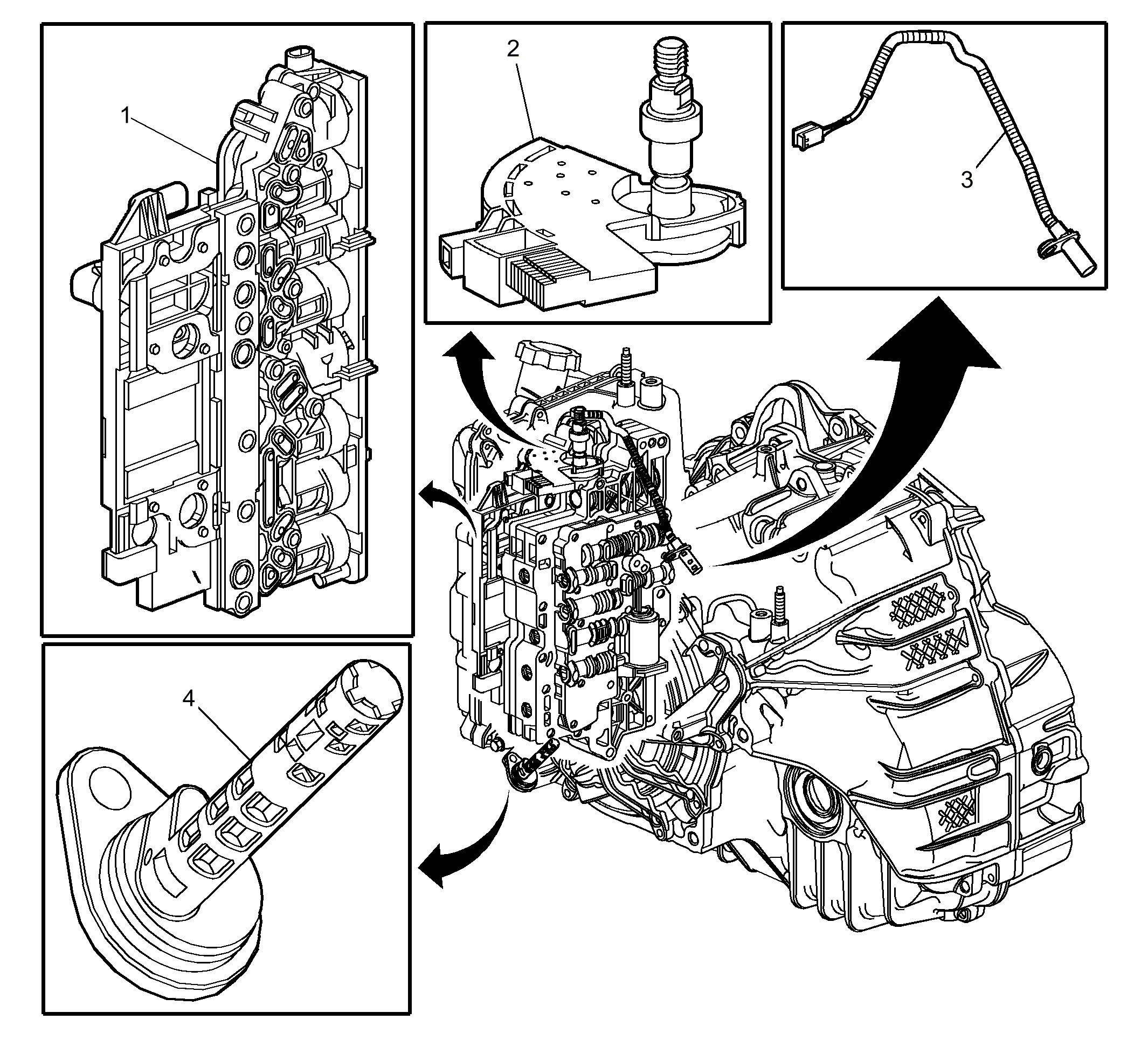

Fig 1: Automatic Transmission Electronic Components
GM2867926Courtesy of GENERAL MOTORS COMPANY
