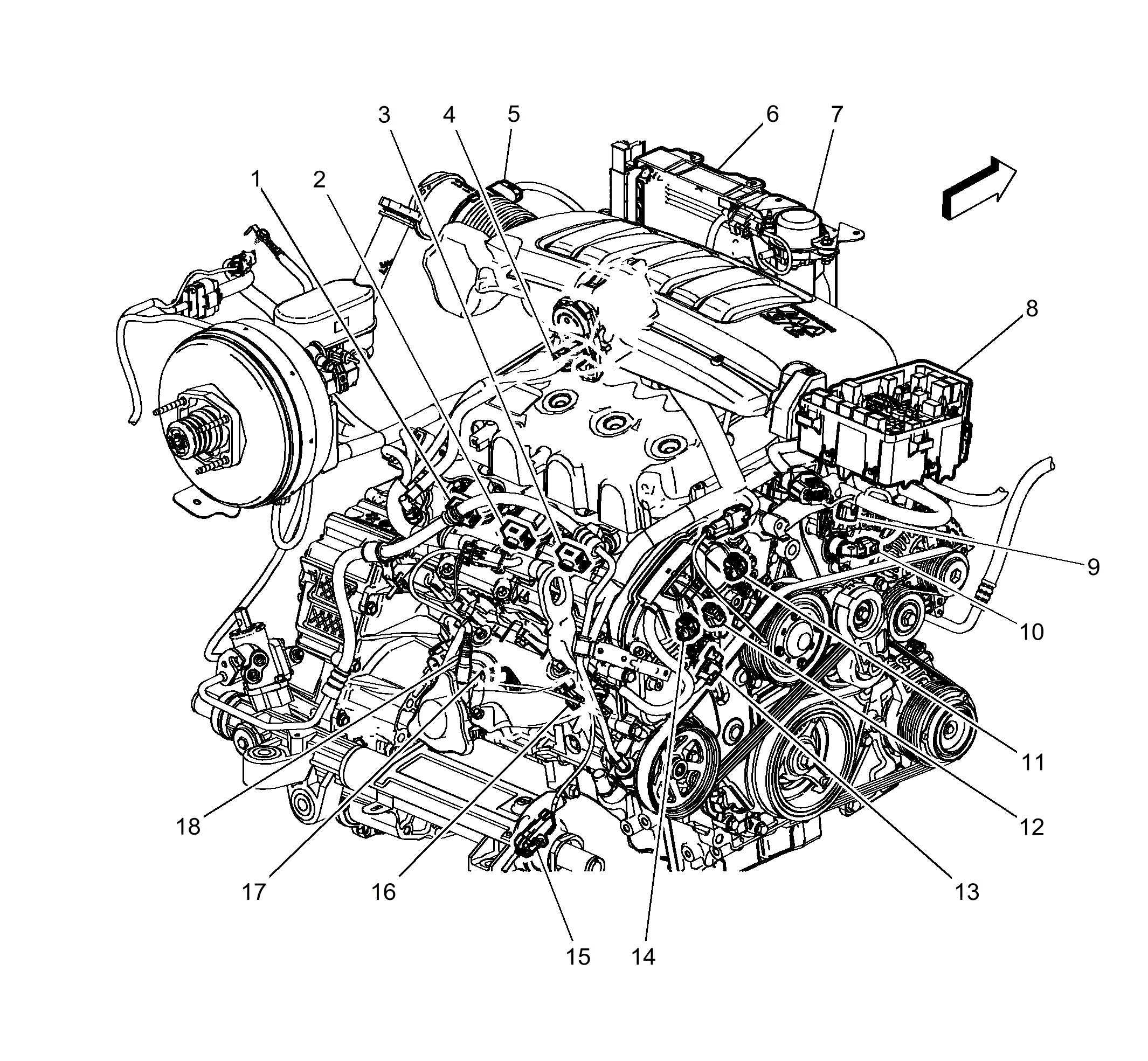

Engine Components - Right Rear
Engine Components - Right Rear
| Items |
|---|
| 1. T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 4. Q38 Throttle Body Q38 Throttle Body |
| 5. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 6. K20 Engine Control Module K20 Engine Control Module X1 |
| 7. G6 Brake Booster Pump - Auxiliary G6 Brake Booster Pump - Auxiliary |
| 8. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X4 (Battery Positive Junction Block) |
| 9. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (CMP Actuator Solen) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake |
| 10. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (CMP Actuator Solen) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust |
| 11. B23B Camshaft Position Sensor - Bank 1 Intake B23B Camshaft Position Sensor - Bank 1 Intake |
| 12. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (CMP Actuator Solen) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake |
| 13. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (CMP Actuator Solen) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust |
| 14. B23A Camshaft Position Sensor - Bank 1 Exhaust B23A Camshaft Position Sensor - Bank 1 Exhaust |
| 15. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
| 16. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 17. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 18. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
