Instrument Cluster Replacement (Traverse)

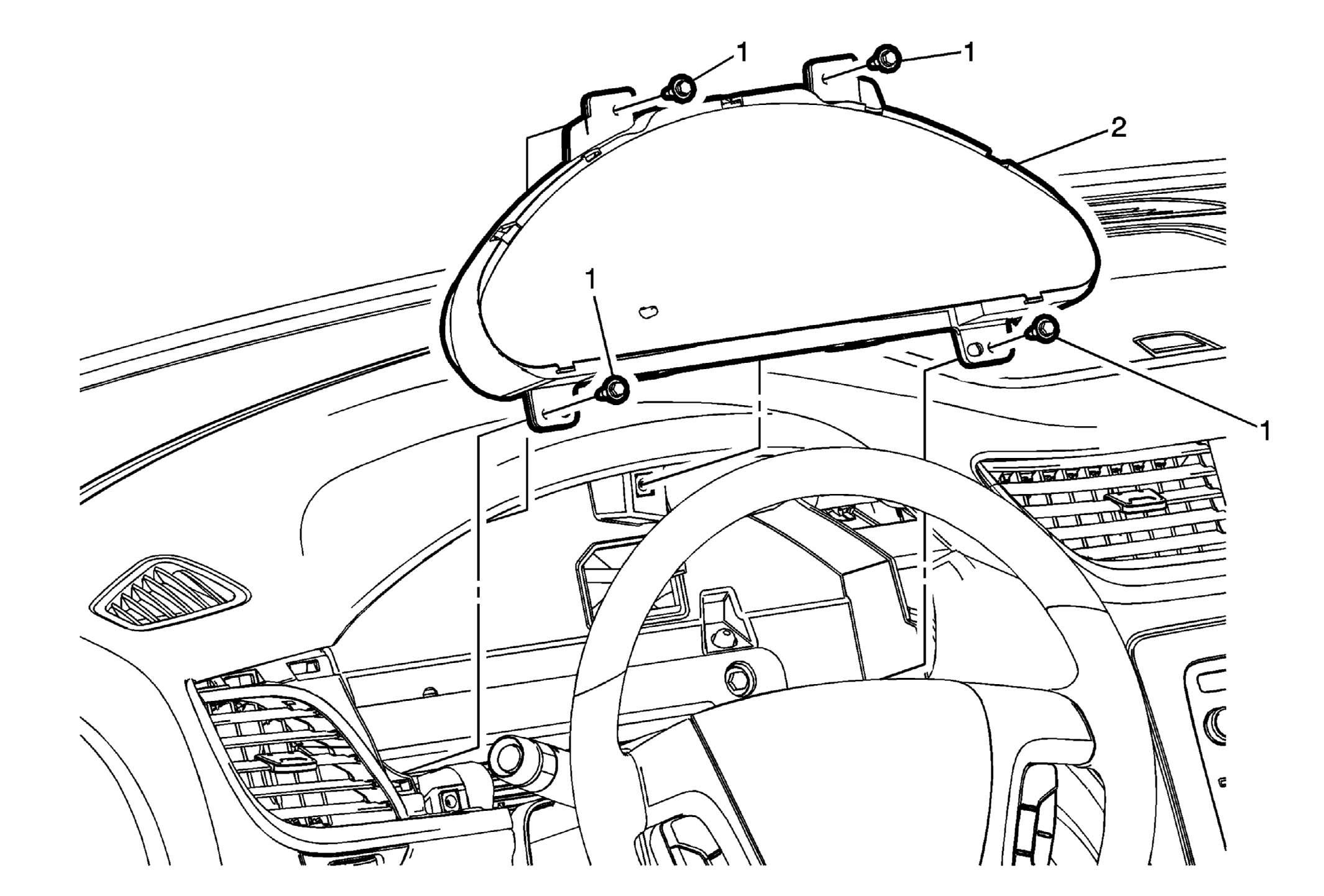

Fig 1: Instrument Cluster (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Replacement (Traverse) .
1	Instrument Cluster Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Cluster Assembly Procedures Disconnect the electrical connections. After replacing the instrument panel cluster, remove the instrument panel cluster fuse for a few seconds and then install the fuse. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Replacement (Traverse) .

Instrument Cluster Screw (Qty: 4)

CAUTION:

Instrument Cluster Assembly

Procedures

Disconnect the electrical connections.
After replacing the instrument panel cluster, remove the instrument panel cluster fuse for a few seconds and then install the fuse.
Refer to Control Module References for programming and setup information.
