Installation Procedure

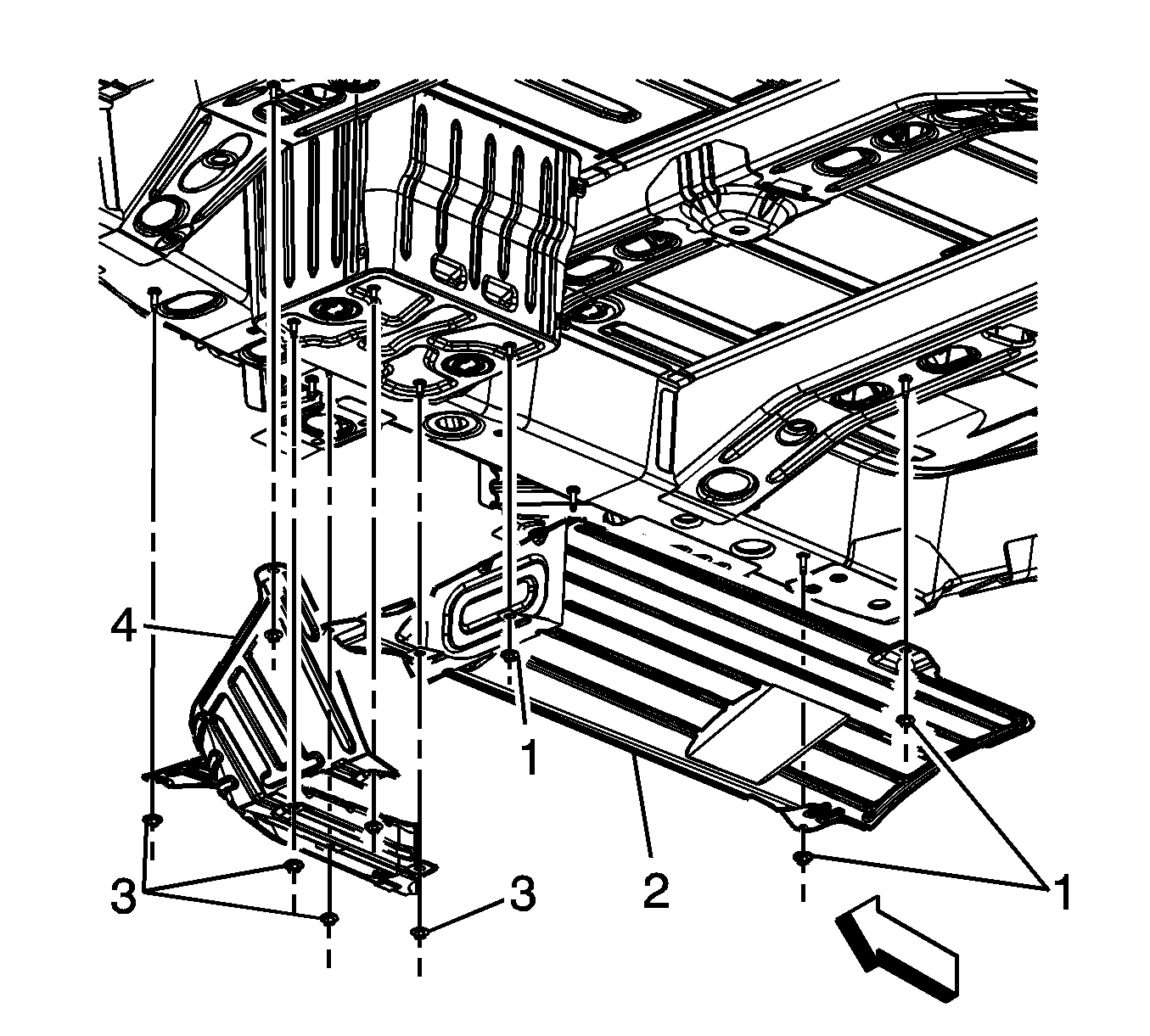

    Fig 1: Exhaust Muffler Heat Shield
    GM1861589Courtesy of GENERAL MOTORS COMPANY
  1. Position the exhaust muffler heat shield (2) to the floor panel.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust muffler heat shield nuts (1).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  3. Position the exhaust muffler front heat shield (4) to the floor panel.
  4. Install the exhaust muffler front heat shield nuts (3).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  5. Install the muffler assembly. Refer to Exhaust Muffler Replacement (NB5) Exhaust Muffler Replacement (NEA/NED or N10) .
