Three-Way Catalytic Converter Replacement (LLT)

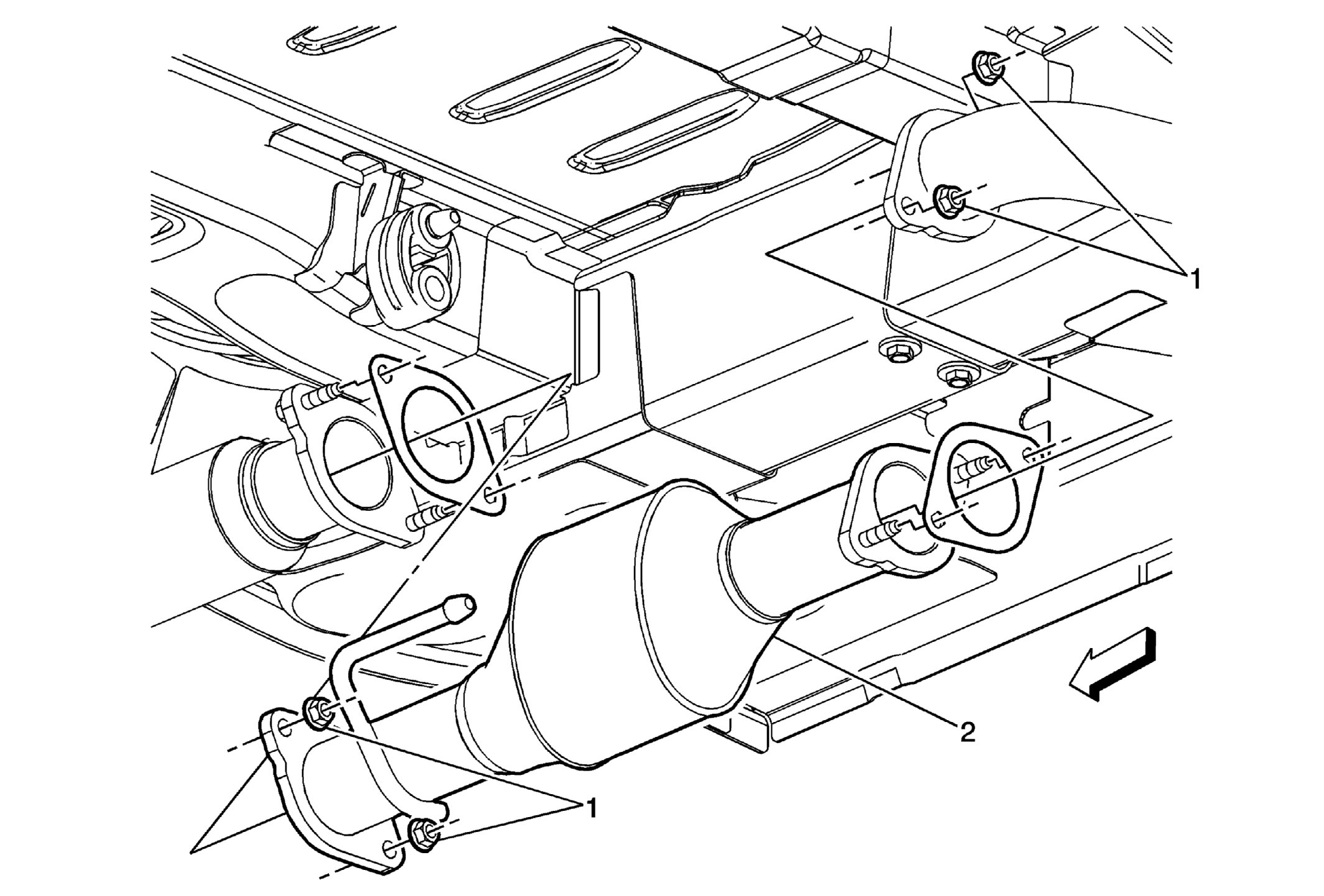

Fig 1: Three-Way Catalytic Converter (LLT)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Three-Way Catalytic Converter Procedure Disengage the hanger. Remove and discard the gaskets.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Nut (Qty: 4)

CAUTION:

Tighten
50 N.m (37 lb ft)

Three-Way Catalytic Converter

Procedure
