Fuel Pump Power Control Module Replacement

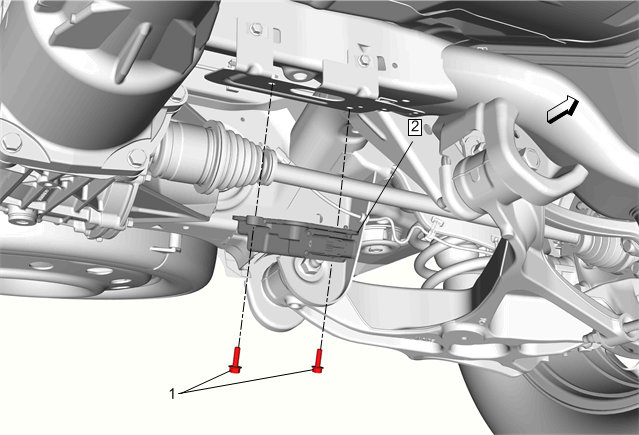

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle
1	Fuel Pump Power Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing the fuel pump power control module, program the control module. Control Module References

Callout

Component Name

Fuel Pump Power Control Module Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
If replacing the fuel pump power control module, program the control module. Control Module References
