Front Seat Belt Buckle Replacement

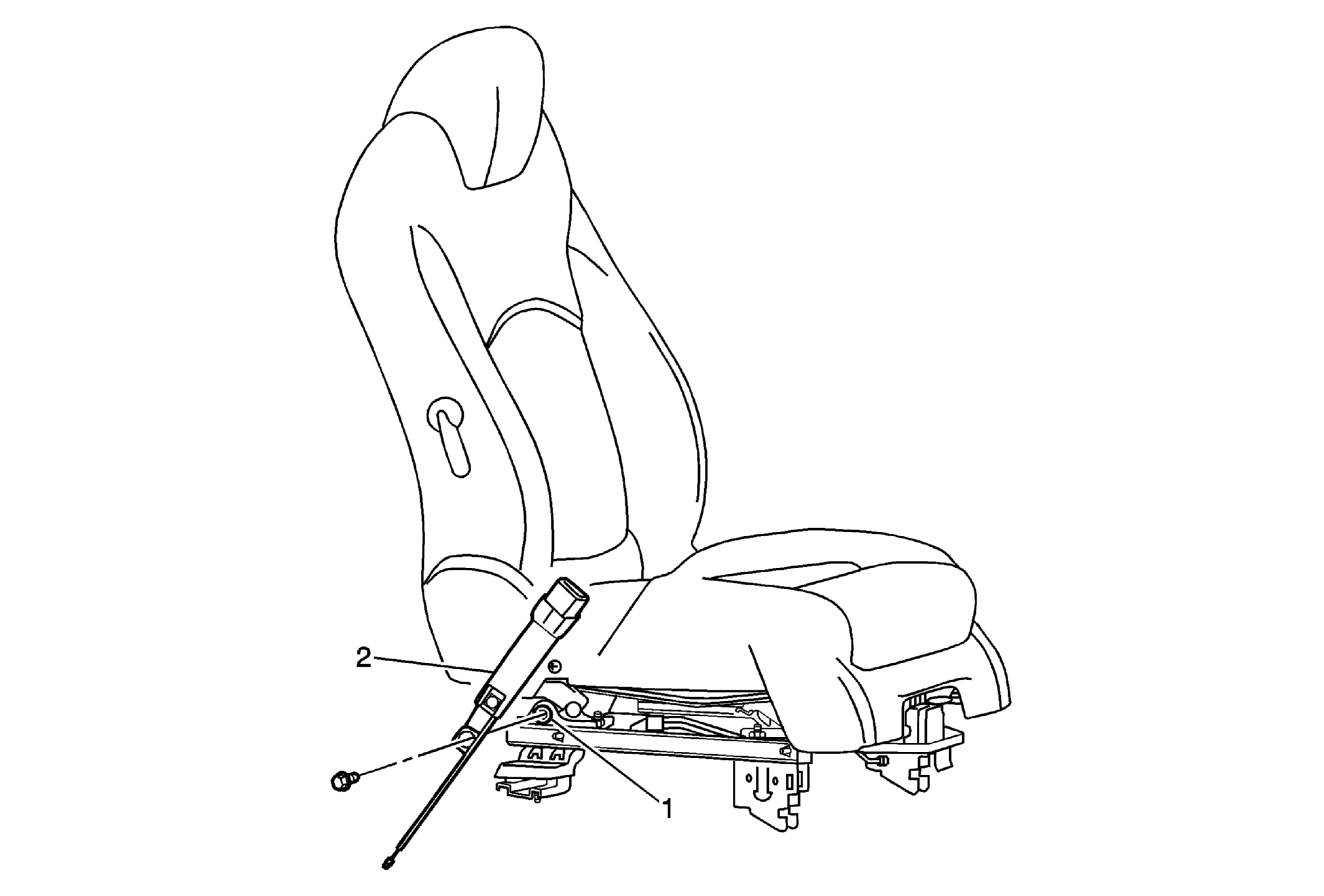

Fig 1: Front Seat Belt Buckle
GM1853775Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Bucket Seat Removal and Installation .
1 Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
52 N.m (38 lb ft)
2 Seat (Buckle Side) Belt Assembly
Procedure
Disconnect the electrical connector.
