Rear Seat Center Retractor Side Belt Replacement

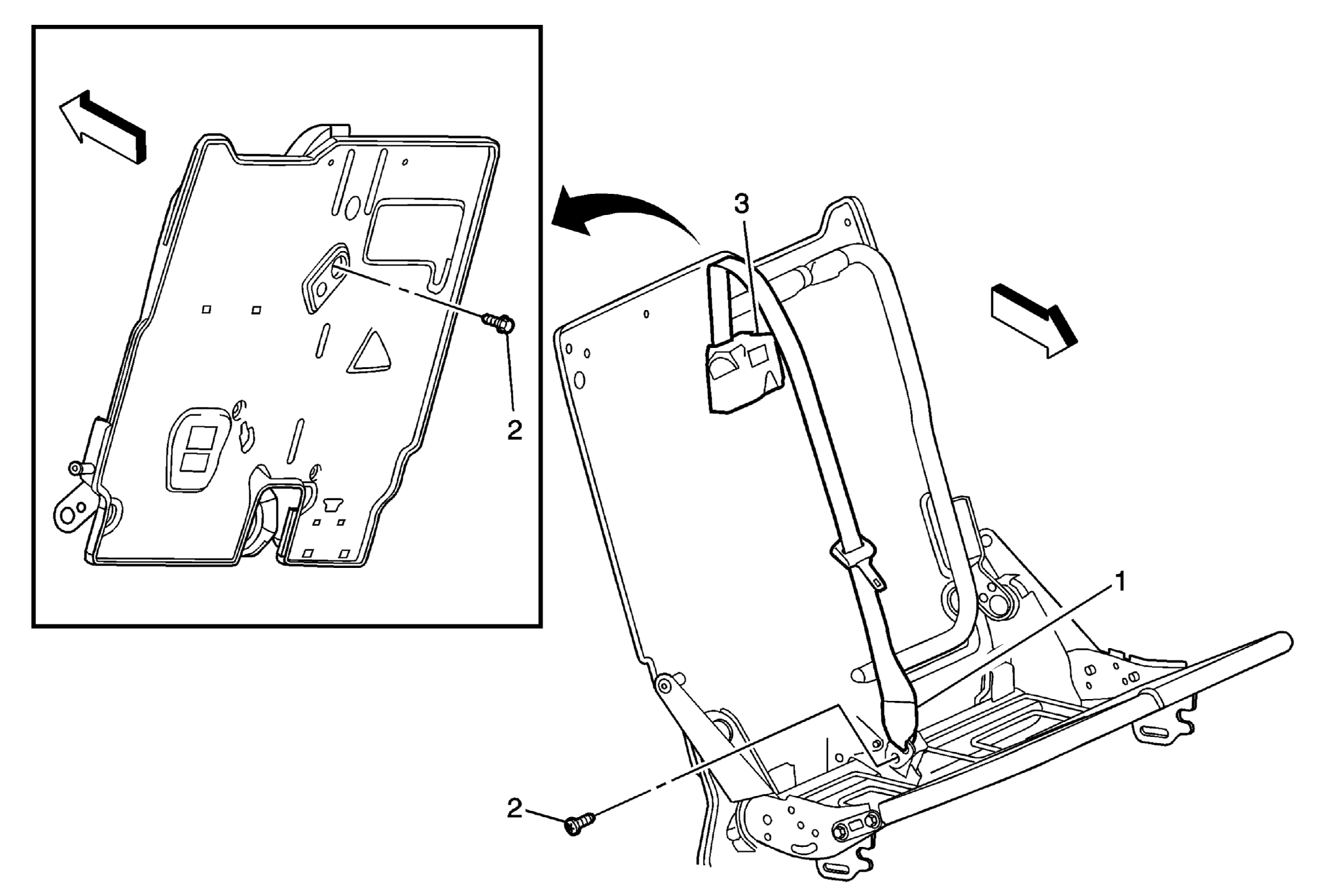

Fig 1: Rear Seat Center Retractor Side Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove rear seat. Refer to Rear Seat Removal and Installation (60%)Rear Seat Removal and Installation (40%) . Remove rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest)Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest)Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1	Rear Seat Center Belt Retractor Assembly TIP: Tilt 40 percent split forward for access.
2	Rear Seat Center Belt Retractor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 52 N.m (38 lb ft)
3	Rear Seat Center Belt Assembly
