Preliminary Procedures
- For the Acadia, remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia)Front Bumper Fascia Replacement (Enclave)Front Bumper Fascia Replacement (Traverse)
.
For the Enclave, remove the front air deflector. Refer to Front Air Deflector Replacement (Enclave)Front Air Deflector Replacement (Traverse)
.
For the Traverse, remove the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse)
.
- Place drain pans under the vehicle.
- Remove as much power steering fluid from the power steering fluid reservoir as possible.
|

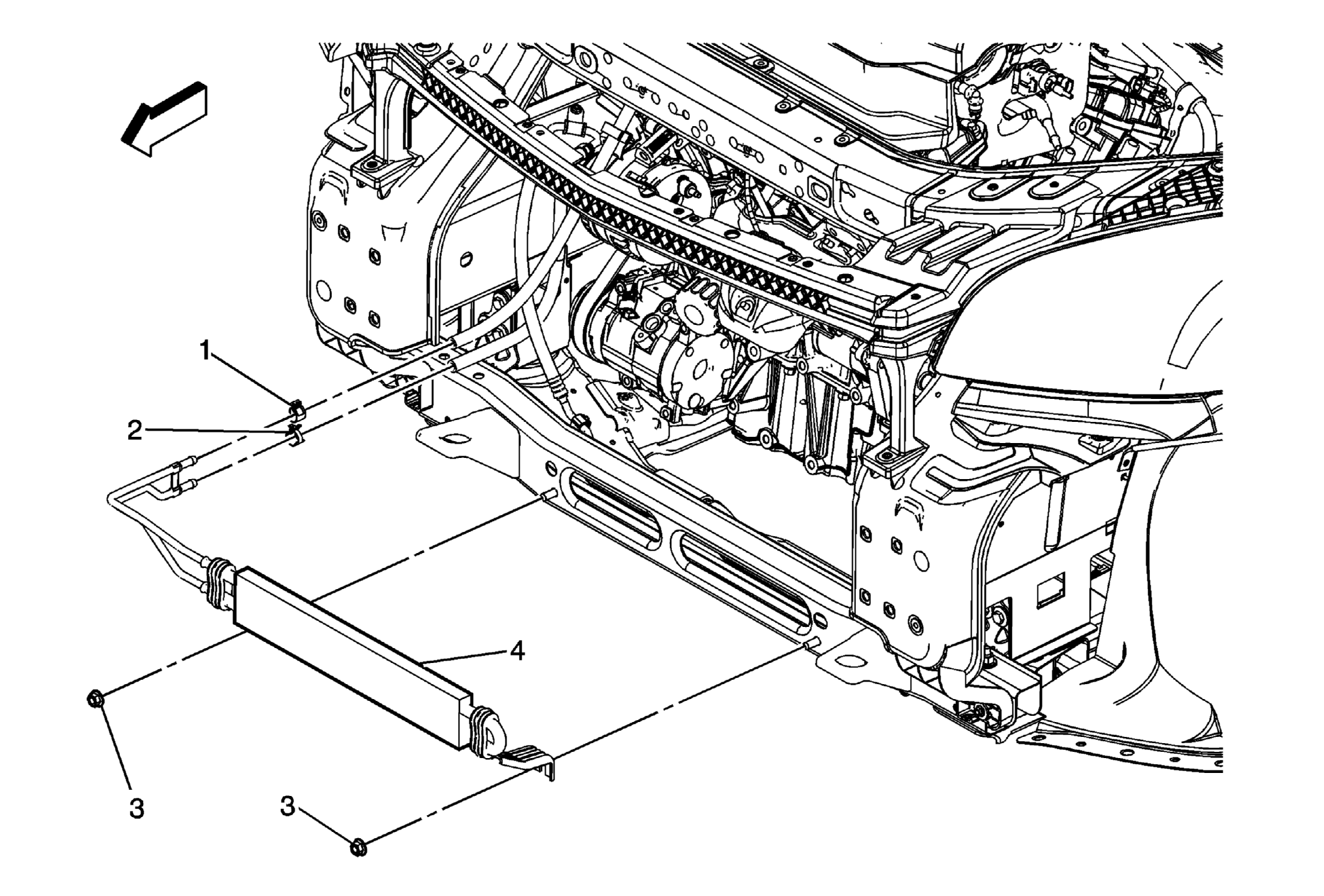

| 1 |
Power Steering Reservoir Inlet Hose Clamp |
| 2 |
Power Steering Cooler Hose Clamp |
| 3 |
Power Steering Fluid Cooler Nuts (Qty: 2)
Tighten
30 N.m (22 lb in) |
| 4 |
Power Steering Fluid Cooler Procedure
- Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
- Clean any excess power steering fluid from the vehicle.
|
