Steering Gear Valve Solenoid Replacement

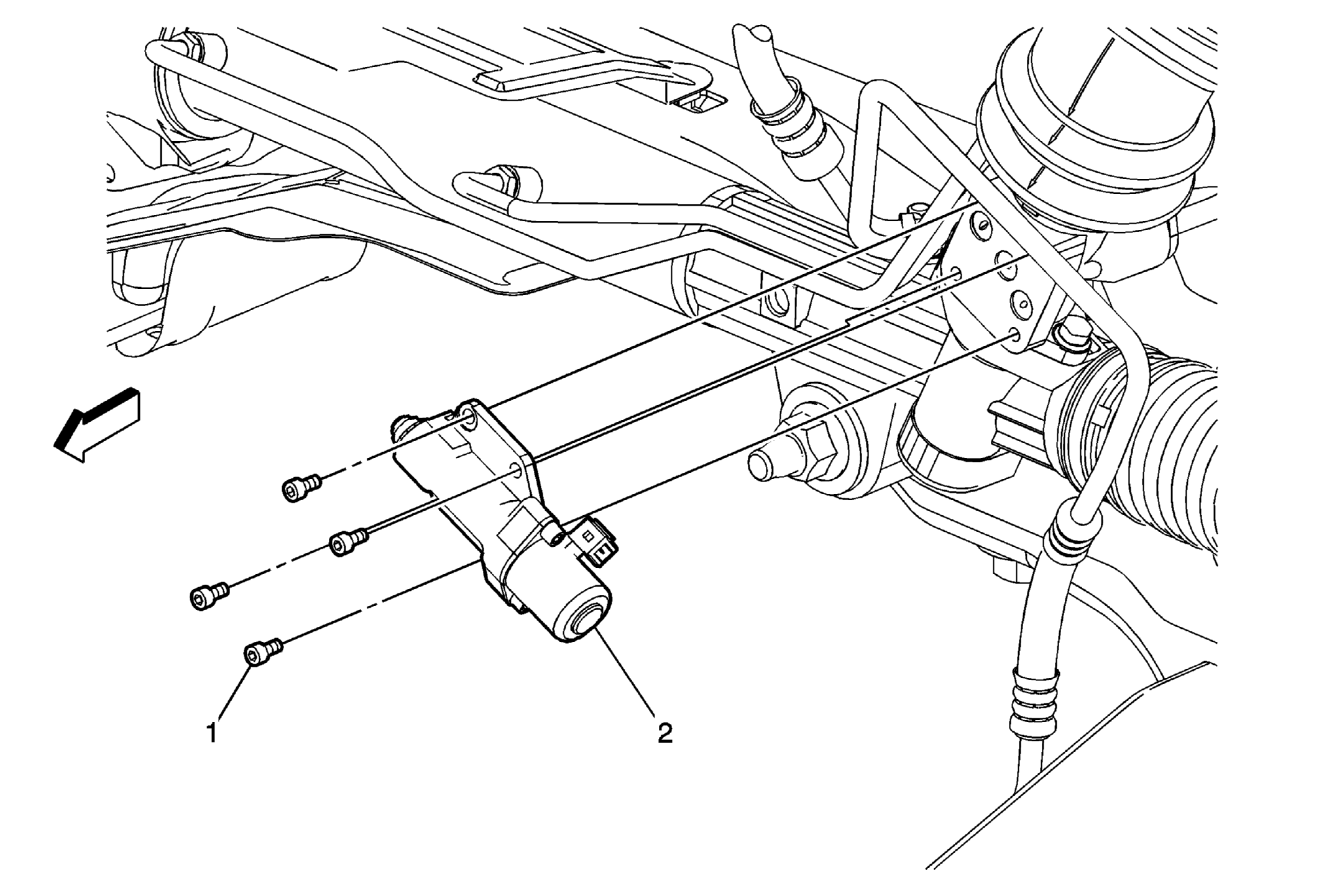

Fig 1: Steering Gear Valve Solenoid

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Hoist the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Steering Gear Valve Solenoid Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Steering Gear Valve Solenoid Procedure Disconnect any electrical connectors as needed. Transfer or replace any O-ring seals as needed.

Callout

Component Name

Preliminary Procedure
Hoist the vehicle. Refer to Lifting and Jacking the Vehicle .

Steering Gear Valve Solenoid Bolt (Qty: 4)

CAUTION:

Tighten
8 N.m (71 lb in)

Steering Gear Valve Solenoid

Procedure
