Ignition and Start Switch Housing Replacement

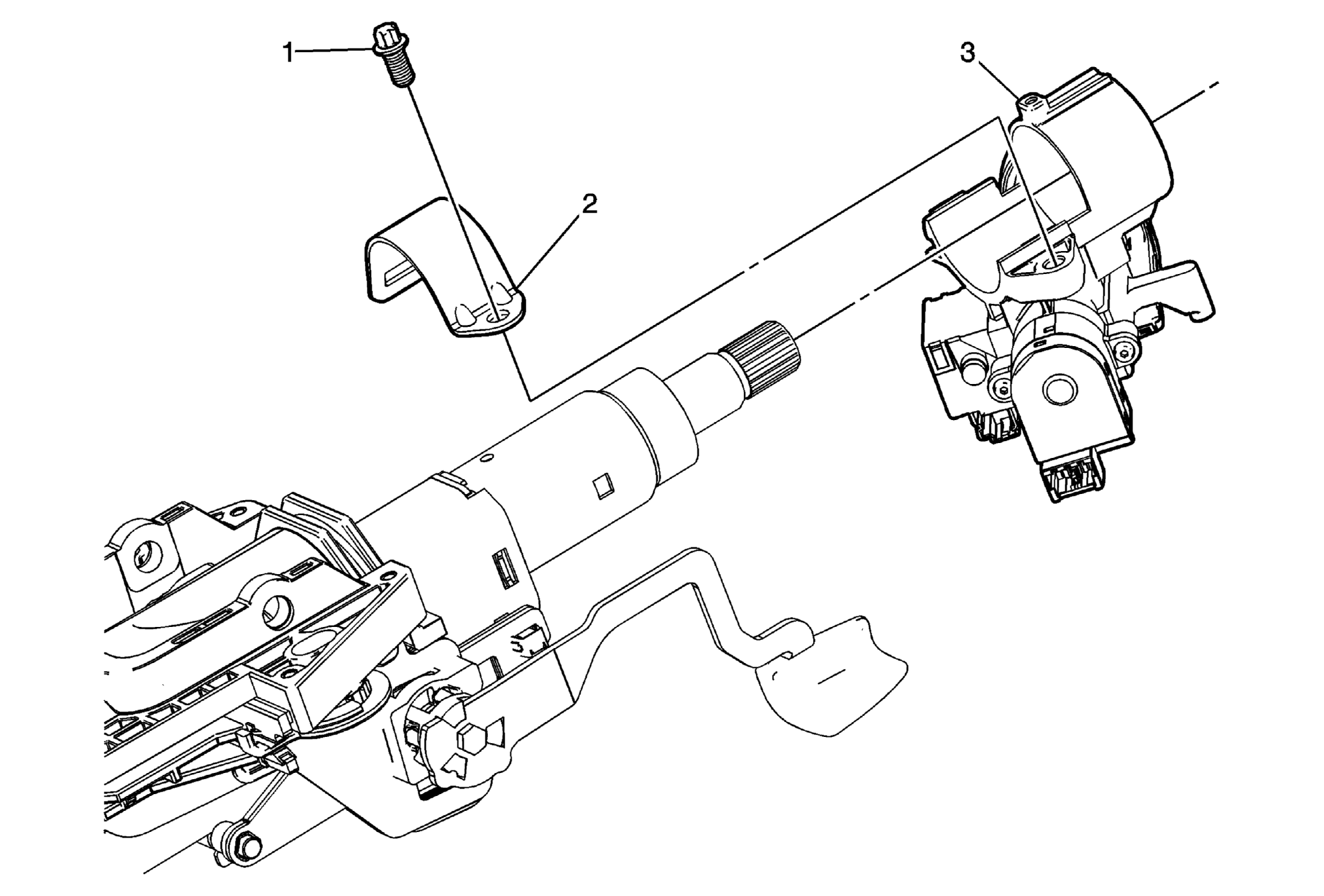

Fig 1: Ignition and Start Switch Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
1	Ignition and Start Switch Housing Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Ignition and Start Switch Housing Strap
3	Ignition and Start Switch Housing Procedure Disconnect any electrical connectors as needed. Transfer any parts as needed.
