Body Control Module Replacement

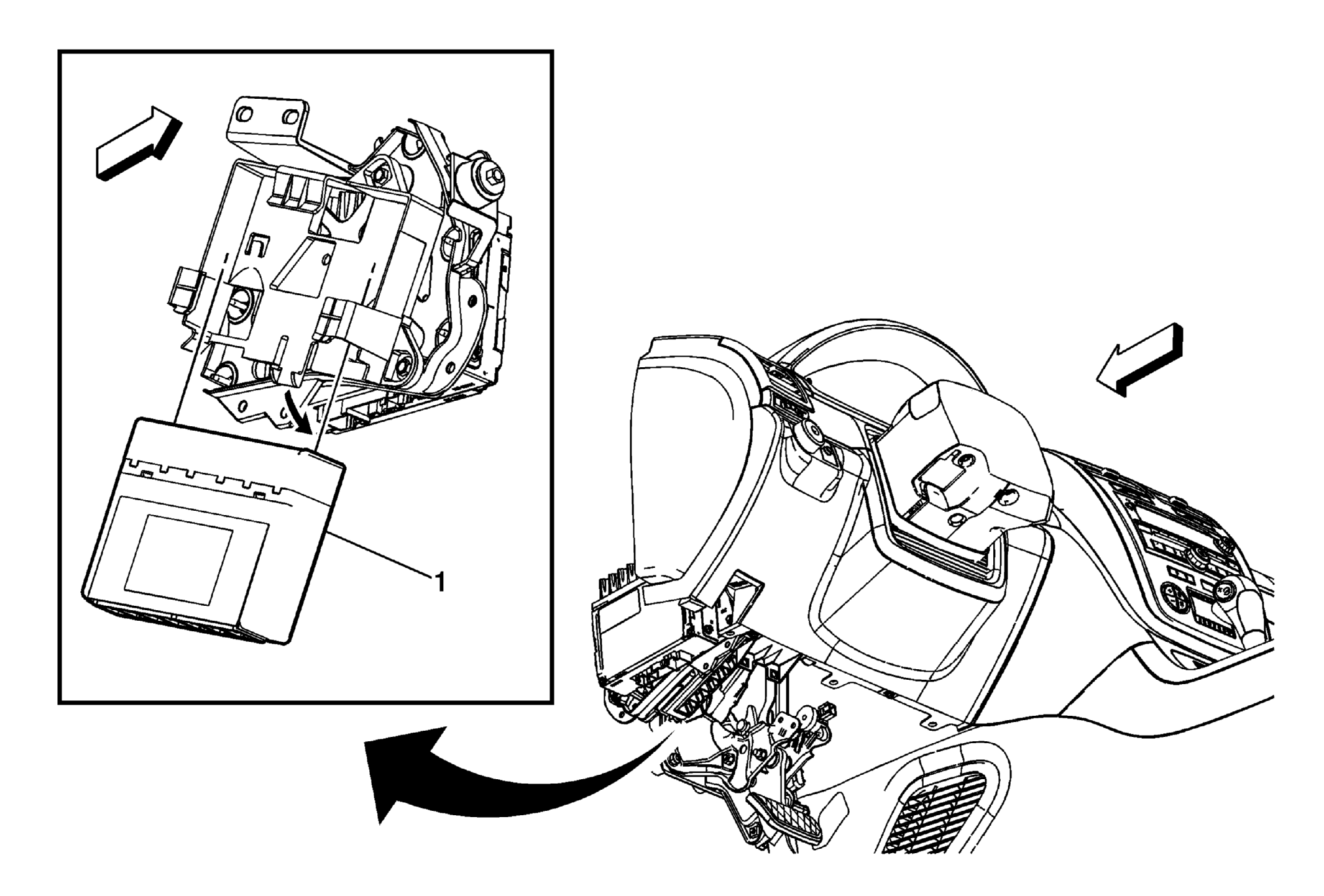

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . Remove the driver side knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .
1	Body Control Module Procedure Disconnect the electrical connectors. Reprogram the module if replaced. Refer to Control Module References . TIP: Push tab to release the body control module from the bracket.

Callout

Component Name

Preliminary Procedure

Body Control Module

Procedure

TIP: Push tab to release the body control module from the bracket.
