Hybrid Powertrain Control Module 2 Replacement

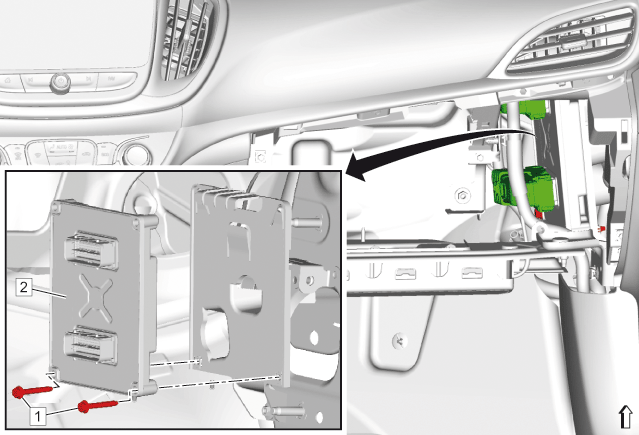

Fig 1: Hybrid Powertrain Control Module 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection Instrument Panel Compartment Replacement Instrument Panel Lower Trim Panel Insulator Replacement
1	Hybrid Powertrain Control Module 2 Bracket Bolts (Qty: 2) CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Hybrid Powertrain Control Module 2 Procedure Disconnect the electrical connectors. Remove the module from the retaining tab on the bracket. Programming and Setup Control Module References

Callout

Component Name

Preliminary Procedures

Hybrid Powertrain Control Module 2 Bracket Bolts (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Hybrid Powertrain Control Module 2

Procedure
