Communication Interface Module Replacement

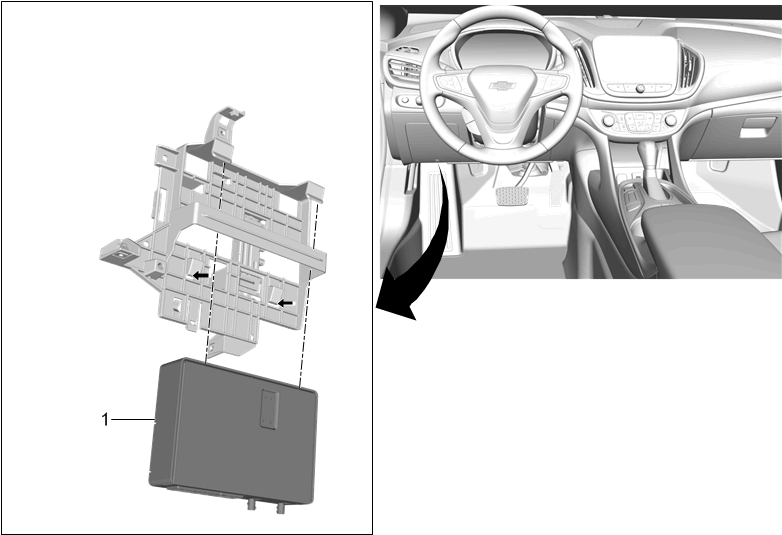

Fig 1: Communication Interface Module
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Communication Interface Module
Procedure
Disconnect the electrical connectors.
Push the retaining tabs outward and slide the module downward.
Perform the necessary programming and setup procedure:
Control Module References
