Remote Control Door Lock Receiver Replacement (Hatchback)

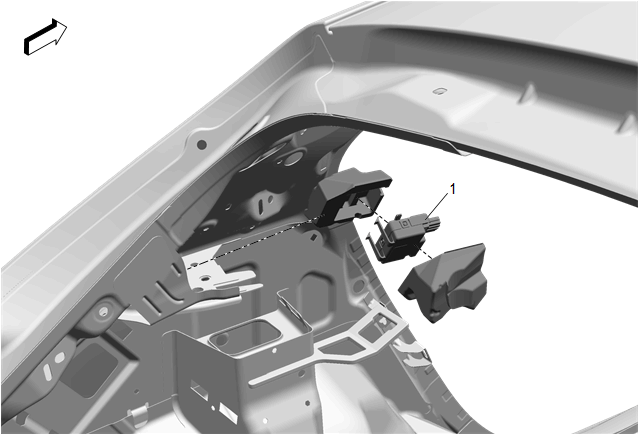

GM5125020
Callout Component Name
Preliminary Procedure
Body Lock Pillar Upper Trim Panel Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Remove the foam block.
  3. Remove the remote control door lock receiver from the foam block.
