Serial Data Gateway Module Replacement (LHD)

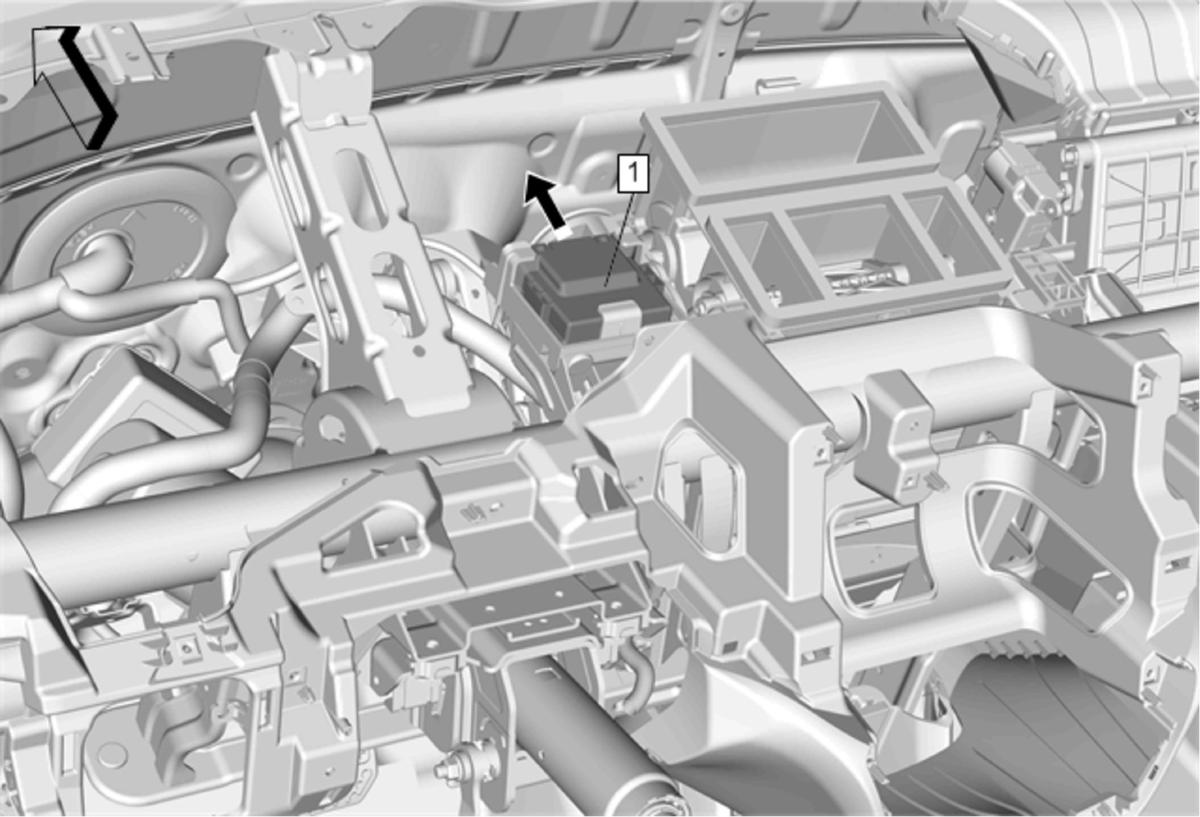

GM4580493Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Upper Trim Panel Replacement
1 Serial Data Gateway Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tab.
  3. Perform the necessary programming and setup procedure:Control Module References
