Front View Camera Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

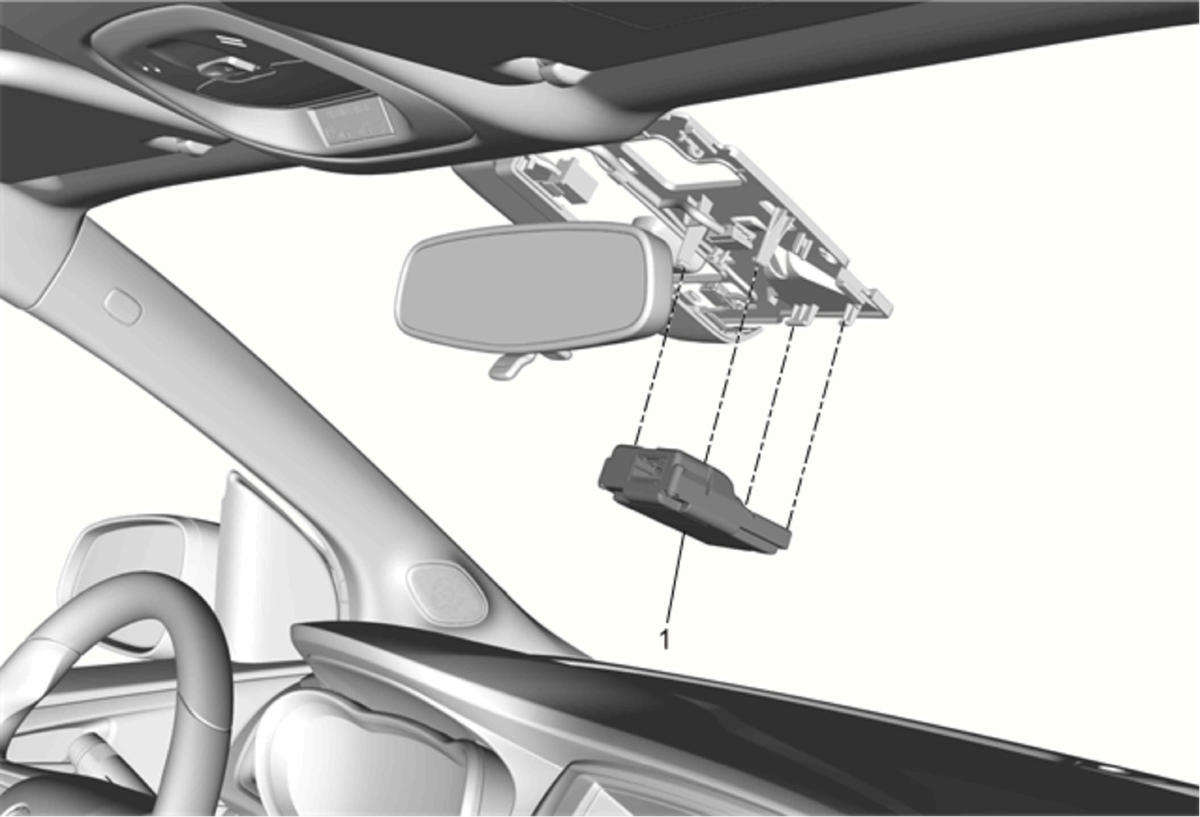

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Prepare front view camera for replacement. Refer to Control Module References . Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement
1	Front View Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward. Disconnect the electrical connector. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Prepare front view camera for replacement. Refer to Control Module References .
Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
