Multifunction Relay Module Bracket Replacement (With Front View Camera)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

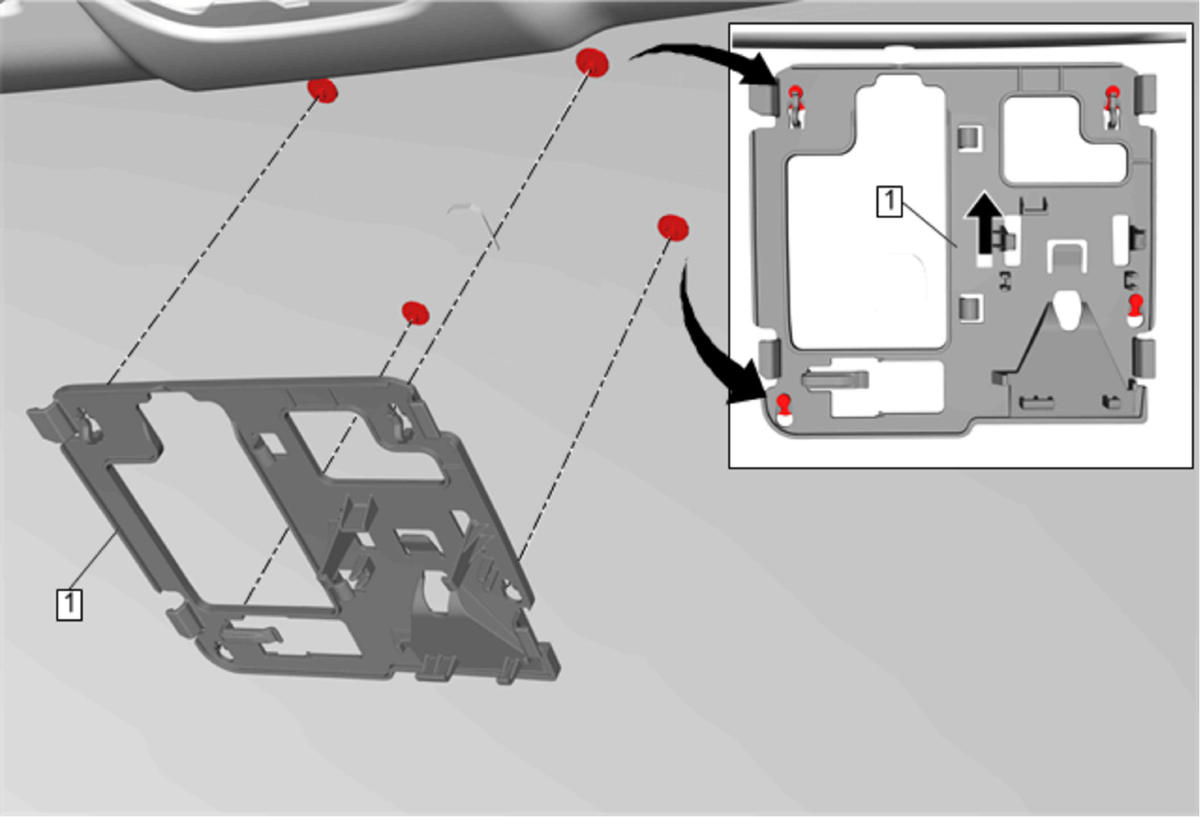

Fig 1: Multifunction Relay Module Bracket (With Front View Camera)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front View Camera Replacement Inside Air Moisture and Windshield Temperature Sensor Replacement {If equipped} Inside Rearview Mirror Replacement
1	Multifunction Relay Module Bracket Procedure Unclip wiring as necessary. Slide the bracket upward to disengage tabs, gently pull from windshield.

Callout

Component Name

Preliminary Procedure

Front View Camera Replacement
Inside Air Moisture and Windshield Temperature Sensor Replacement {If equipped}
Inside Rearview Mirror Replacement

Multifunction Relay Module Bracket

Procedure

Unclip wiring as necessary.
Slide the bracket upward to disengage tabs, gently pull from windshield.
