Parking Assist Control Module Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

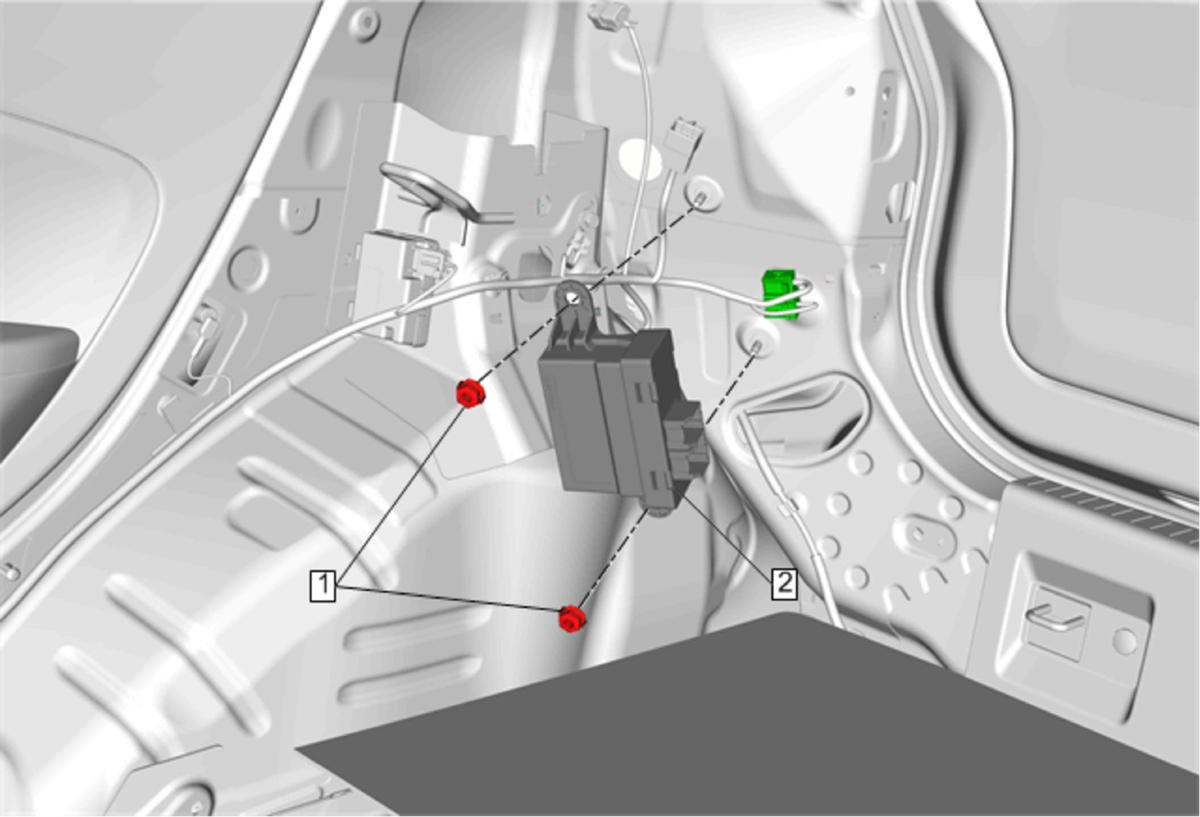

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Prepare parking assist control module for replacement. Refer to Control Module References . Remove the right side of quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Park Assist Alarm Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Prepare parking assist control module for replacement. Refer to Control Module References .
Remove the right side of quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Park Assist Alarm Control Module Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
For programming and set up, refer to Control Module References .
