Rear Object Sensor Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

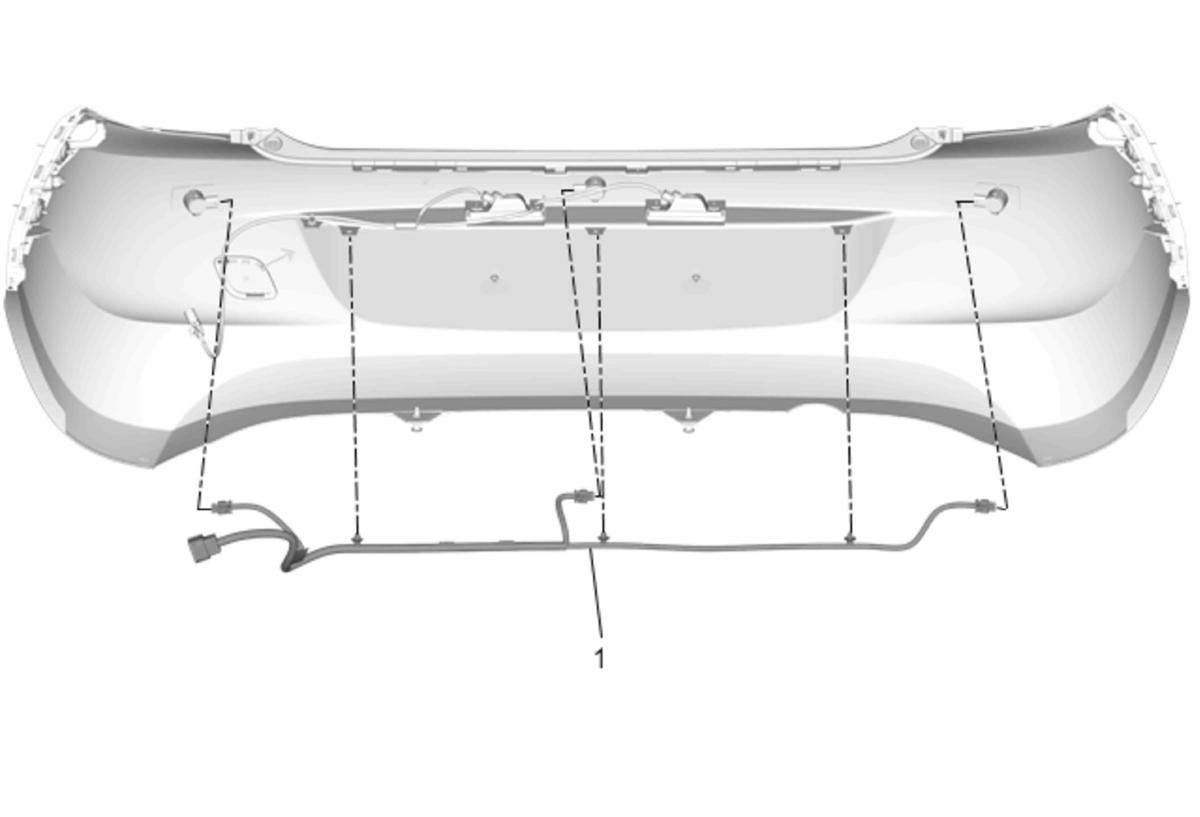

Fig 1: Rear Object Sensor Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (Active) .
1	Rear Object Sensor Wiring Harness Procedure Disconnect the rear object sensor wiring harness electrical connectors from the rear object sensors. Disconnect the rear object sensor wiring harness electrical connectors from the rear lamps. Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.

Callout

Component Name

Preliminary Procedures
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (Active) .

Rear Object Sensor Wiring Harness

Procedure

Disconnect the rear object sensor wiring harness electrical connectors from the rear object sensors.
Disconnect the rear object sensor wiring harness electrical connectors from the rear lamps.
Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.
