Rearview Camera Image Display Module Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

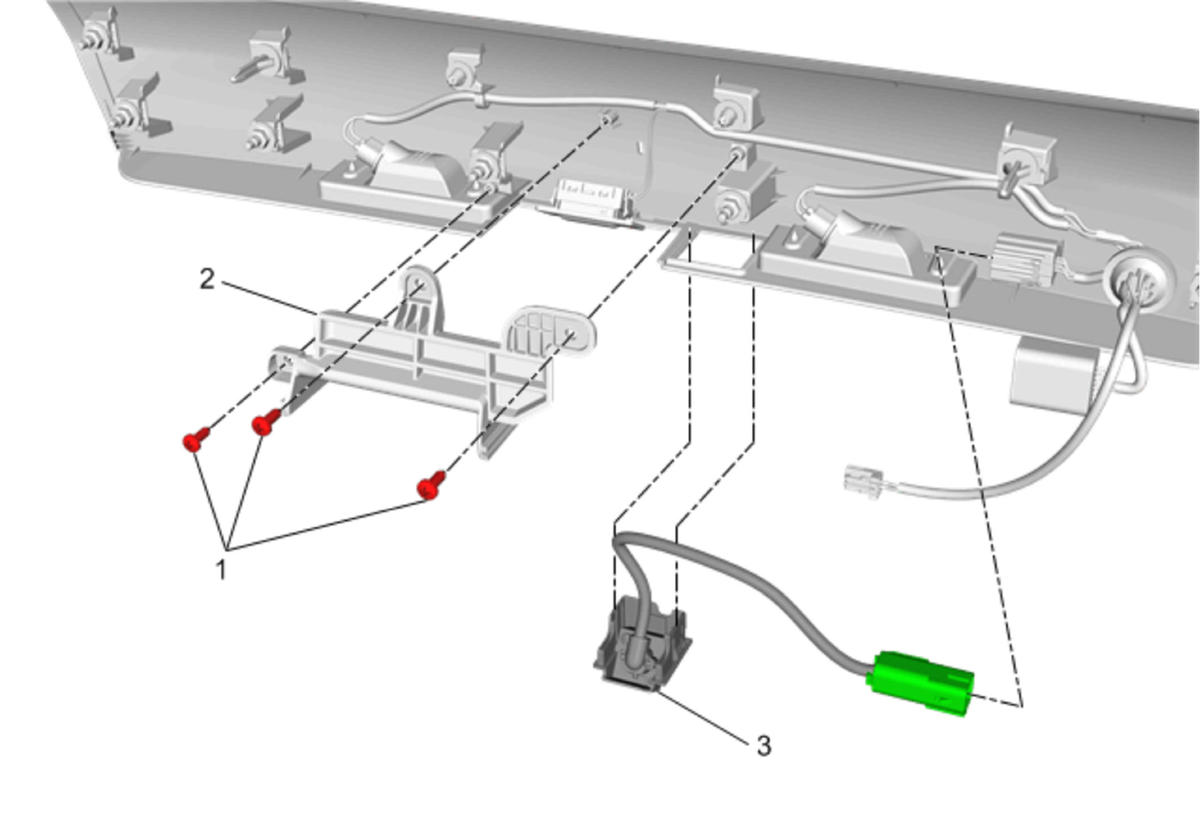

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate outside handle. Refer to Liftgate Outside Handle Replacement . |
|
| 1 | Rear Closure Release Switch Bracket Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Rear Closure Release Switch Bracket |
| 3 | Rearview Driver Information Camera |
