Side Object Sensor Replacement (Rear)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

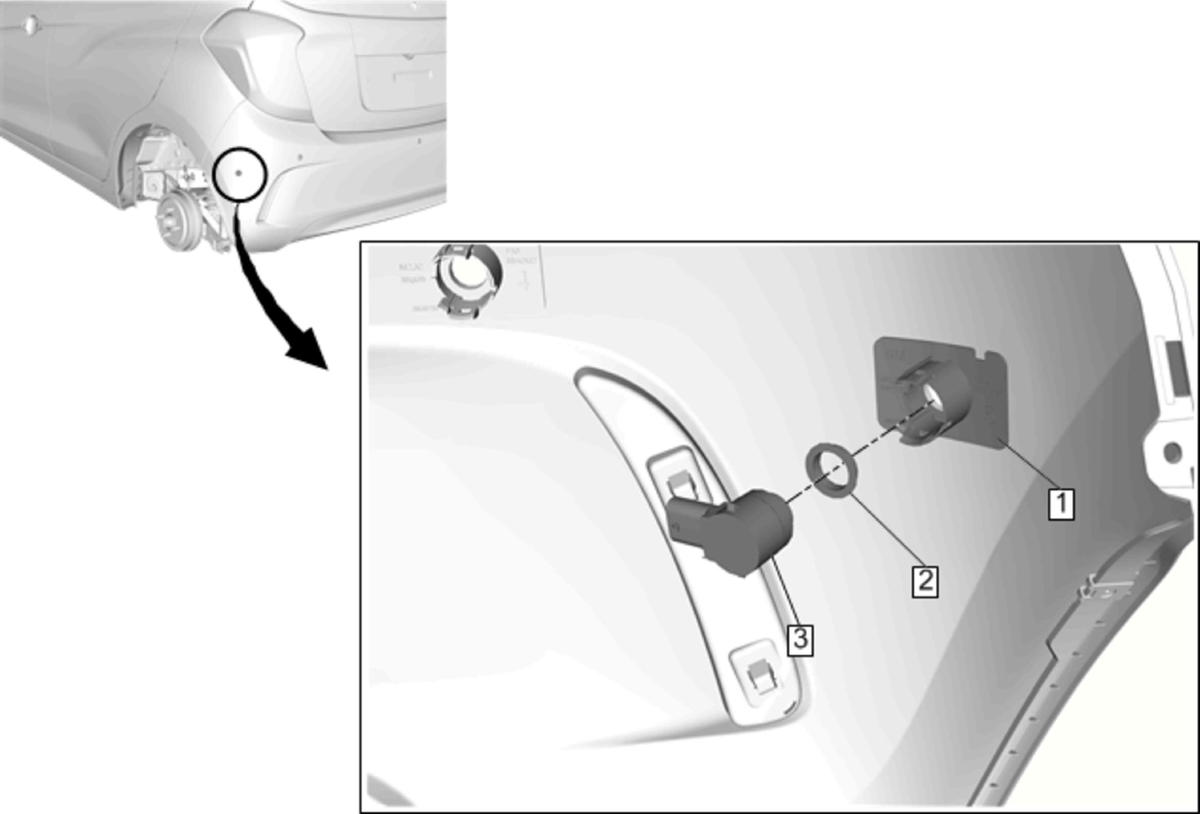

Fig 1: Side Object Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
1	Side Object Sensor Bracket
2	Side Object Sensor Ring
3	Side Object Sensor Procedure Disconnect the electrical connector from the side object sensor. Lift the locking tabs on the bracket and remove side object sensor.
