Body Control Module Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel tie bar brace - right. Instrument Panel Tie Bar Brace Replacement

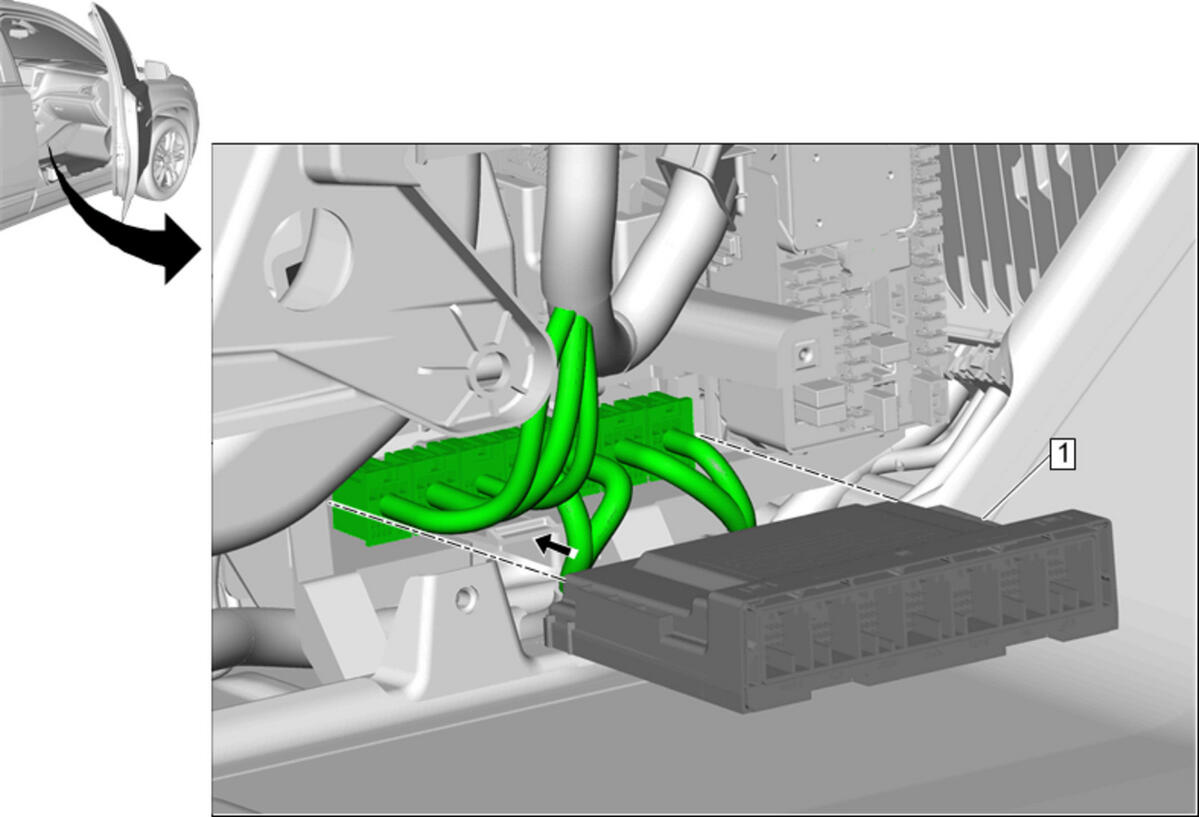

1	Body Control Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove the instrument panel tie bar brace - right. Instrument Panel Tie Bar Brace Replacement

Body Control Module

Procedure
