Serial Data Gateway Module Replacement

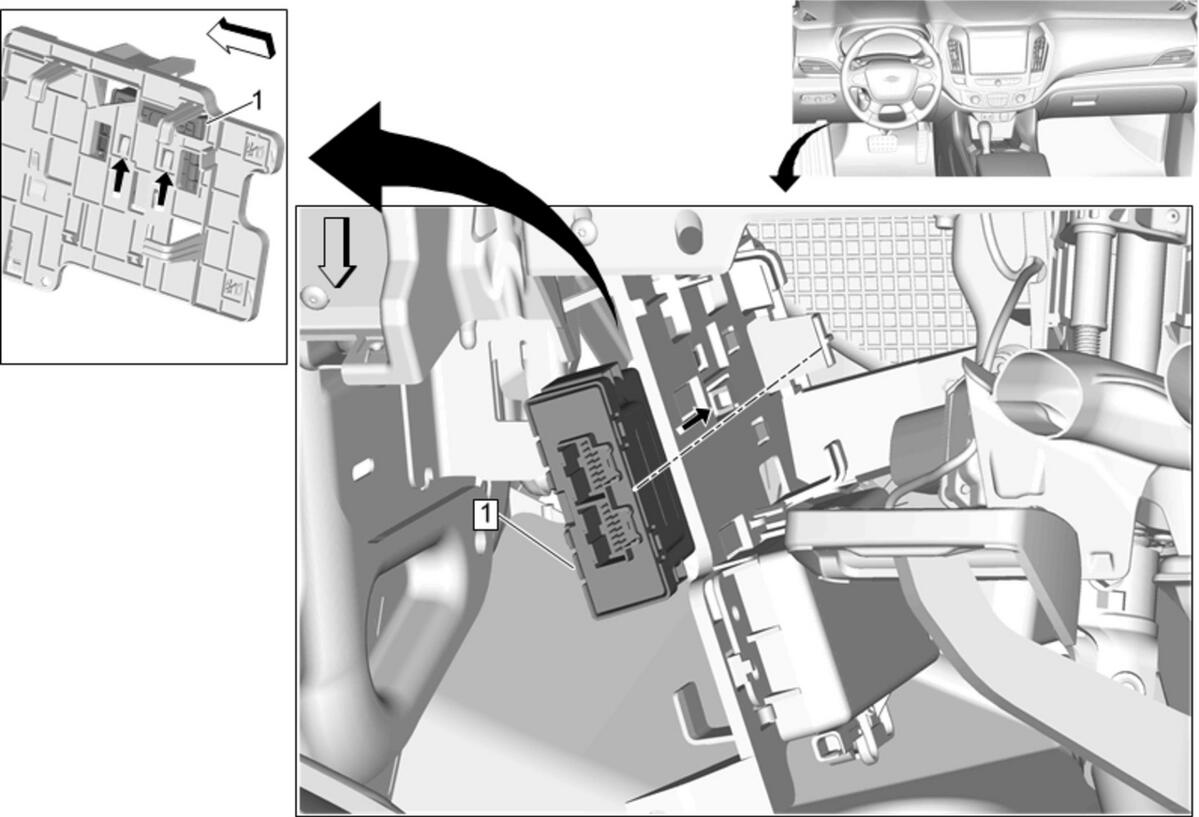

GM4757222
Callout Component Name
Preliminary Procedure
Communication Interface Module Replacement
1 Serial Data Gateway Module

Procedure

  1. Disconnect the electrical connectors.
  2. Use a flat bladed tool to release the 3 retaining tabs.
  3. Perform the necessary programming and setup procedure:Control Module References
