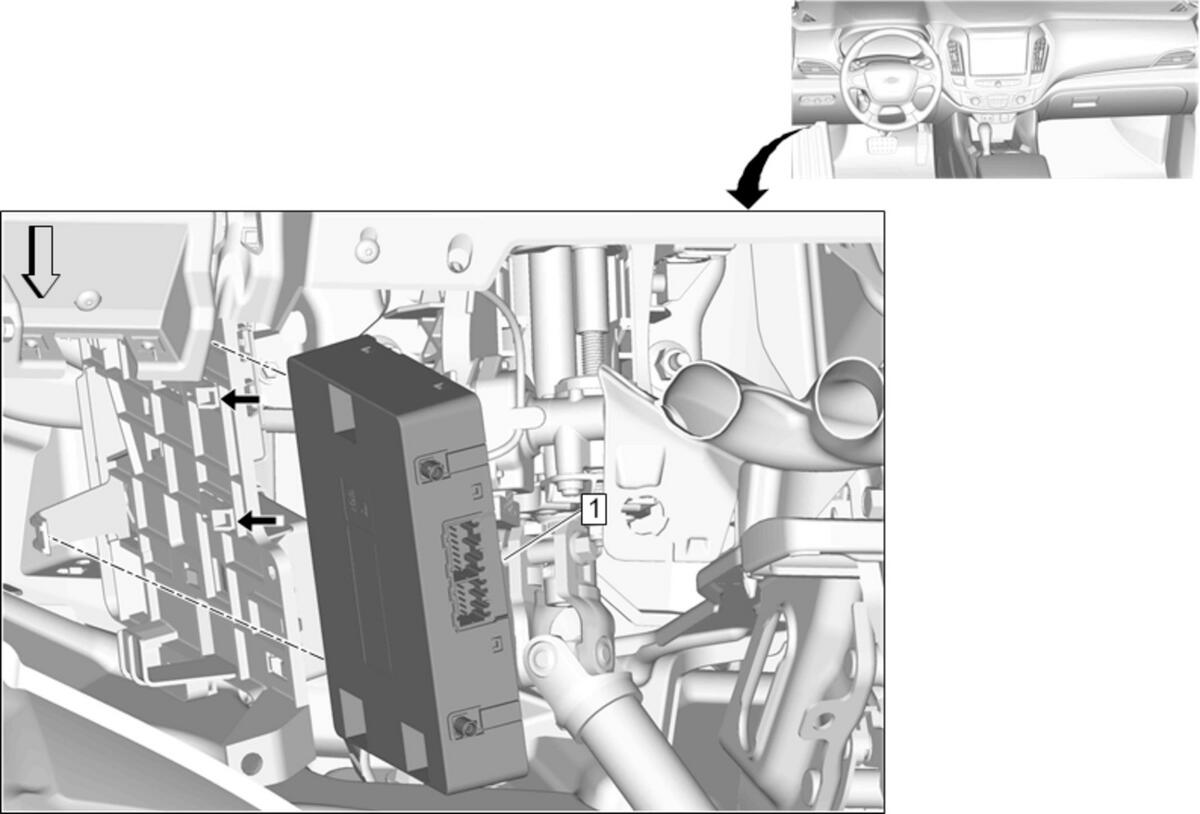

Communication Interface Module Replacement
Callout
Component Name
1
Communication Interface Module
Procedure
Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure:
Control Module References
