Wireless Charging System Module Replacement

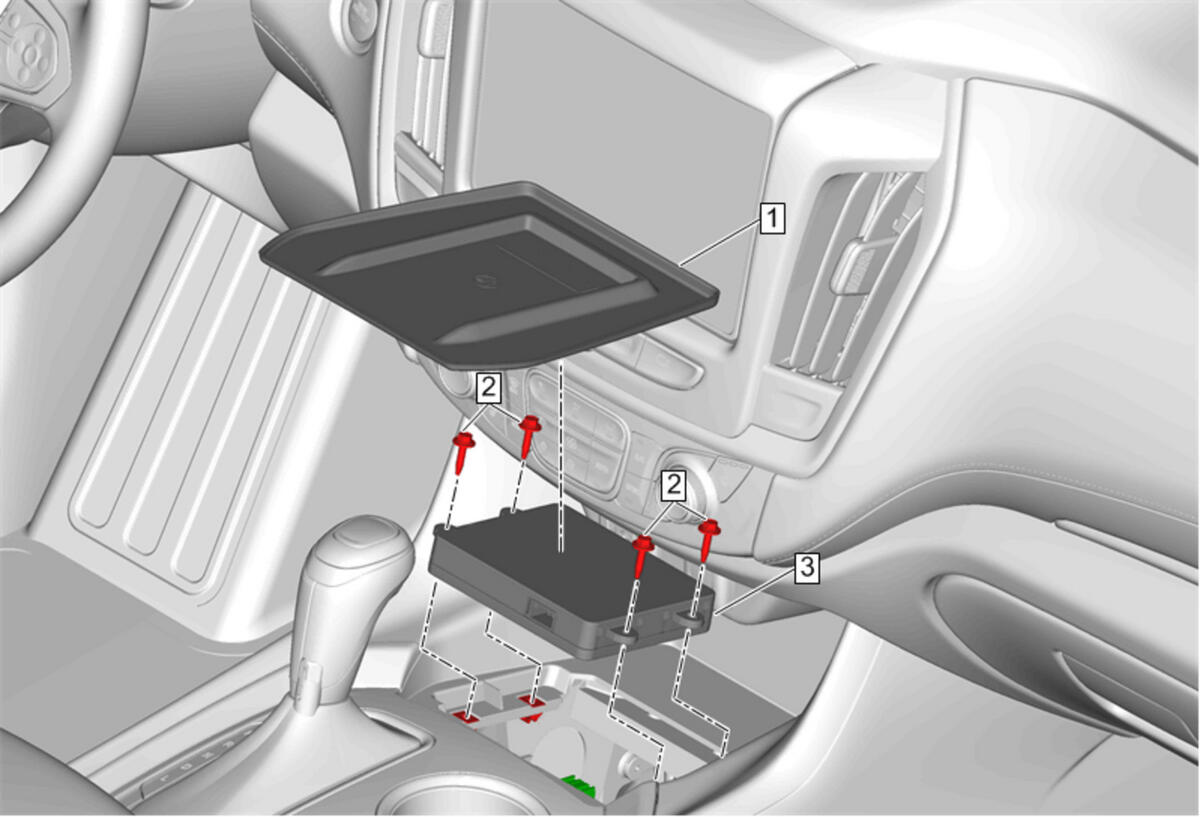

GM4750971
Callout Component Name
1 Front Floor Console Variable 1 Liner
2 Wireless Charging System Module Bolt [4x]
CAUTION:

Fastener Caution


Tighten
1 N.m (9 lb in)
3 Wireless Charging System Module
Procedure
Disconnect the electrical connector.
