Radio Bracket Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

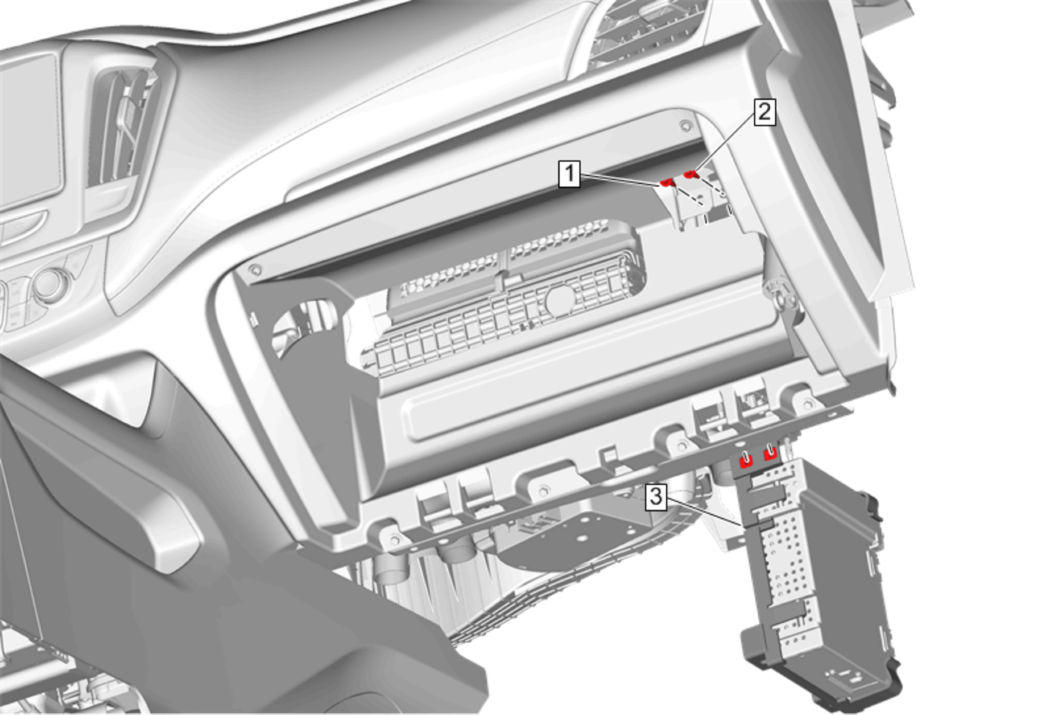

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Door Replacement Human Machine Interface Control Module Bypass Module Bracket Replacement
1	Radio Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Bolt Tighten 2.5 N.m (22 lb in)
3	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.
