Forward Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

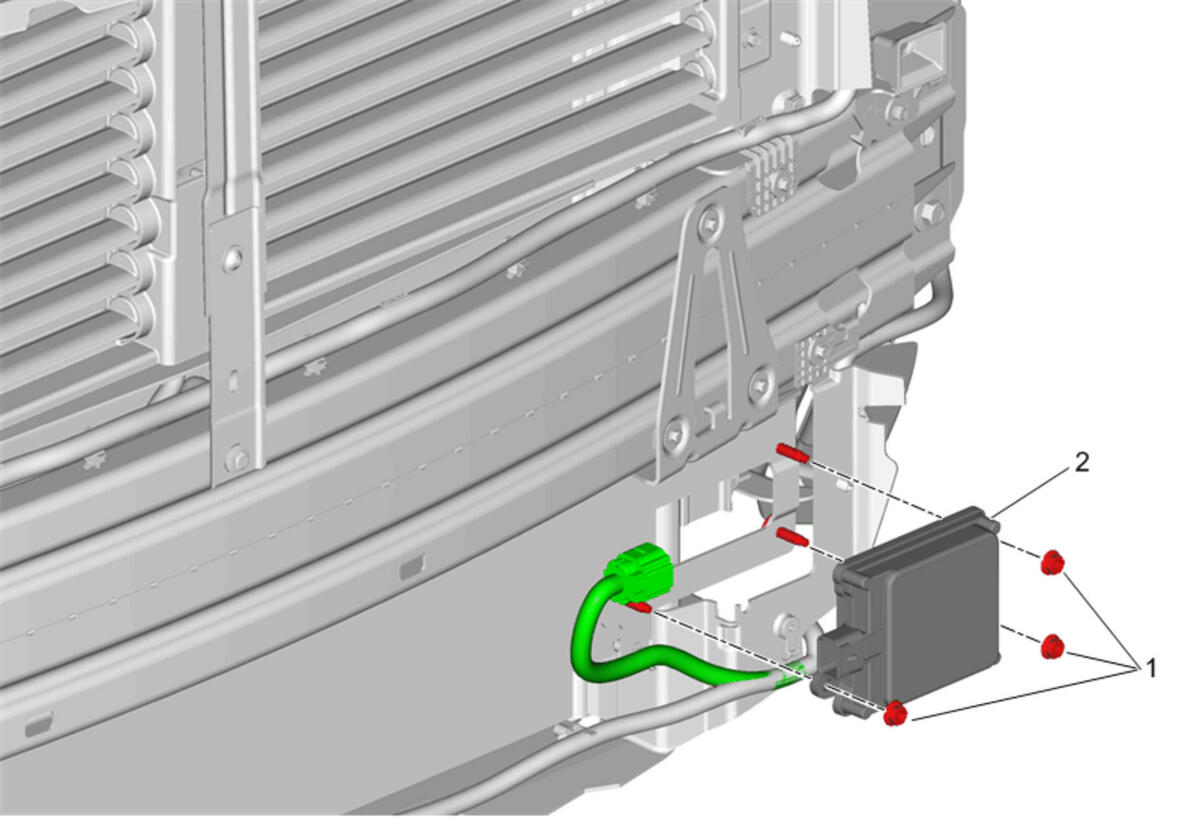

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (LTG) , or Front Bumper Fascia Replacement (LFY)
1	Forward Range Radar Sensor Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement (LTG) , or Front Bumper Fascia Replacement (LFY)

Forward Range Radar Sensor Nut [3x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
