Parking Assist Control Module Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

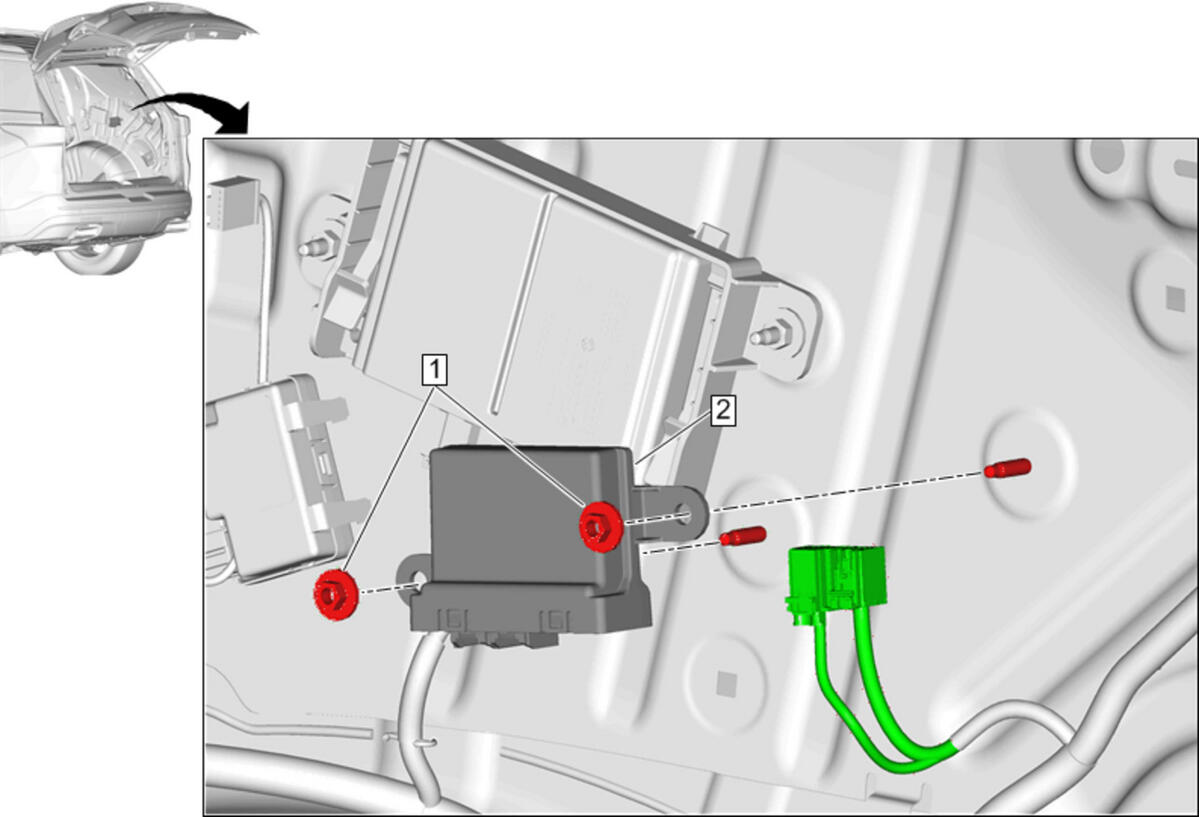

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side) |
|
| 1 | Parking Assist Alarm Control Module Nut [2x]
CAUTION:
Tighten 4.5N.m (40 lb in) |
| 2 | Parking Assist Control Module Procedure
|
