3rd Row Center Seat Belt Retractor Replacement

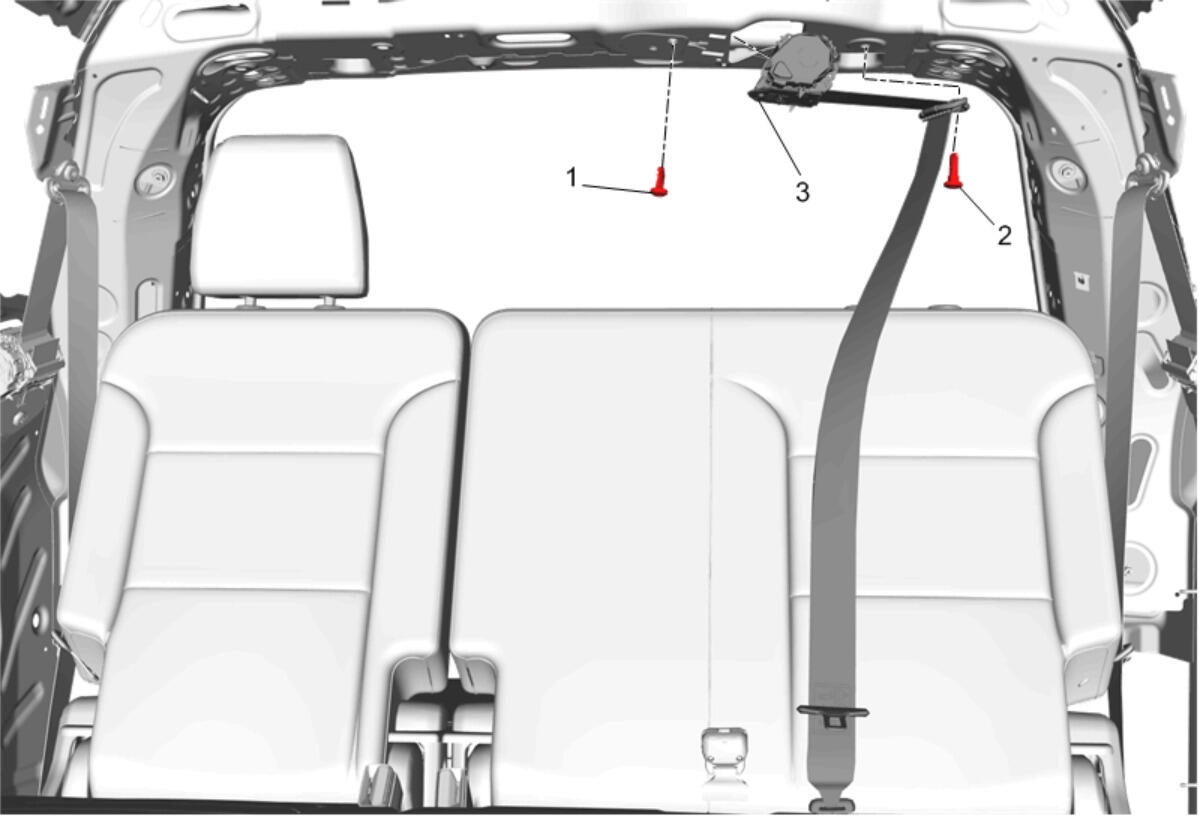

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the headliner. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U) |
|
| 1 | 3rd Row Seat Belt Guide Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | 3rd Row Seat Belt Retractor Bolt Tighten 45 N.m (33 lb ft) |
| 3 | 3rd Row Center Seat Belt Retractor Procedure Release the mini buckle. |
