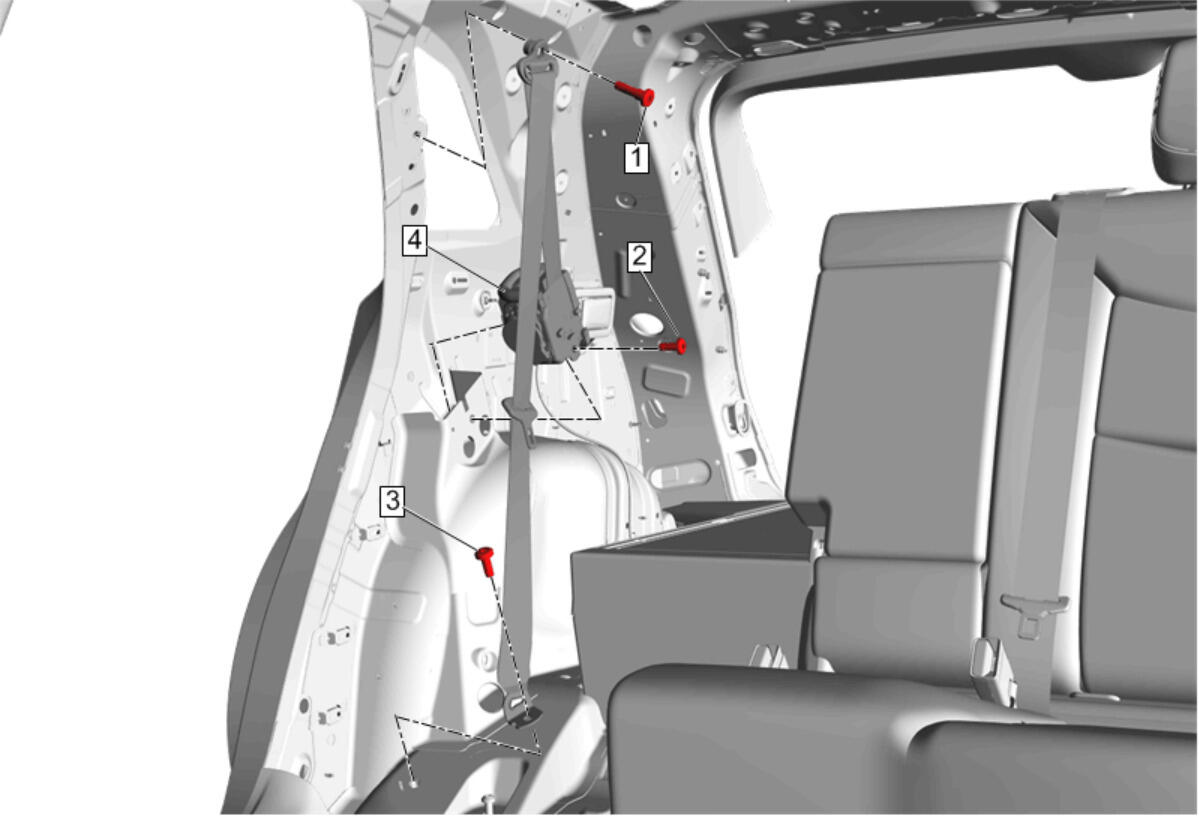

Rear Seat Belt Retractor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side) |
|
| 1 | Rear Seat Belt Upper Guide Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt Retractor Bolt Tighten 45 N.m (33 lb ft) |
| 3 | Rear Seat Belt Anchor Bolt Tighten 45 N.m (33 lb ft) |
| 4 | Rear Seat Belt Retractor |
