Low Frequency Instrument Panel Antenna Replacement

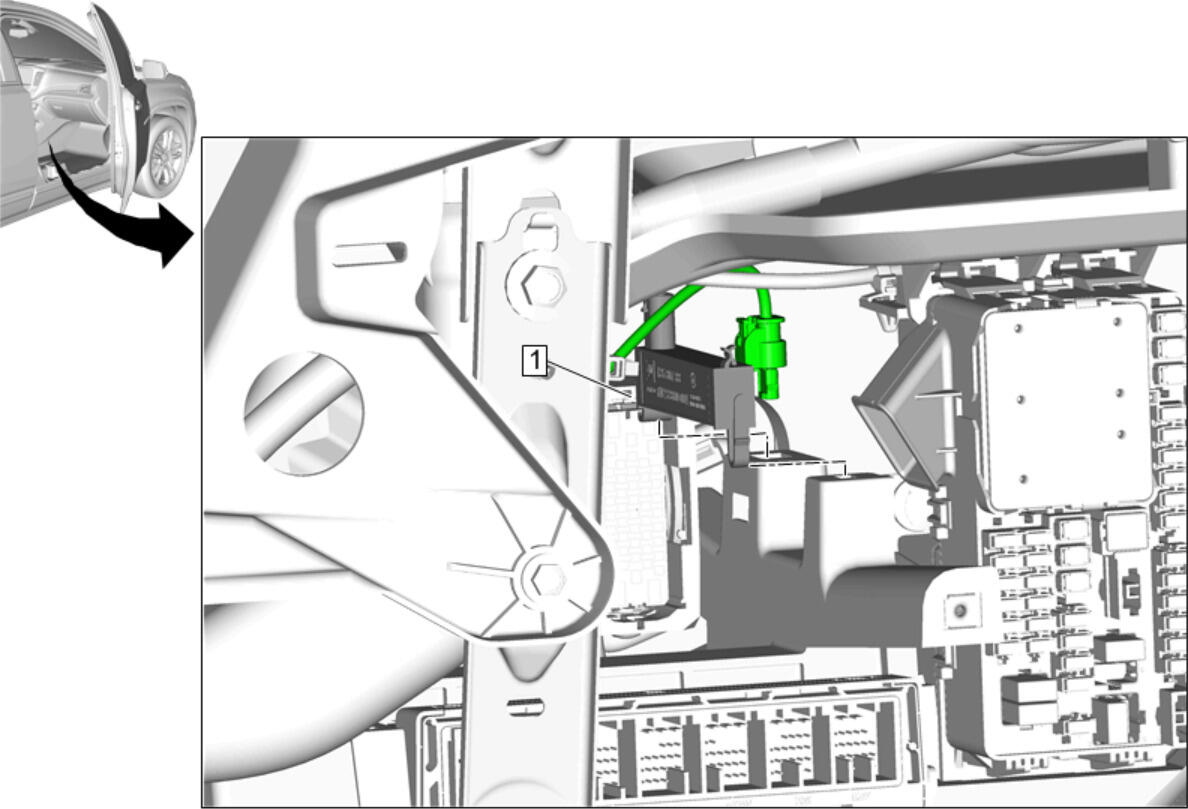

GM4757700
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Right Side
1 Low Frequency Instrument Panel Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
