Ignition Lock Key Transmitter Antenna Bracket Replacement

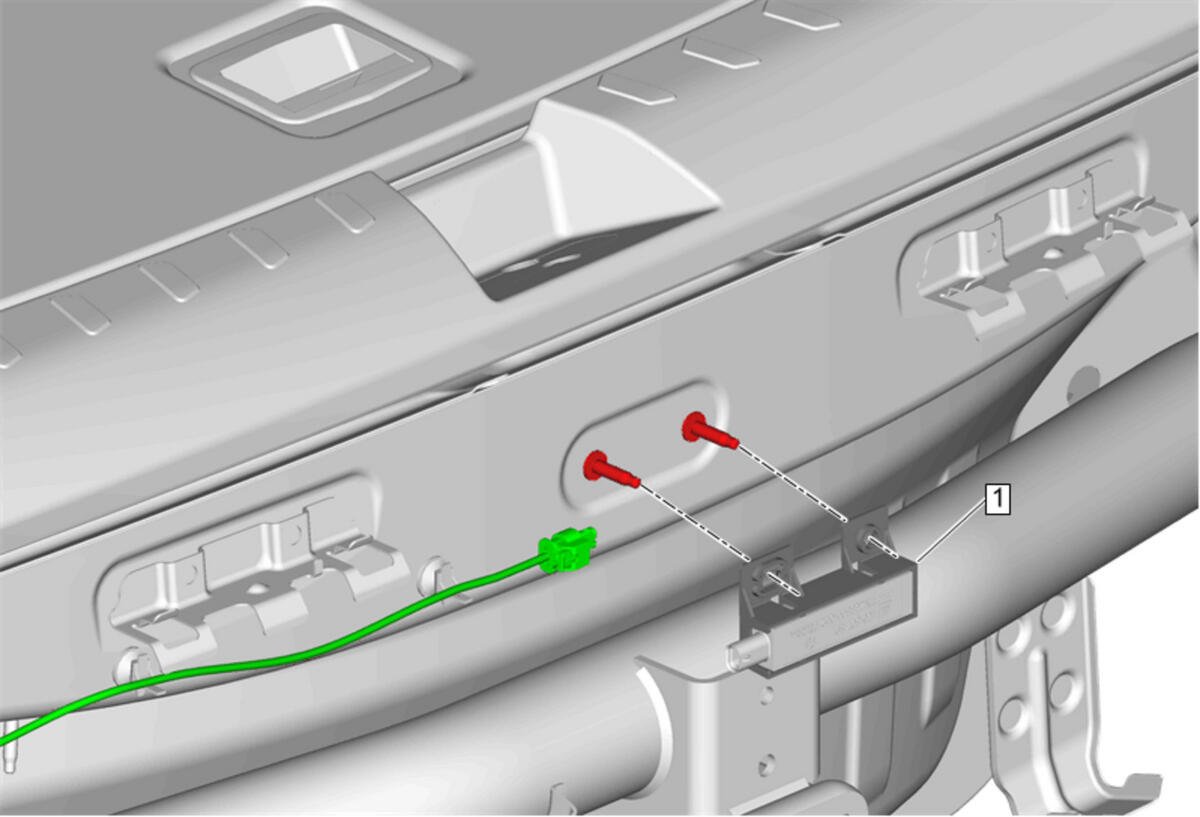

GM4769915
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement
1 Ignition Lock Key Transmitter Antenna Bracket

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
