Pickup Box Endgate Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

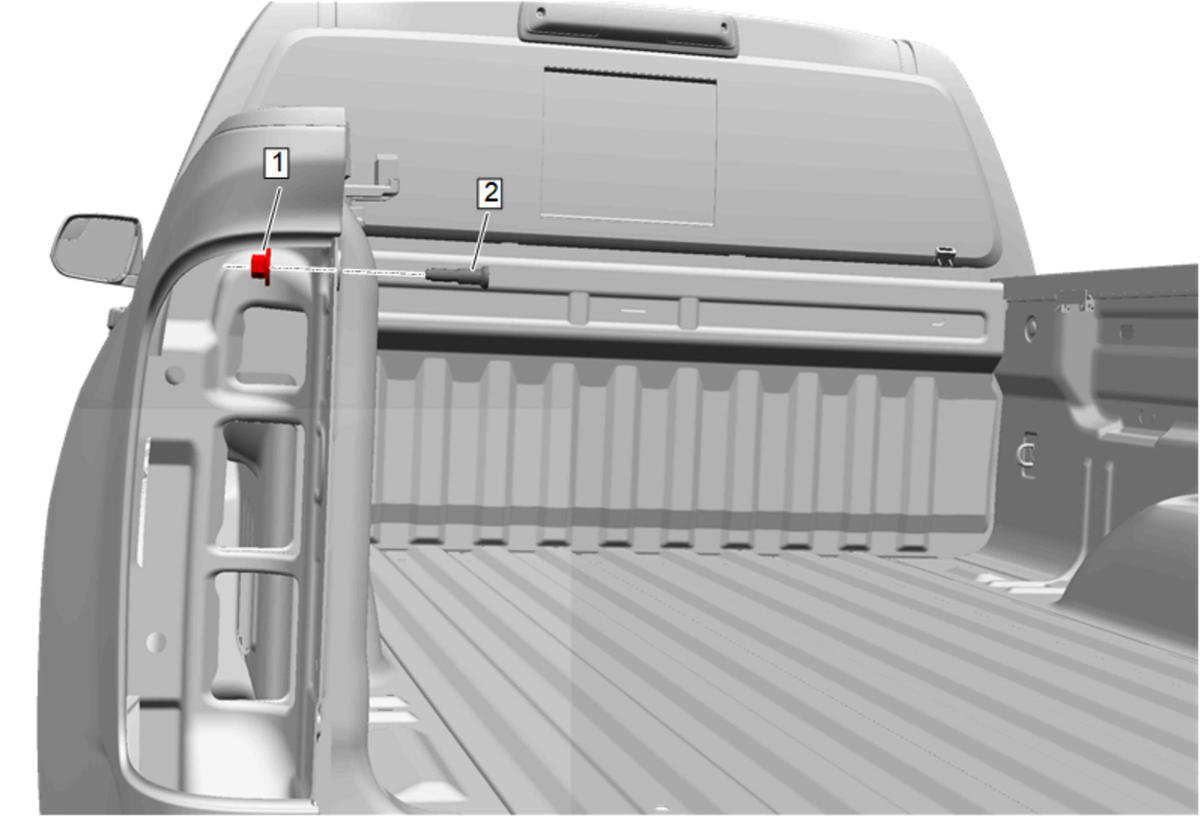

Callout	Component Name
Preliminary Procedures Use a grease pencil to mark the location of the striker before removal to aid in installation. Rear Body Structure Stop Lamp Replacement (Chevrolet)Rear Body Structure Stop Lamp Replacement (GMC)
1	Pickup Box Endgate Striker Nut CAUTION: Refer to Fastener Caution . Tighten 40N.m (30 lb ft)
2	Pickup Box Endgate Striker Procedure After installation, adjust endgate for proper fit.

Callout

Component Name

Preliminary Procedures

Pickup Box Endgate Striker Nut

CAUTION:

Tighten
40N.m (30 lb ft)

Pickup Box Endgate Striker
Procedure
After installation, adjust endgate for proper fit.
