Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

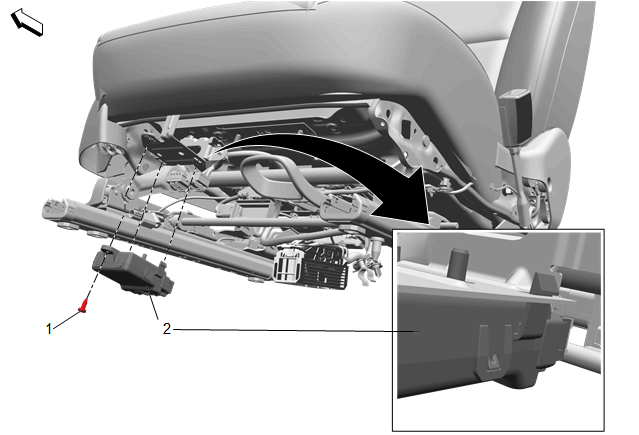

Callout	Component Name
1	Front Seat Heater Control Module Bolt CAUTION: Refer to: Fastener Caution . Procedure Move the front seat full backward. Move the front seat in upper position. Disconnect the battery negative cable. Disconnect all electrical connectors. Tighten 2.5 N.m (22 lb in) NOTE: The front seat heater control module is located at the passenger side.
2	Front Seat Heater Control Module Procedure Release the plastic retaining tabs.

Callout

Component Name

Front Seat Heater Control Module Bolt

CAUTION:

Procedure

Tighten
2.5 N.m (22 lb in)

NOTE:

The front seat heater control module is located at the passenger side.

Front Seat Heater Control Module
Procedure
Release the plastic retaining tabs.
